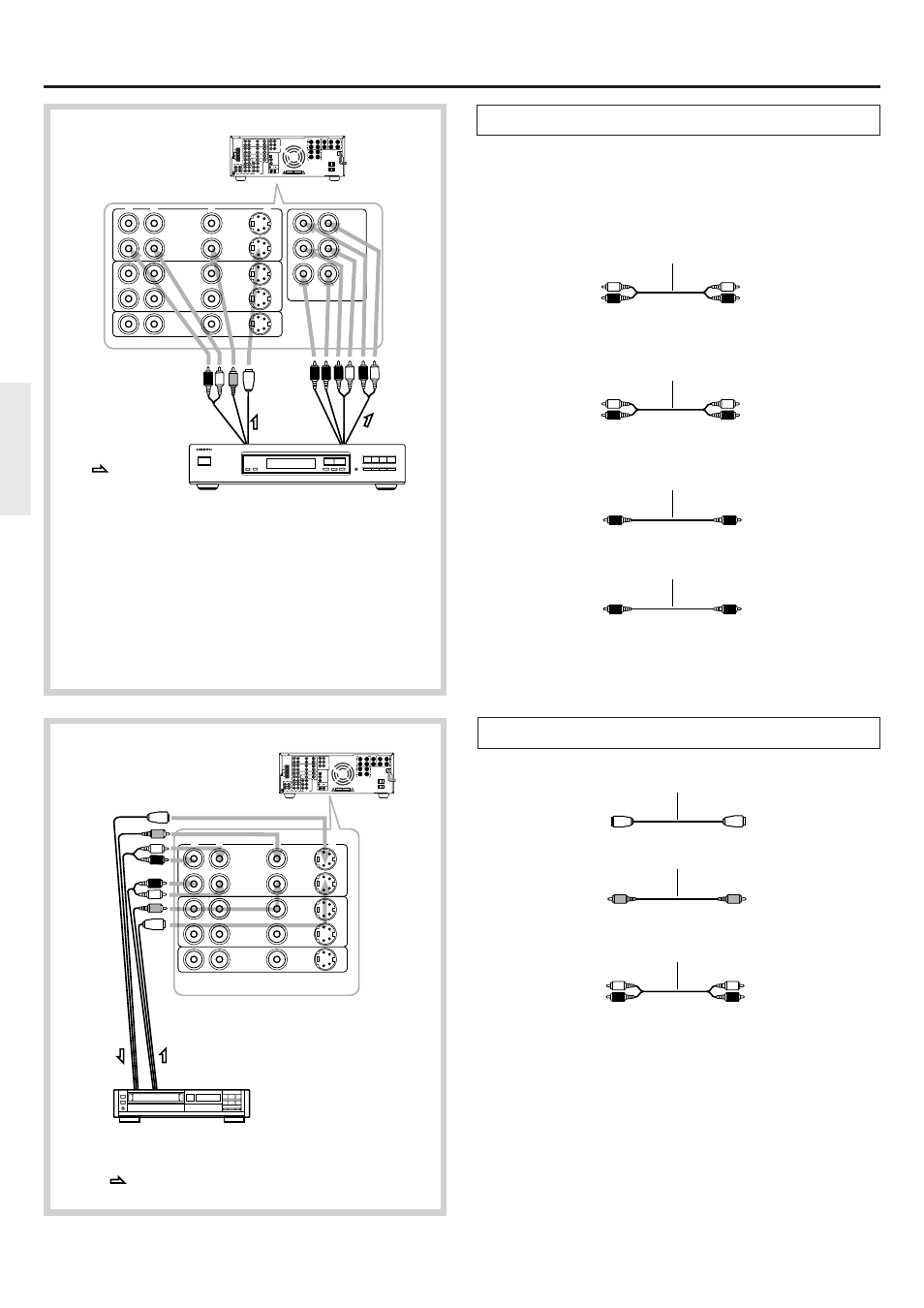

Connection
5
Connecting a decoder with 5.1-channel output
The TX-DS656's MULTI CHANNEL INPUT jacks can be used to
connect a decoder equipped with 5.1-ch audio output (dts decoder,
MPEG decoder, etc.). If you do so, use the V or S IN jack of the
VIDEO-1/2/3 or DVD connector to connect the video or S-video
connection cable.
6
Connecting video recording equipment
Connect your video cassette recorder to the VIDEO-1/VIDEO-2 OUT jacks.
Note:
The Surround function cannot be used if audio signals are input from
the MULTI CHANNEL INPUT connector.
S-Video connection cable
To source's S-Video
input jack
To receiver's VIDEO-
1/2 S OUT jack
Video connection cable
To source's Video
input jack
To receiver's VIDEO-
1/2 V OUT jack
Audio connection cable
(White)
(Red)
(White)
(Red)
To source's Left
audio input jack
To source's Right
audio input jack
To receiver's VIDEO-
1/2 L OUT jack
To receiver's VIDEO-
1/2 R OUT jack
(Yellow)
(Yellow)
TX-DS656
Decoder with 5.1-ch output
OUT
MJ
27122482
ANTENNA
AM
R
V
L
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
TAPE-1
TAPE-2
DVD
OUT
IN
OUT
R
L
R
L
PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R
L
CENTER SUBWOOFER
SURROUND
FRONT
R
L
R
L
V
PRE OUT
FRONT
R
L
R
L
DIGITAL INPUT
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
OUT
IN
REMOTE CONTROL
R
L
AC OUTLETS
MONITOR
OUTPUT
SURROUND
CENTER
SUBWOOFER
DIGITAL 3
(COAXIAL)
S
MULTI
CHANNEL
INPUT
L
R
R
L
S
IN
SURROUND SPEAKERS
FRONT
SPEAKERS
MAIN
CENTER
SPEAKER
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM
75
FM
300
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. / SPEAKER
FRONT
R
R
L
SURROUND
CENTER
SUBWOOFER
MULTI
CHANNEL
INPUT
L
R
V
L
OUT
IN
VIDEO-1
OUT
IN
OUT
IN
IN
IN
DVD
S
OUT
VIDEO-2
IN
OUT
: Signal flow
MJ
27122482
ANTENNA
AM
R
V
L
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
TAPE-1
TAPE-2
DVD
OUT
IN
OUT
R
L
R
L
PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R
L
CENTER SUBWOOFER
SURROUND
FRONT
R
L
R
L
V
PRE OUT
FRONT
R
L
R
L
DIGITAL INPUT
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
OUT
IN
REMOTE CONTROL
R
L
AC OUTLETS
MONITOR
OUTPUT
SURROUND
CENTER
SUBWOOFER
DIGITAL 3
(COAXIAL)
S
MULTI
CHANNEL
INPUT
L
R
R
L
S
IN
SURROUND SPEAKERS
FRONT
SPEAKERS
MAIN
CENTER
SPEAKER
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM
75
FM
300
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. / SPEAKER
L
R
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
DVD
S
V
TX-DS656
IN
OUT
Video cassette recorder
: Signal flow
Audio connection cable
(White)
(Red)
(White)
(Red)
To decoder's
multi-channel output
Left front jack
To receiver's MULTI
CHANNEL INPUT L
FRONT jack
To decoder's
multi-channel output
Right front jack
To receiver's MULTI
CHANNEL INPUT R
FRONT jack
Audio connection cable
(White)
(Red)
(White)
(Red)
To decoder's multi-
channel output Left
surround jack
To receiver's MULTI
CHANNEL INPUT L
SURROUND jack
To decoder's multi-
channel output Right
surround jack
To receiver's MULTI
CHANNEL INPUT R
SURROUND jack
Monaural audio cable
To decoder's
multi-channel output
Subwoofer jack
To receiver's MULTI
CHANNEL INPUT
SUBWOOFER jack
Monaural audio cable
To decoder's
multi-channel output
Center jack
To receiver's MULTI
CHANNEL INPUT
CENTER jack
Note:
When you connect a VCR, etc. to the VIDEO-2 R/L jacks, you must
turn the IPM function off. (See page 12.)
