Page 55
55

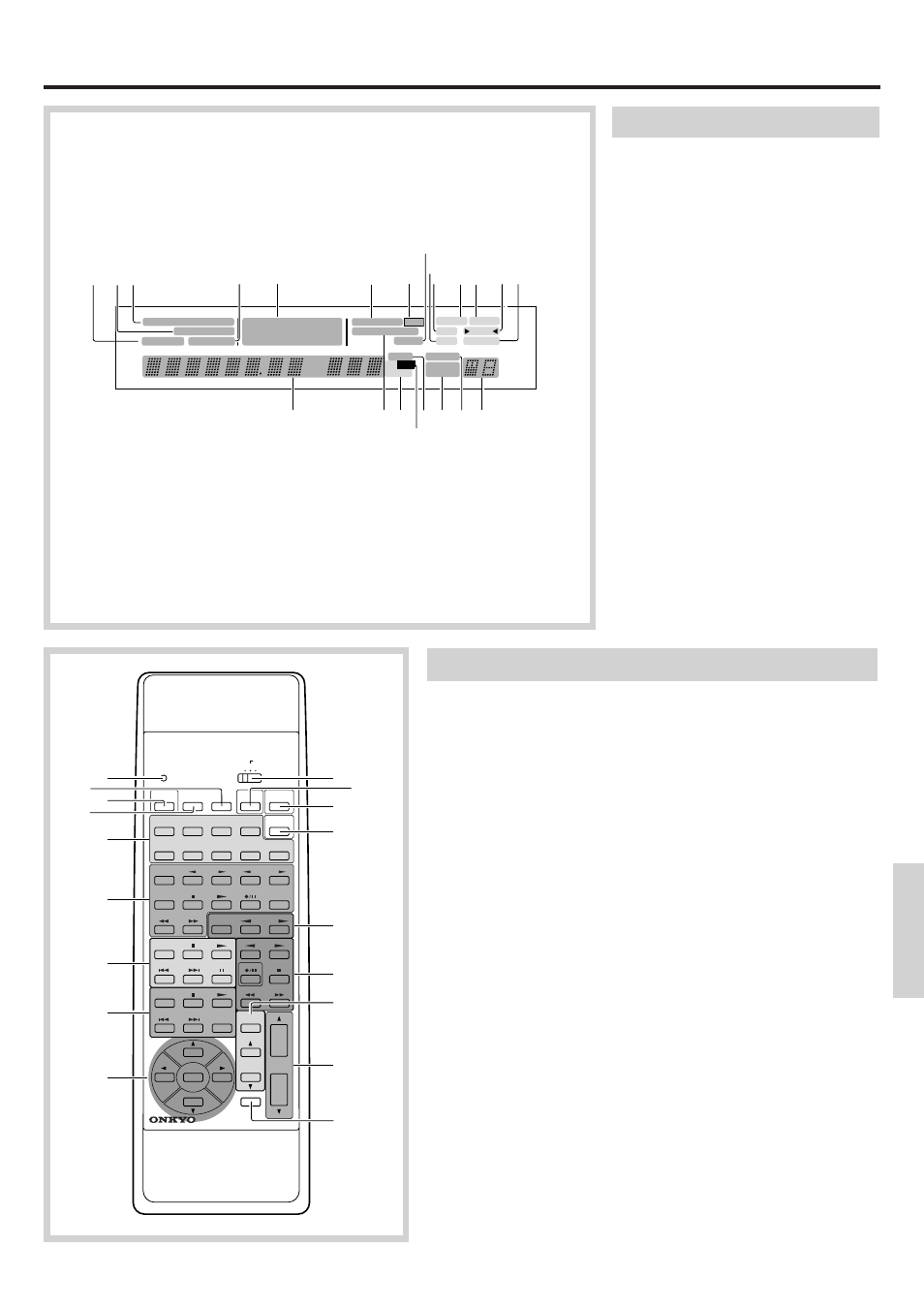

Remote controller
This remote controller can be used to operate Onkyo CD players, DVD players
and (double) cassette tape decks connected via the z remote control cables.
The buttons in the PROGRAMMABLE AREA TV/VIDEO section can be used to
store functions available with the remote controller of your TV and video equipment.
1. SENDING/LEARNED indicator [45]
2. DIMMER button [31]
3. POWER button [17, 45]
4. SLEEP button [31]
5. SOURCE SELECTOR buttons [28, 34, 48]
6. PROGRAMMABLE AREA TV/VIDEO buttons [45]
7. CD player operation buttons
These buttons are used to operate an ONKYO CD player that bears the z
terminal. (Refer to page 11 for z connection.)
8. DVD player operation buttons
These buttons are used to operate an ONKYO DVD player that bears the z
terminal. (Refer to page 11 for z connection.)
9. CURSOR buttons and ENTER button
[19, 20, 25, 29, 30, 34, 39, 42-44]
10. A/B-SUBROOM/LEARN selector switch [45, 48]
11. TEST TONE button [24]
12. SUR MODE (Surround mode) button [28, 39]
13. MULTI-CH INPUT (multi-channel input) button [29]
14. TUNER operation buttons [28, 34]
15. TAPE deck operation buttons
These buttons are used to operate an ONKYO cassette tape deck player that
bears the z terminal. (Refer to page 11 for z connection.)
16. CH-SEL and LEVEL y
y
y
y
y /u
u
u
u
u buttons [24]
17. VOLUME y
y
y
y
y /u
u
u
u
u buttons [26, 28, 29, 45, 48]
18. MUTING/REMOTE SPEAKER button [31, 48]
Display
Display
If a protective film on the surface of the display
makes it difficult to read the display, remove
the protective film.
a. VIDEO-1/2/3 source indicator
b. TAPE-2 MONITOR indicator
c. SPEAKERS MAIN/REMOTE indicator
d. DIGITAL 1/2/3 indicator
e. SURROUND MODE indicators
f.
CINEMA Re-EQ (Cinema Re-Equalizer)
indicator
g. 3-DB (3-D bass) indicator
h. MUTING indicator
i.
RDS indicator (European model only)
j.
AUTO (auto-tuning) indicator
k. FM MUTE indicator
l.
STEREO indicator
m. TUNED indicator
n. MEMORY indicator
o. Source display (for recording source/
Sub-room components)
p. REC OUT (Recording Out) indicator
q. MULTI-SOURCE indicator
r. SLEEP indicator
s.
IPM (Intelligent Power Management)
indicator
t.
Unit indicator
u. MIDNIGHT THEATER indicator
v. Multi-function display
Control positions and names
POWER
SLEEP
DVD
VIDEO-1
VIDEO-2
TAPE-1
TUNER
PHONO
C D
SOURCE SELECTOR
DVD
DISC
PAUSE
/ STEP
VOLUME
TONE
TEST
MODE
SUR
VIDEO-3
M TI-CH
UL
INPUT
TAPE-2
POWER
POWER
TAPE
C D
TV/ VCR
VOLUME
TUNER
MUTING
/ REMOTE
SPEAKER
CURSOR
ENTER
REMOTE CONTROLLER
CH SEL
SENDING/
LEARN
SUBROOM
C H
A B
LEVEL
DIMMER
PRESET
GROUP
LEARNED
PROGRAMMABLE AREA TV VIDEO
/
SUBTITLE
ON / OFF
RC-373M
1
5
6
7
8
9
3
2
4
10
12
13
14
15
17
18
11
16
SPEAKERS
V-DVD1 3
2
1 3
2
MAIN REMOTE
TAPE-2
DIGITAL
MONITOR
SURROUND MODE OFF HALL
CINEMA
MIDNIGHT THEATER
AUTO
TUNED
Re-EQ 3-DB
MUTING
SLEEP
REC OUT
MULTI-
dB
ch MIN
SOURCE
R D S
MEMORY
FM MUTE STEREO
DIGITAL STUDIO LIVE
3STEREO
kHz
MHz
ARENA
DOLBY
PRO LOGIC
IPM
d
e
a
b c
f
k l
g
h
i
j
n
m
o
q
t
u
p
s
r
v
