Renesas Emulator Debugger M16C PC4701 - Manual (Page 248)

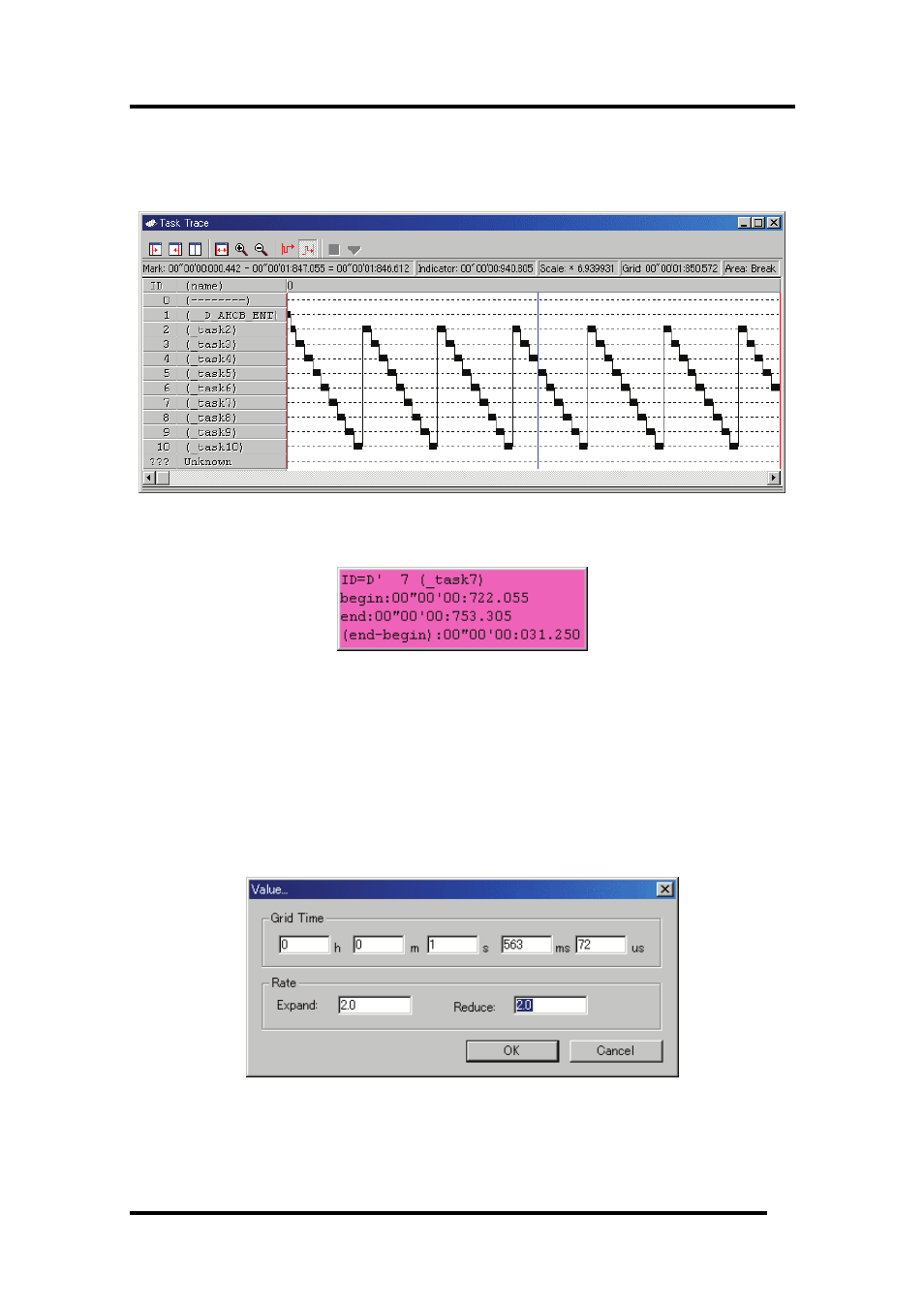

7.18.2.2 Refer the Execution History of Task
You can reference task trace transition in the Task Trace window.
By moving the mouse to the information displayed in the window, a window of the following example
is opened, showing the detailed information.
7.18.2.2.1. Change the display magnification
Click the Expand button or Reduce button in the tool bar. (Or, select [Expand] or [Reduce] from popup
menu by right-clicking on the window.)
The display is expanded or reduced using the left corner of the graph area as the radix point. By
default, the display is expanded or reduced with display scale of 1.5.
The display scale appears in the "Scale:*" field in the status bar.
The default expansion/reduction scale is 1.5. To change the scale, select [Value ...] from popup menu
by right-clicking on the window. The Value dialog is opened. Specify the display expansion/reduction
scale.
234
