Page 109

7 Windows/Dialogs

7.4.2 Refer to the Source Line/the Executed Address

It is possible to refer in the Editor(Source) Window or Memory Window.

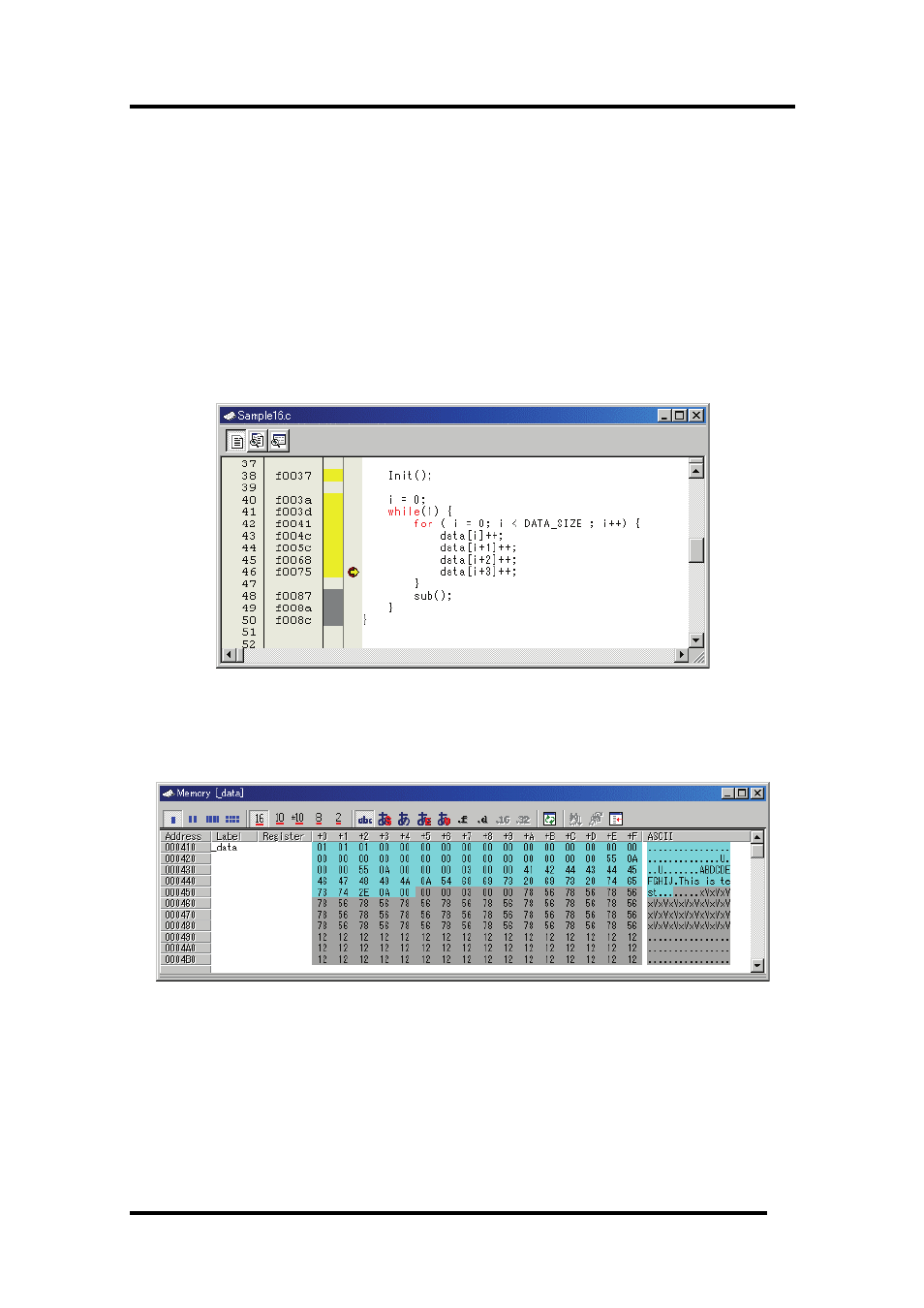

7.4.2.1 Refer in the Editor(Source) Window

In the Editor(Source) window, a display of Coverage Measurement is set to "Disable" by default.
To enable the display, check the [Coverage] check box in the dialog box opened by choosing the main
menu - [Edit] -> [Define Column Format]. The column for a coverage measurement display is
displayed on all Editor (Source) windows.
And select popup menu - [Columns] -> [Coverage] in the Editor (Source) window, A column can be set
up for each Editor (Source) windows.

7.4.2.2 Refer in the Memory Window

In the Memory window, a display of Coverage Measurement is set to "Disable" by default.
To enable the display, select popup menu - [Coverage] -> [On/Off] in the Memory window.
