7.18 Task Trace Window

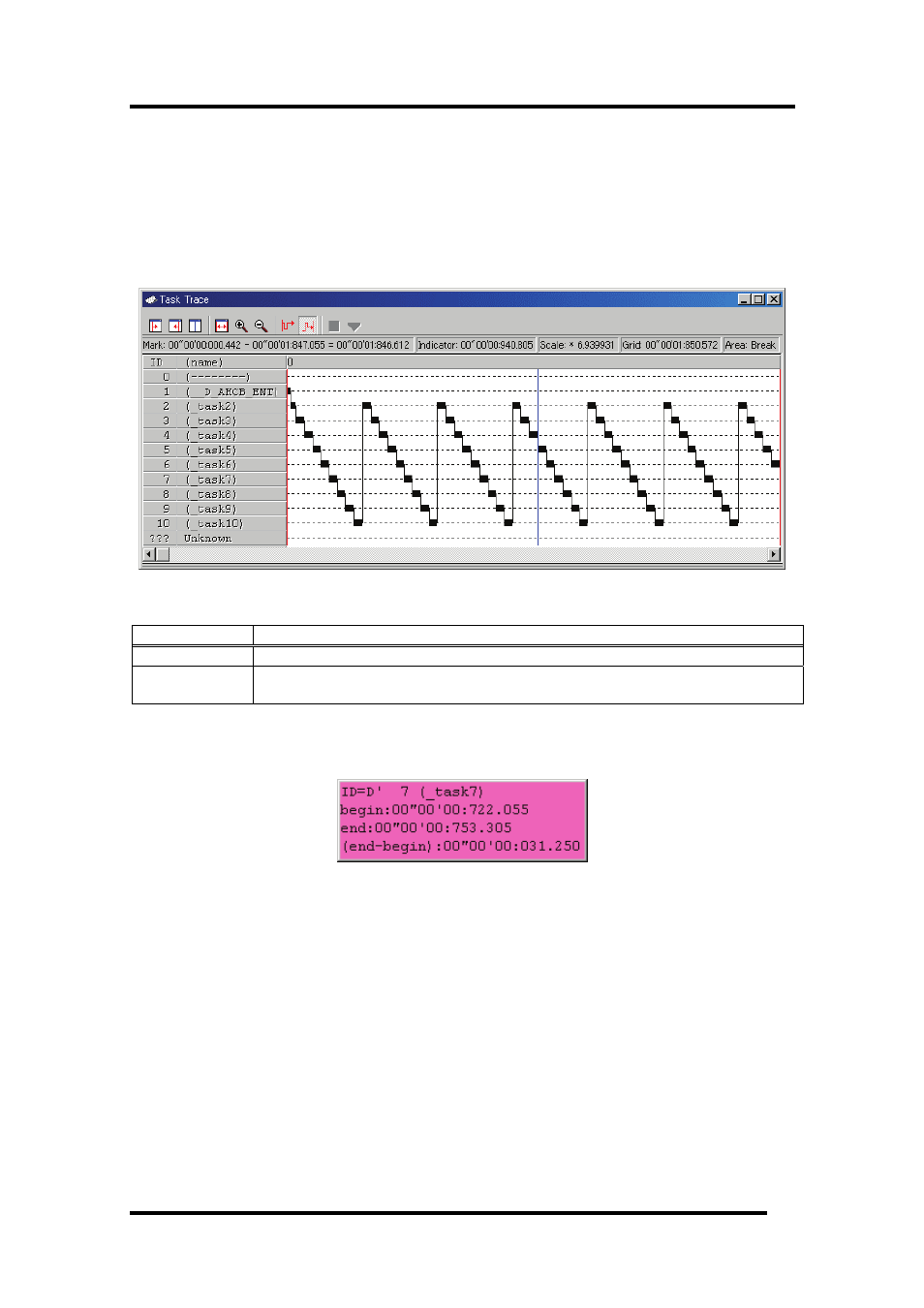

The Task Trace window measures the task execution history of a program using the real time OS and
display it graphically.
This window is available even when a target program using an OS other than our real time OS
(MRxx) is downloaded.
The content of each item is as follows.
Items Contents
ID
Indicates a task ID number.
(name)
Indicates an interrupt routine name, task name, idle processing (display "idle"),
and unknown name(displayed "unknown").
When moving the mouse to the information displayed in the window, the pop up window as below is
opened, showing the detailed information.
The following information is displayed in the status bar.
•
Time value at the start marker position
•
Time value at the end marker position
•
Time interval between the start marker and the end marker
•
Time value at the indicator position
•
Display scale
•
Time width at grid line interval
•
Measurement (trace) range
