7.11.2 Configuration of Disassemble Mode
When disassemble mode is selected while bus mode is unselected, trace information is displayed in

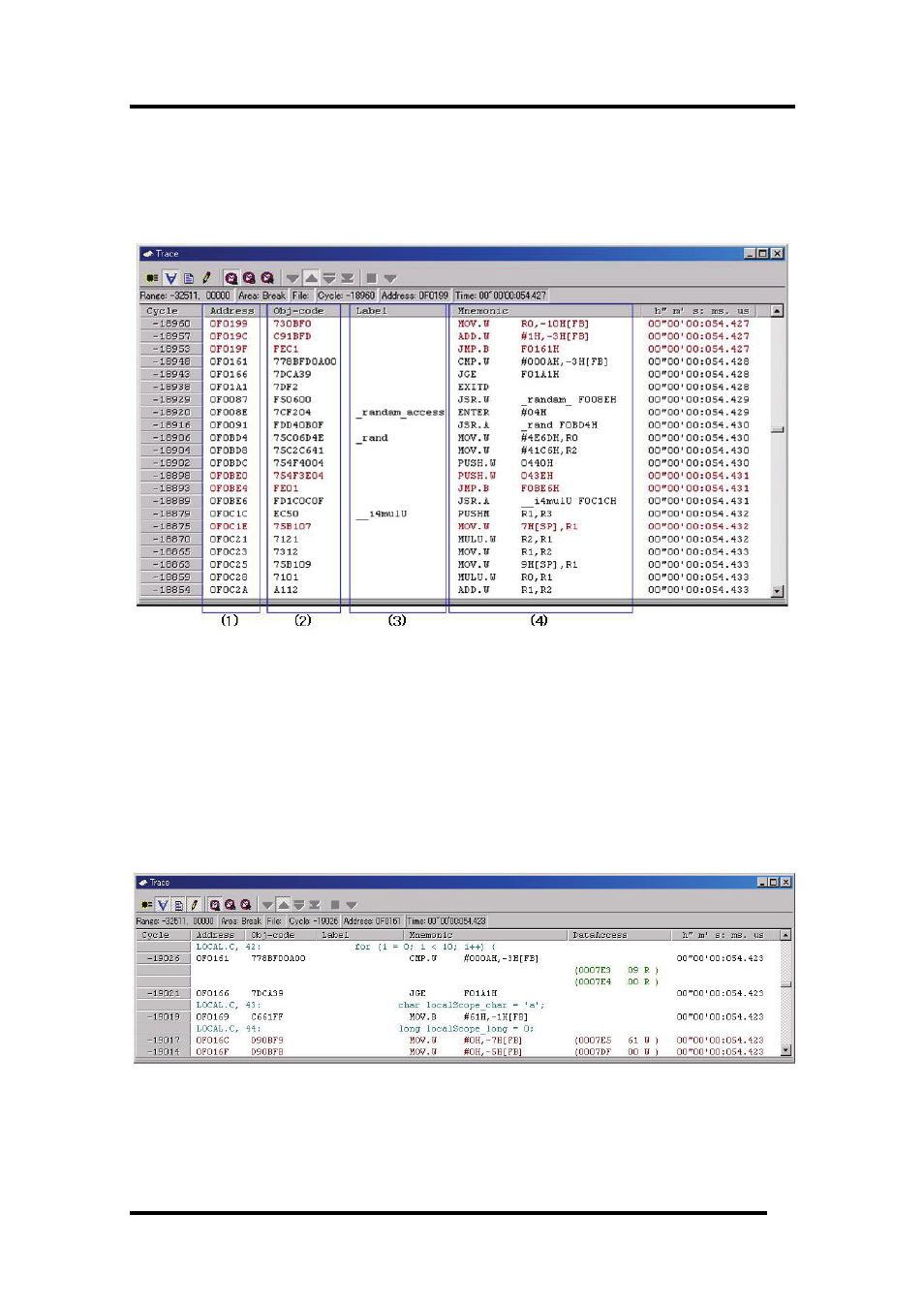

disassemble mode. Disassemble mode is configured as shown below.
1. Address display area: Shows addresses corresponding to instructions. Double-click here to bring
up a dialog box to search for addresses.
2.
Object code display area: Shows the object codes of instructions.
3. Label display area: Shows labels corresponding to instruction addresses. Double-click here to
bring up a dialog box to search for addresses.
4.
Mnemonic display area: Shows the mnemonics of instructions.
Other display areas are the same as in bus mode.
In addition to disassemble information, the window can display source line or data access information
in combination. In this case, the display will be similar to the one shown below.
172
