Installing and replacing a module 83

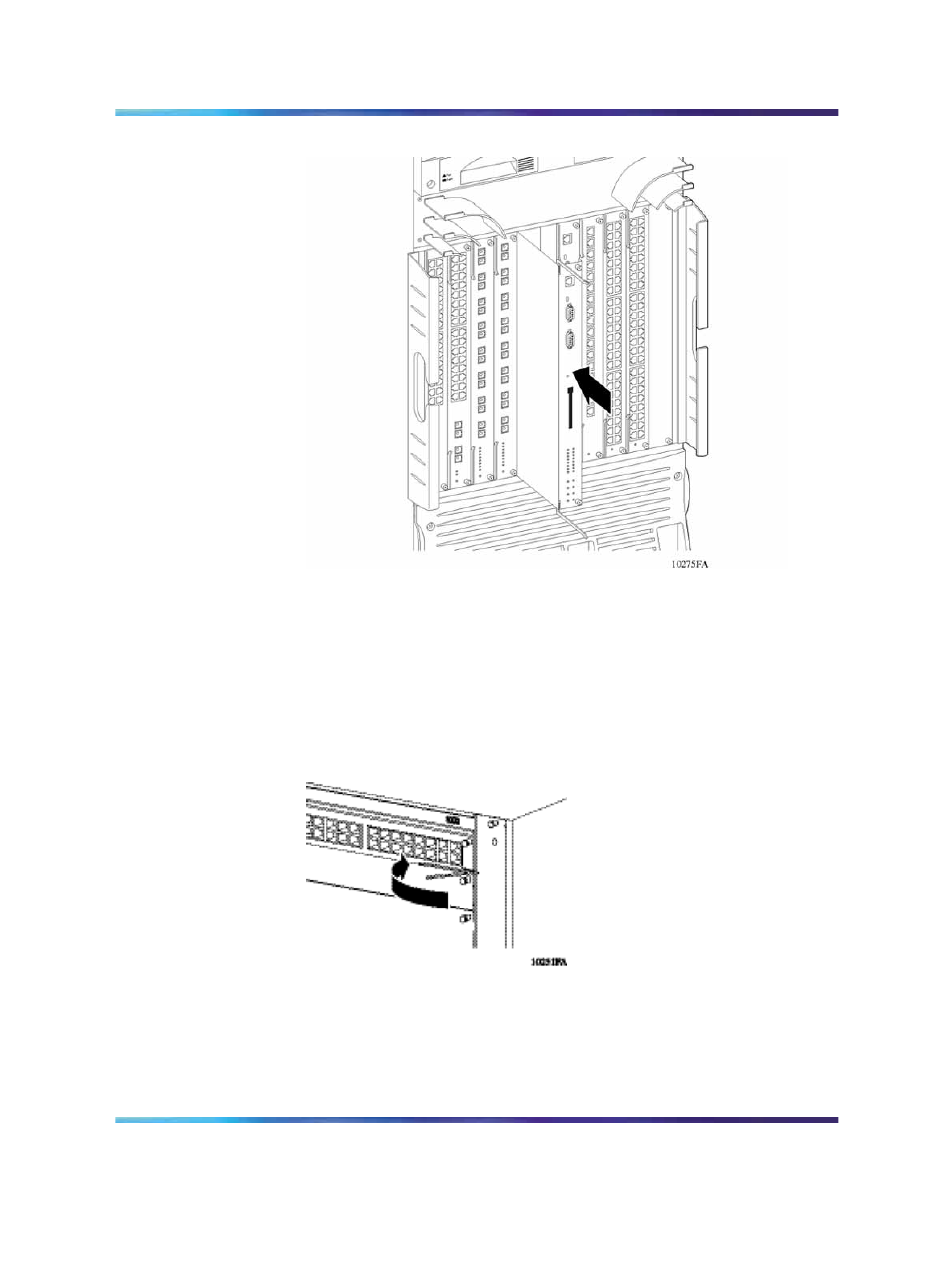

Installing a module: 8010co chassis
5 Slide the module into the chassis until its connector panel touches
the chassis back panel.
6 Rotate the insert/extract levers to seat the module backplane
connectors (
"Seating the backplane connectors: 8003, 8006, and
8010 chassis" (page 83) or "Seating the backplane connectors:
8010co chassis" (page 84) ).
Seating the backplane connectors: 8003, 8006, and 8010 chassis
Nortel Metro Ethernet Routing Switch 8600
Installation — Modules
NN46220-306 02.02 Standard
4.2 7 July 2008
Copyright © 2005-2007, Nortel Networks
.
