8683XZR module 61
R mode supports R modules only.
The 8683XLR module supports R and M mode. For specific R and M mode
configuration requirements, see
"R mode configuration requirements" (page
24) and "M mode configuration requirements" (page 23) .

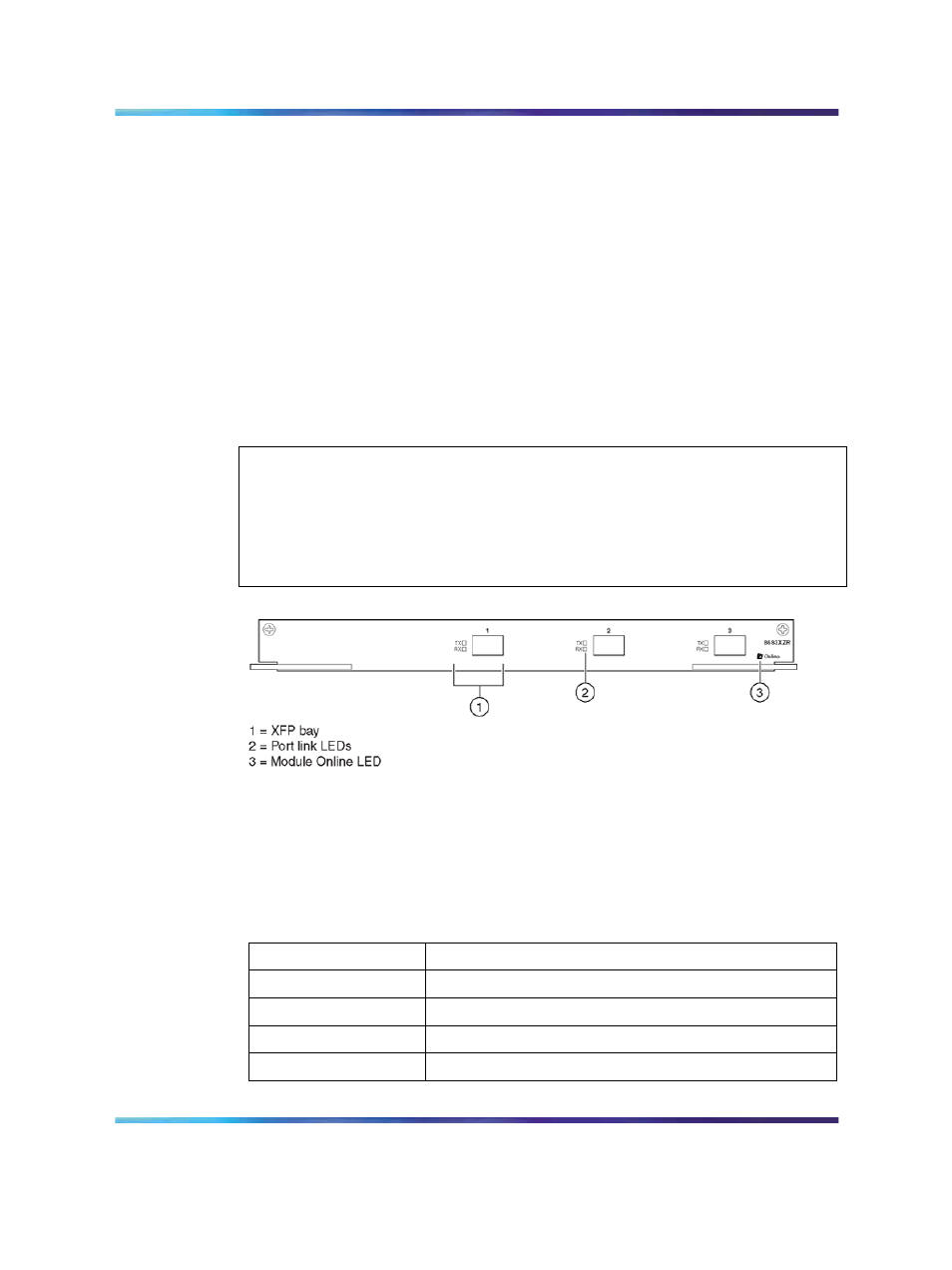

8683XZR module
The 868XZR module supports both LAN and WAN operation (10.3 Gb/s LAN
PHY and 9.9 Gb/s WAN PHY). The 8683XZR module (
"8683XZR module"
(page 61) ) provides three bays for installing 10 Gigabit Ethernet small form
factor pluggable (XFP) transceivers. The port operates in full-duplex mode.
The 8683XZR module includes three forwarding engine lanes. Each lane
supports 10 Gb/s bidirectional traffic. All three ports can run concurrently
at 10 Gb/s.
ATTENTION
Nortel recommends that you install only one 10GBaseZR/ZW on the 8683XLR
and 8683XZR due to cooling limitations. Nortel further recommends that you
install the XFP only in port 1. You can install a 10GBaseSR, -LR/LW, or -ER/EW
in one or both of the remaining ports.
8683XZR module
The 8683XZR module supports up to three 10 Gigabit Ethernet small form
factor pluggable (XFP) transceivers.
Nortel qualified the XFPs listed in "8683XZR qualified XFPs" (page 61) .
8683XZR qualified XFPs
XFP order number XFP type
AA1403005 10GBaseSR/SW
AA1403001 10GBaseLR/LW
AA1403003 10GBaseER/EW
AA1403006 10GBaseZR/ZW
