Only GBICs that Nortel qualified are supported for use in the 8632TXE and
8632TXM modules. GBICs that Nortel did not qualify may operate within
these modules, but have not been tested for power draw, electromagnetic
interference, and interoperability.
For more information about the GBICs and instructions for installing them,
see Nortel Installation — SFP, XFP, and GBIC Hardware Components
(NN46225-301).

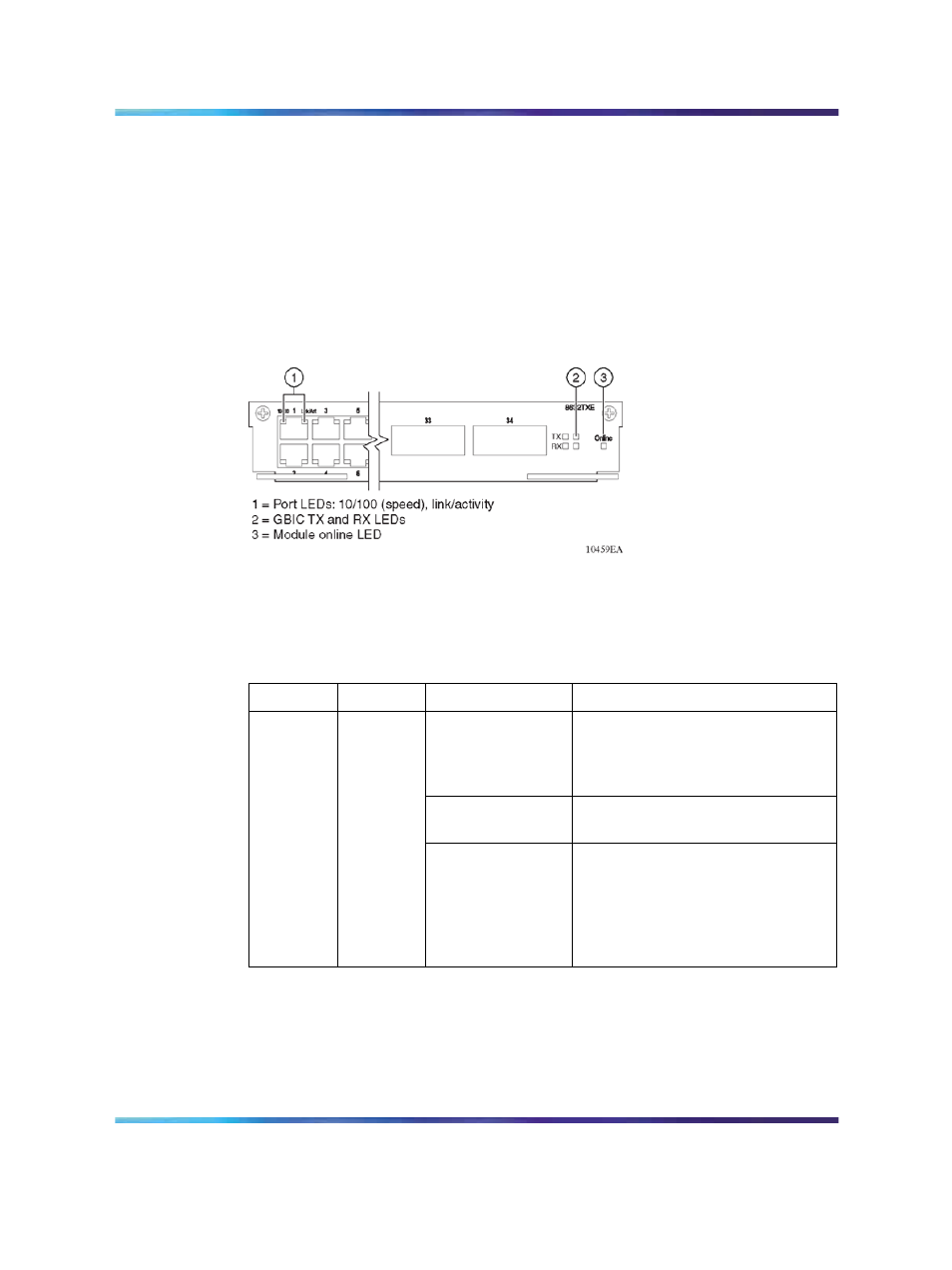

"8632TXE/8632TXM module LEDs" (page 42) shows the location of the
8632TXE and 8632TXM module LEDs.
8632TXE/8632TXM module LEDs
"8632TXE/8632TXM module LEDs" (page 42) describes the 8632TXE and
8632TXM module LEDs.
8632TXE/8632TXM module LEDs
Type Label Color/State Meaning
Green/Steady The module has completed its
power-on self-test and software
initialization and is operating
normally.
Amber/Steady The module failed its power-on
self-test.
Module Online
Off The switch power is off. If the
switch power is on, and the module
is performing its power-on self-test
and software initialization. A
module in this state is not yet
functional.
Nortel Metro Ethernet Routing Switch 8600
Installation — Modules
NN46220-306 02.02 Standard
4.2 7 July 2008
