8683XLR module 59
XFP order number XFP type
AA1403003 10GBaseER
AA1403006 10GBaseZR

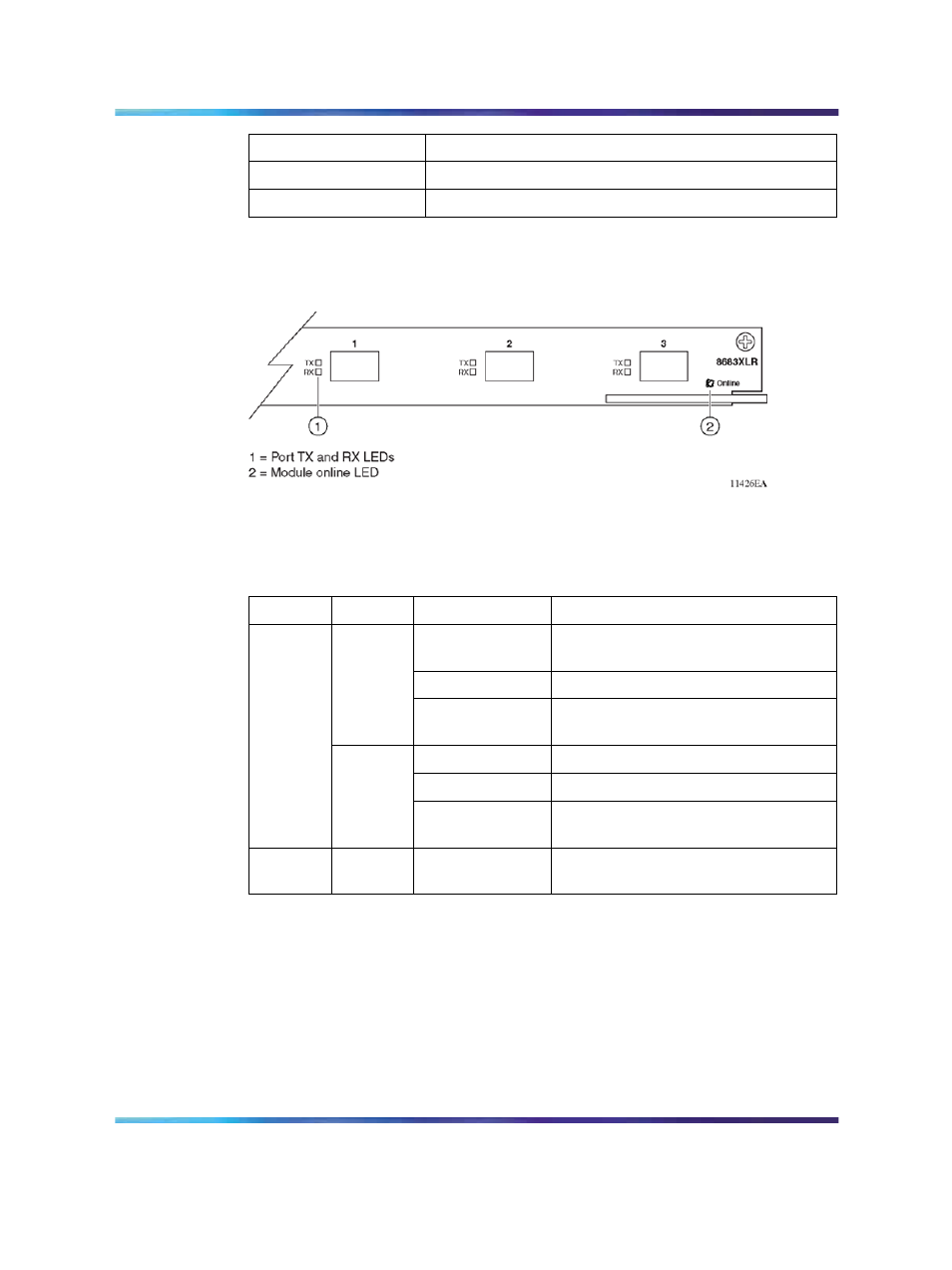

"8683XLR module LEDs" (page 59) shows the location of the 8683XLR
module LEDs.
8683XLR module LEDs
"8683XLR module LEDs" (page 59) describes the 8683XLR module LEDs.
8683XLR module LEDs
Type Label Color/State Meaning
Green/Steady The port is enabled but not transmitting
data.
Green/Blinking The port is transmitting data.
TX
Off The cable is disconnected or the link
is down.
Green/Steady The port has a link and is enabled.
Green/Blinking The port is receiving data.
Port
RX
Off The cable is disconnected or the link
is down.
TX & RX Both Blinking
Green The port is disabled.
