Connection to TXD and RXD signals and GND is sufficient for the console
serial port to fully function. The Console port does not support any inbound
flow control; that is, the port does not toggle control lines to indicate an input
buffer full condition.
"Pin assignments: 8692omSF module Console port" (page 133)
lists the pin
assignments for the Console port for both the DTE and DCE settings.

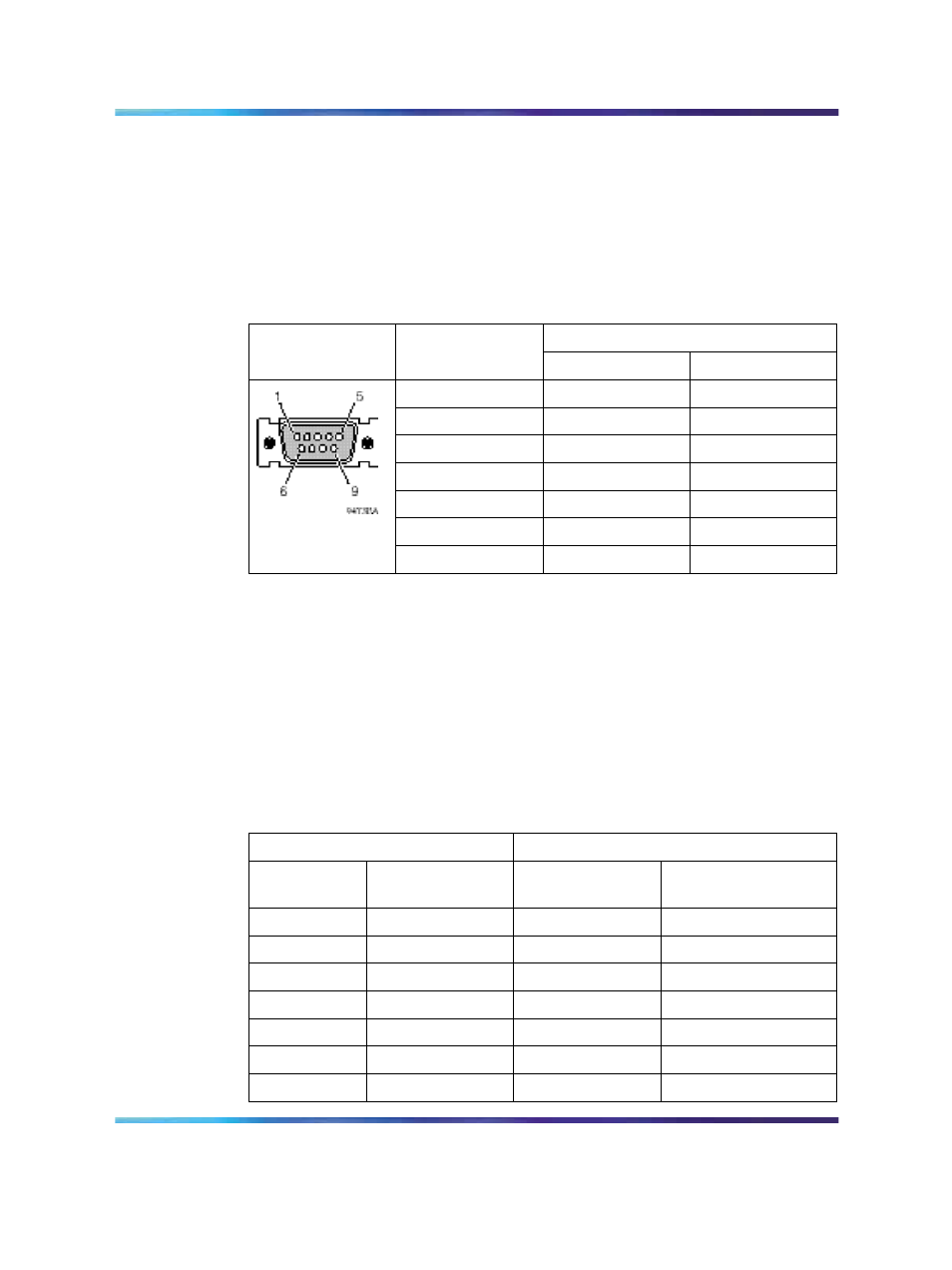

Pin assignments: 8692omSF module Console port
Switch position
Connector
Pin number
DCE (left)
DTE right)
2
TXD (Output)
RXD (Input)
3
RXD (Input)
TXD (Output)
4
DSR (Input)
DTR (Output)
5
GND
GND
6
DTR (Output)
DSR (Input)
7
CTS (Input)
RTS (Output)
8
RTS (Output)
CTS (Input)
Modem serial port
The Modem serial port is implemented on a DB-9 connector wired as a
DTE connection.
To set up modem access, you need a DTE-to-DCE cable ( straight or
transmit cable) between the Modem port and a modem or terminal server.
"Pin assignments: DTE to DCE" (page 133)
describes the required cable
pin assignments.
Pin assignments: DTE to DCE
Switch
Modem
Signal
Pin number
DCE DB-9
pin number
DCE DB-25
pin number
RXD
2
2
3
TXD
3
3
2
DTR
4
4
20
GND
5
5
7
DSR
6
6
6
RTS
7
7
4
CTS
8
8
5
