Installing the jumper on an ESM 8668 139

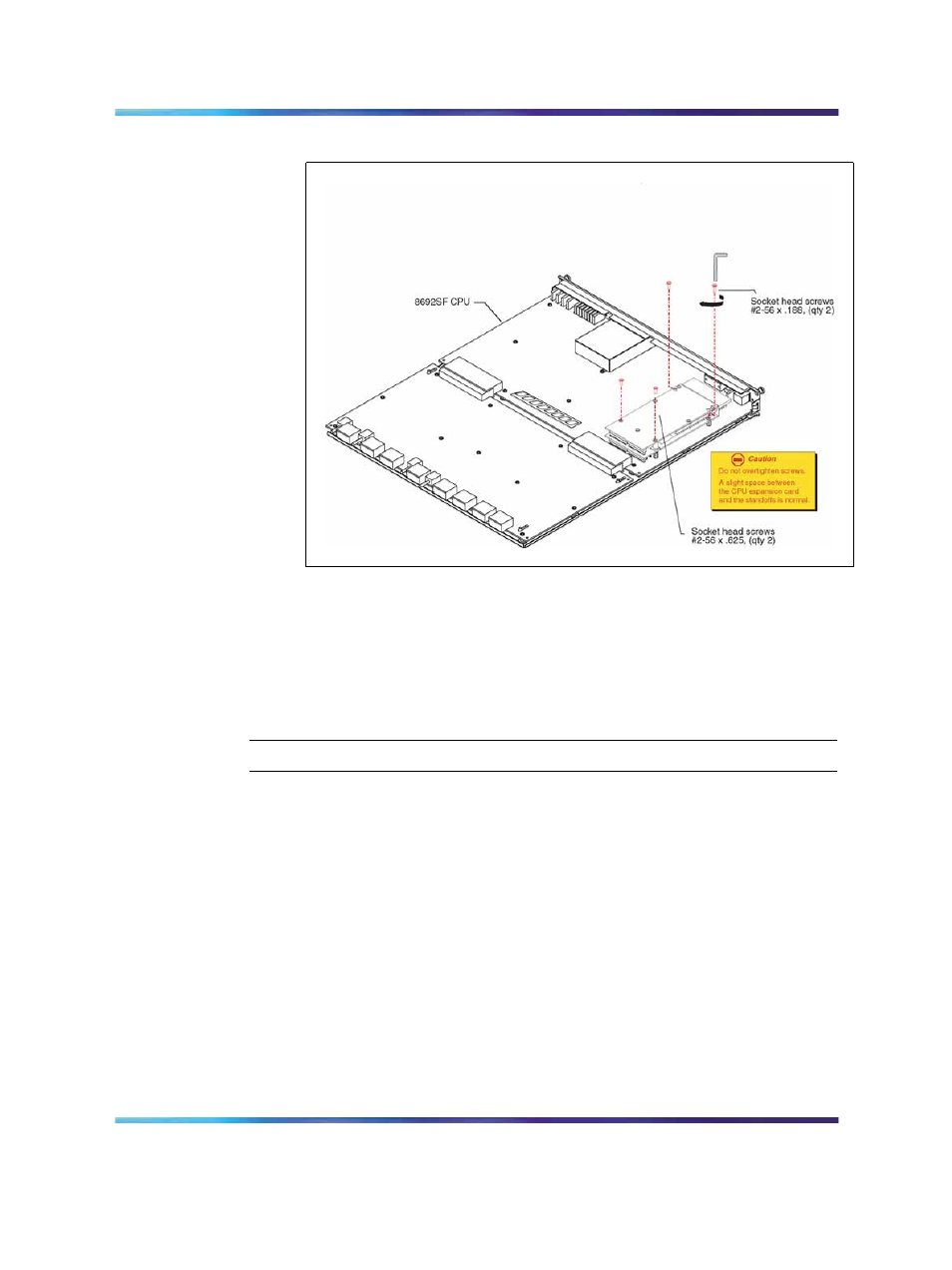

Securing the daughter card to the 8692 Series CPU
8 Replace the 8692 Series CPU (with the newly installed daughter
card attached) into the vacant chassis slot (see
"Installing and
replacing a module" (page 75) ).
After you replace the 8692 Series CPU into the chassis, see the
appropriate chassis and component installation guide to power up
the chassis and verify a successful installation.
—End—
Installing the jumper on an ESM 8668
Install a jumper on the Metro Ethernet Services Module (Metro ESM 8668)
to ensure that the ESM 8668 boots successfully when a SuperMezz is
installed.
All ESM 8668 boards in your chassis must have a jumper installed.
Prerequisites
• Have the jumpers ready to install. You can order jumpers from Nortel
with the MERS 8600 ESM Jumper Kit (DS1411033-E6).
