36 Metro Ethernet Routing Switch 8600 modules

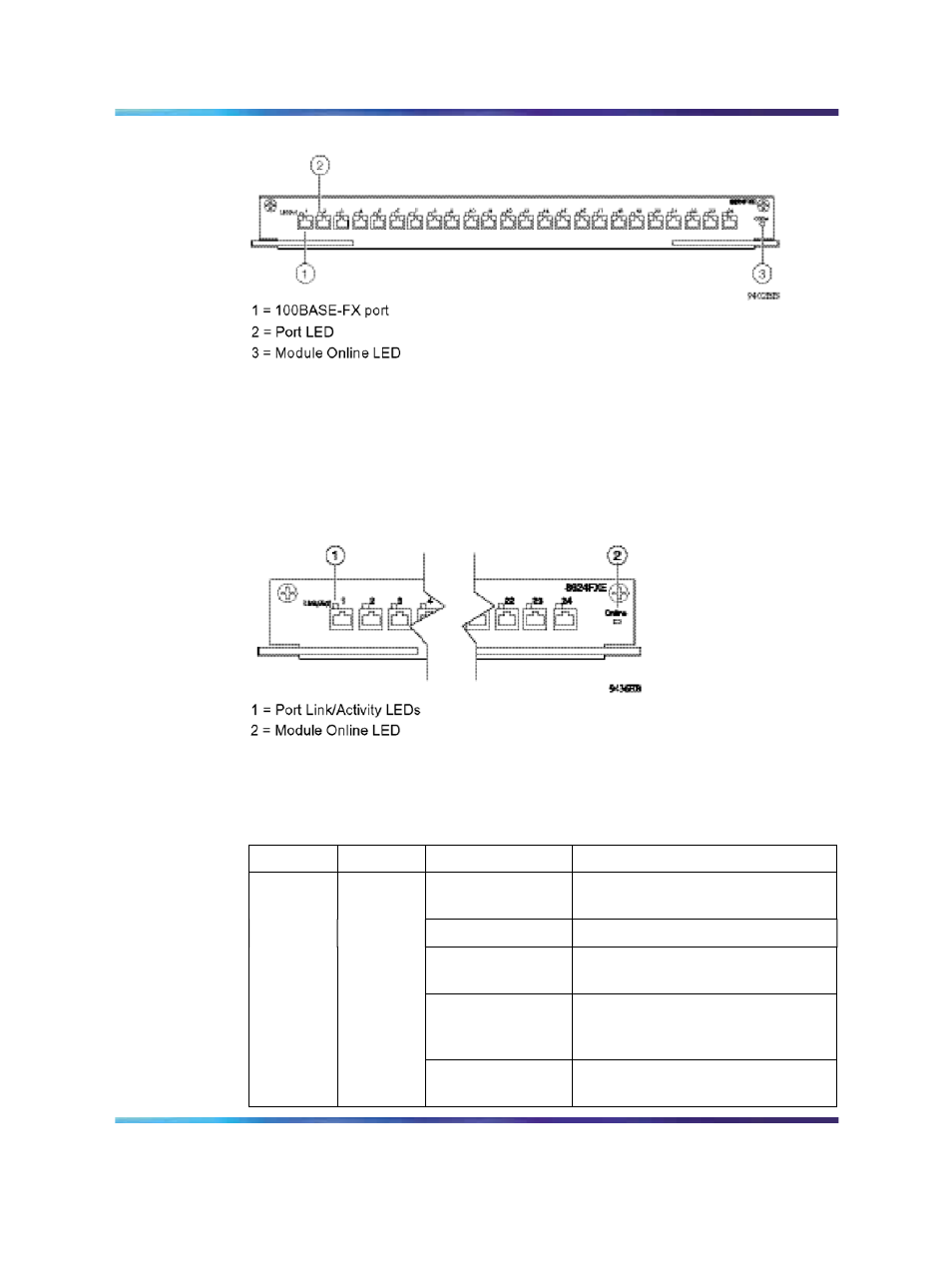

8624FXE module
The 24 100BaseFX ports on the 8624FXE module can operate in 100
Mb/s Fast Ethernet full-duplex mode. The optical transceivers provide
transmission ranges of up to 6562 ft (2 km) using 62.5 µm multimode fiber
cable or 4264 ft (1.3 km) using 50 µm multimode fiber cable.
"8624FXE module LEDs" (page 36) shows the location of the LEDs.
8624FXE module LEDs
"8624FXE module LEDs" (page 36) describes the 8624FXE module LEDs.
8624FXE module LEDs
Type Label Color/State Meaning
Green/Steady The port is connected, and the link
is good.
Green/Blinking Data is passing through this port.
Amber/Steady A fault condition exists at the far
end of the connection.
Amber/Blinking A fault condition exists at the far
end of the connection, and the port
is sending or receiving.
Port Link/Act
Off The port is not connected, or it is
connected but has no link.
