Procedure steps 137
CPU daughter card installation kit
3 Remove the 8692 Series CPU from the chassis (see "Installing and
replacing a module" (page 75) ).
4 Pick up the daughter card.
5 Align the daughter card connectors with the connectors on the 8692
Series CPU ( see
"Aligning the CPU daughter card connectors"
(page 137) ).

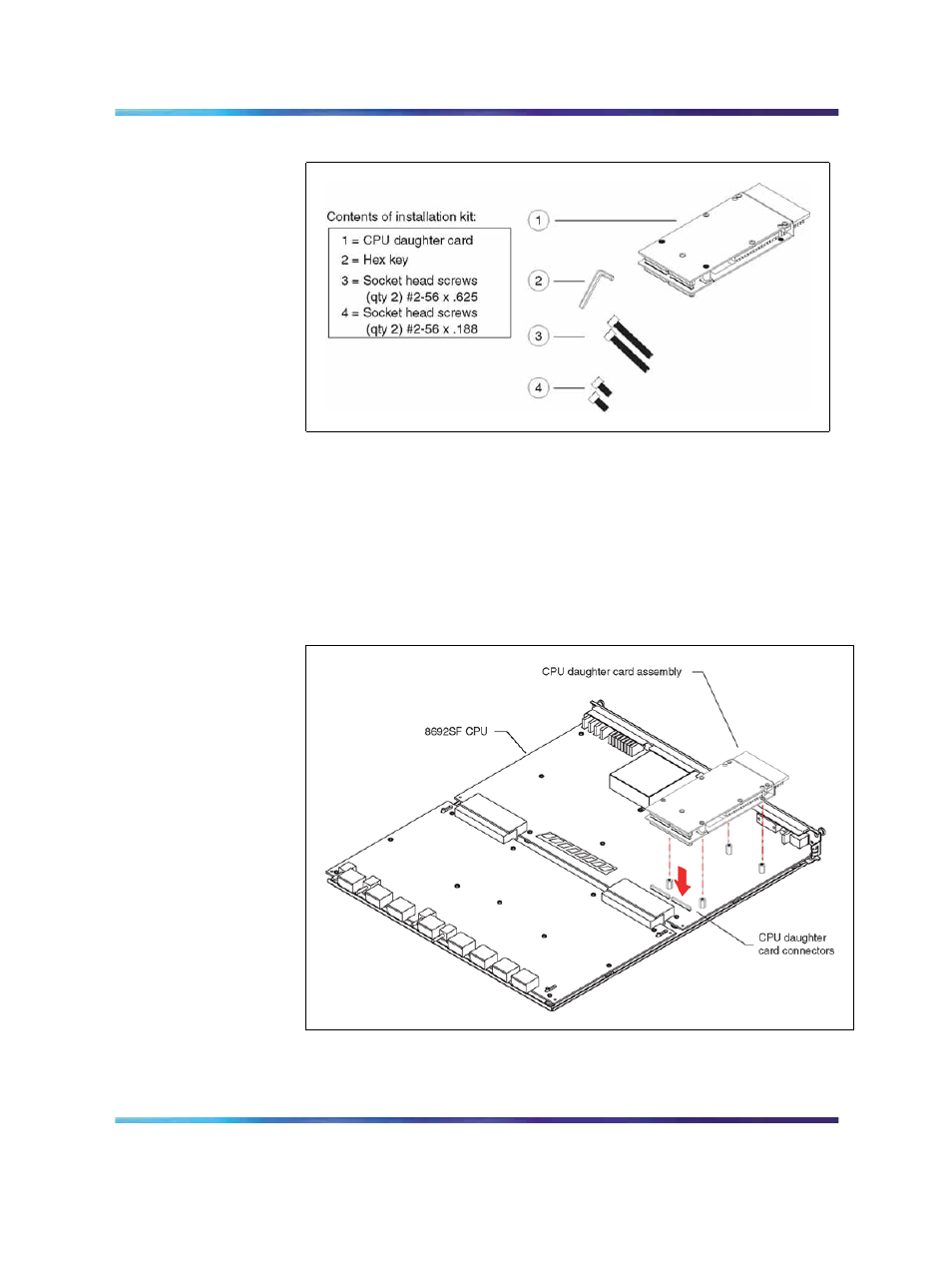

Aligning the CPU daughter card connectors
