8630GBR module 39

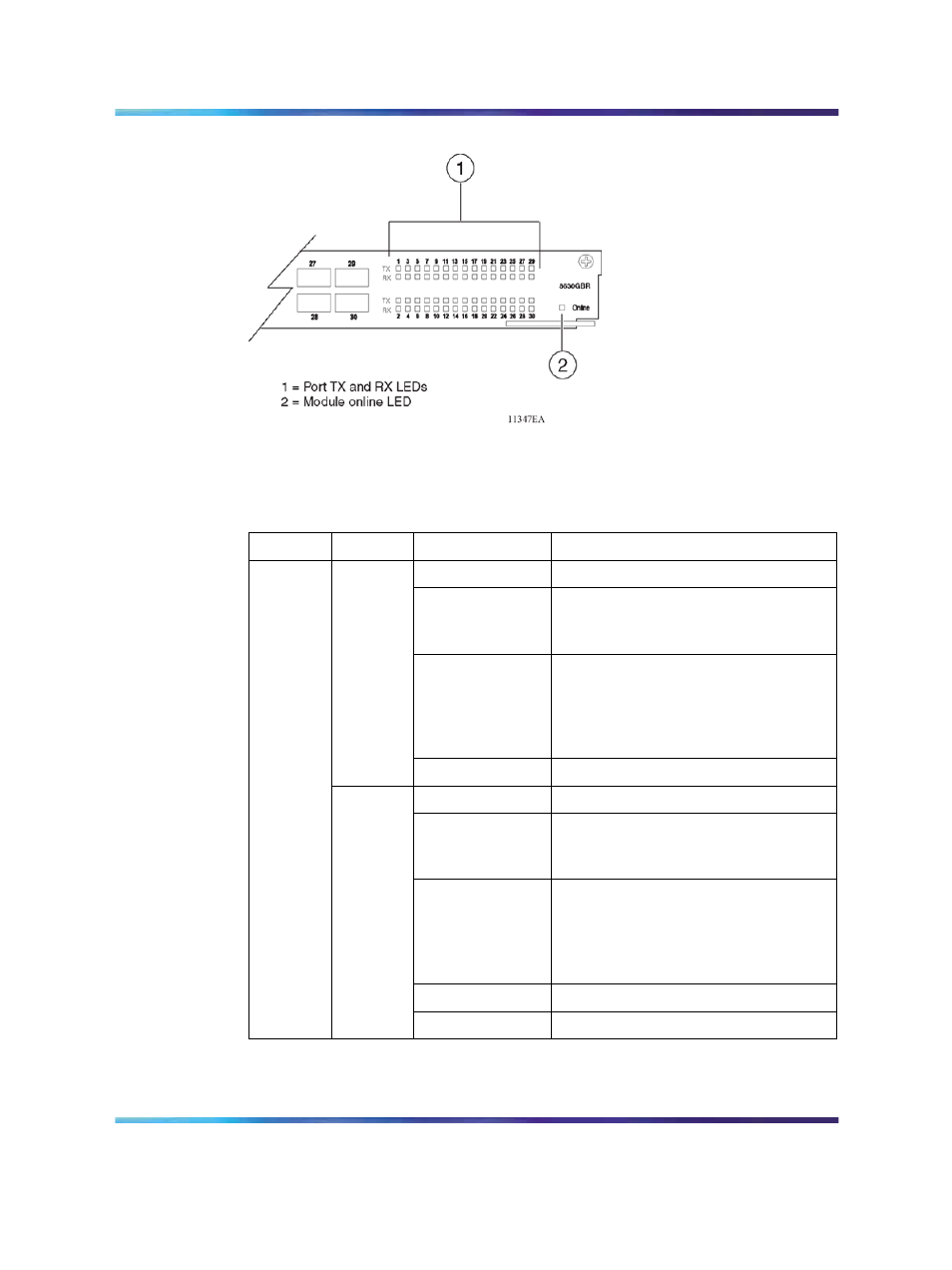

8630GBR module LEDs
"8630GBR module LEDs" (page 39) describes the 8630GBR module LEDs.
8630GBR module LEDs
Type Label Color/State Meaning
Green/Steady The port is enabled and has a link.
Green/Blinking
(1 second on; 1
second off) Port disabled.
Green/Flashing The port is transmitting data.
The LED flash rate indicates the level
of activity on the link.
TX
Off The port is enabled but has no link.
Green/Steady The port is enabled and has a link.
Green/Blinking
(1 second on; 1
second off) Port disabled.
Green/Flashing The port is receiving data.
The LED flash rate indicates the level
of activity on the link.
Amber/Flashing Data error.
Port
RX
Off The port is enabled but has no link.
