3

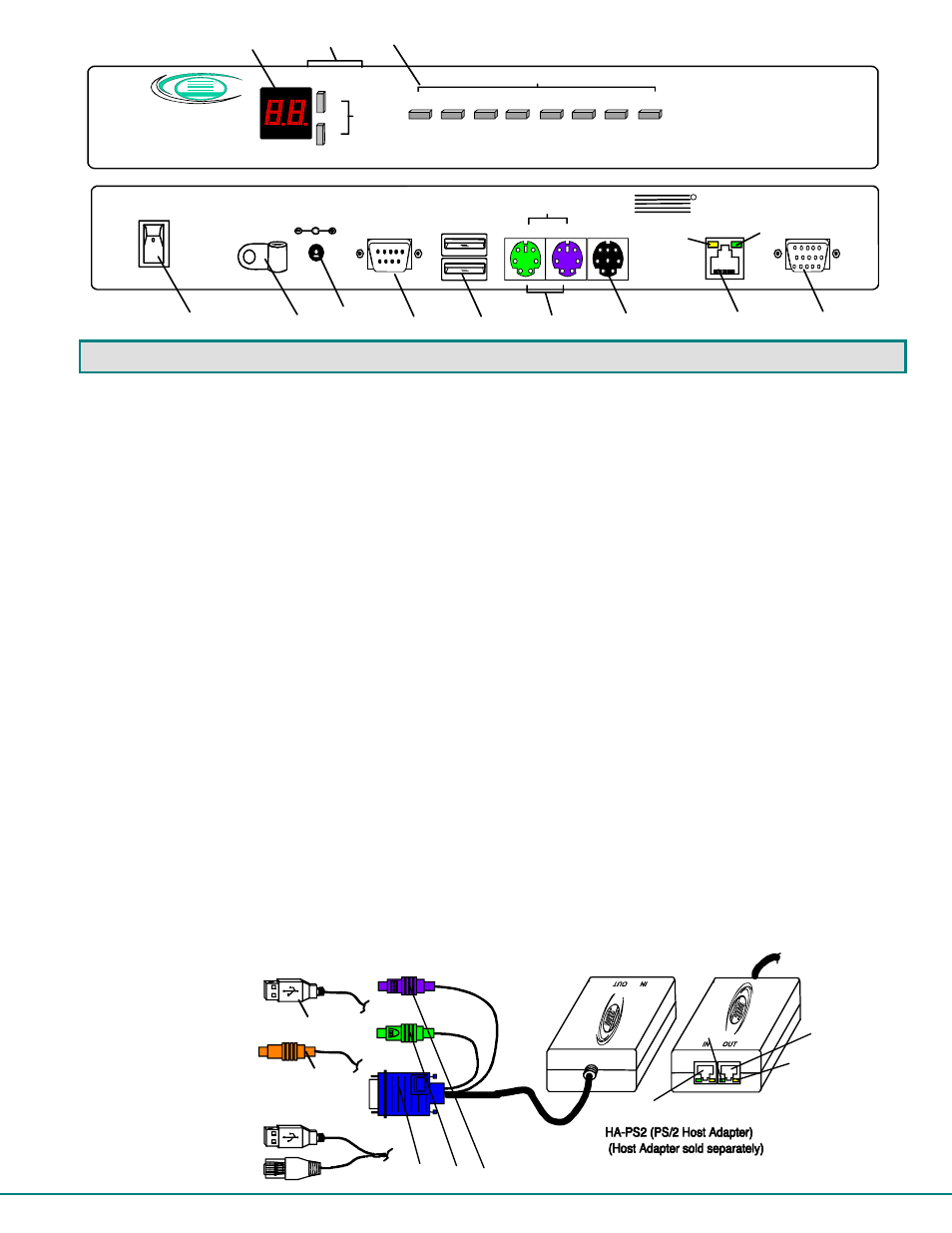

FEATURES AND FUNCTIONS
1. LED Display - for visual indication of which Host Adapter the user is connected to
2. Search Buttons - to enable manual search for desired Host Adapter connection
3. Favorite Buttons - programmable buttons to quick selection of specific Host Adapters
4. Power Switch - to turn the User Station ON and OFF
5. Cable Clamp - to secure the cable from the AC adapter
6. 5VDC 2A - 3.5mm power jack- for connection of AC adapter
7. RS232 - DB9 male- serial communication port for updating firmware
8. USB Devices - USB Type A female- for connection of USB user devices (keyboard and mouse)
9. PS/2 Devices - green and purple 6mD females- for connection of PS/2 type mouse (green) and keyboard (purple)
10. SUN Devices - black 8mD female- for connection of SUN mouse and keyboard (not supported at this time)
11. Cat5 - RJ45 female- for connection of CAT5 cable between Host Adapter and User Station
11a. Yellow LED- power indicator- illuminates when power has been supplied to the unit
11b. Green LED- traffic indicator- illuminates when there is communication between the User Station and Host
Adapters.
12. Monitor - for connecting the video monitor
13. Video Connector - blue 15HD male- for connecting to the video port on the CPU
14. Mouse Connector - green male 6 miniDIN (HA-PS2 only)- for connecting to the mouse port on a PS2 CPU
15. Keyboard Connector - purple male 6 miniDIN (HA-PS2 only)- for connecting to the keyboard port on a PS2 CPU
15a. Device Connector - male USB Type A (HA-USB only)- for connecting to a device port on a USB CPU
15b. Device Connector - orange male 8 miniDIN (HA-SUN only) - for connecting to the device port on a SUN CPU
15c. Power and Serial Connectors -USB Type A and RJ45 male(HA-RS only)- for connecting to the serial port on a terminal
and powering the Host Adapter
16. Cat5 - RJ45 female- for connection of CAT5 cable between daisy-chained Host Adapters
Rear View of PRIMUX-UZR (User Station)
11
Cat5 Monitor
SUN
Devices
PS/2
Devices
Mouse Kybd RS232
USB
Devices
5VDC
2A
+
PRIMUX UZR TM
8 7 6 5 4 3 2 1
Favorites
Search
Up
Down CPU
NTI
R
Network Technologies Inc
Front View of PRIMUX-UZR (User Station)
4 5 6 7 8 9 10
11b
11a
12
1 2 3
NTI
NETWORK
TECHNOLOGIES
INCORPORATED Tel:330-562-7070
Fax:330-562-1999 1275 Danner Dr
Aurora, OH 44202
www.nti1.com
R
(Front View)
(Rear View)
11
11a
11b
13 14 15
16
15a
15b
15c
