Installation of a USB CPU
Plug the cables of the HA-USB Host Adapter into the back of the CPU after disconnecting the power cord from the CPU.
(See Figure 3.)
a)
Connect the cable with the USB Type A male cable end on it to a USB Type A female port on the back of the
CPU.
b)
Connect the blue 15HD cable end to the video connector on the back of the CPU.

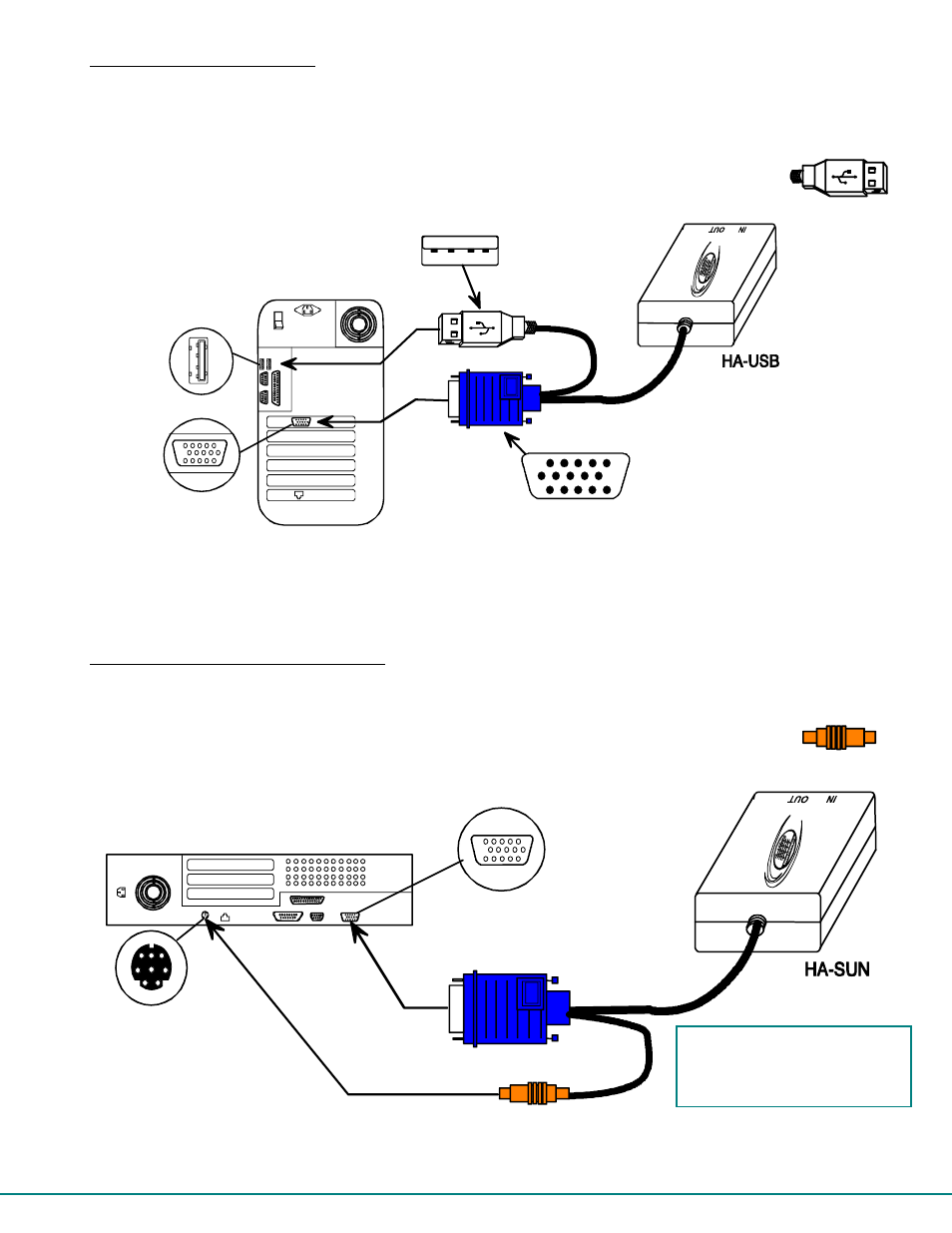

Figure 3- Connect an HA-USB Host Adapter to a USB CPU
Installation of a Legacy SUN CPU
Plug the cables of the HA-SUN Host Adapter into the back of the CPU after disconnecting the power cord from the CPU.
(See Figure 4.)
a)
Connect the orange 8 pin miniDIN cable end on it to the devices port on the back of the CPU.
b)
Connect the blue 15HD cable end to the VGA port on the back of the CPU.
Figure 4- Connect an HA-SUN Host Adapter to a Legacy SUN CPU
USB Devices
SUN Devices
Rear View of SUN CPU
(Front View)
orange-devices
15HD female
video connector
8 pin miniDIN
female connector
FYI: The HA-SUN Host Adapter
does not provide keyboard
power-ON support for legacy
SUN CPUs.
(Front View)
Rear View of USB CPU
15HD male
video connector
15HD female
video connector
USB Type A male
USB Type A
device port
