5
INSTALLATION
The Host Adapter
The PRIMUX HA Host Adapter is designed to support PS/2, SUN and USB CPUs, as well as serial-controlled servers and
devices (see chart below). Host Adapters may be connected to or removed from a CPU without powering down the CPU, provided
the CPU and operating system supports device hot plugging. (Operating systems known to support hot-plugging include Windows
2000 SP3 and higher, Windows XP, Windows Vista, and Linux. )
CPU TYPE HOST ADAPTER MODEL
PS/2 HA-PS2
SUN HA-SUN
USB HA-USB
SERIAL
HA-RS
Note: The HA-RS Host Adapter will only work with User Stations programmed with firmware version 2.0 and later.
Note: All Host Adapters must be programmed with firmware version 2.0 in order to work with a User Station programmed
with firmware version 2.0 and later. See “Please Note...” on page i.
Installation of a PS/2 CPU
Plug the cables of the HA-PS2 Host Adapter into the back of the CPU after disconnecting the power cord from the CPU.
(See Figure 2.)
a) Connect the green 6 pin miniDIN cable end with the mouse symbol
on it to the mouse port on the back of the CPU.
b)
Connect the purple 6 pin miniDIN cable end with the keyboard symbol
on it to the keyboard port on the back of the CPU.
c)
Connect the blue 15HD cable end to the VGA port on the back of the CPU.

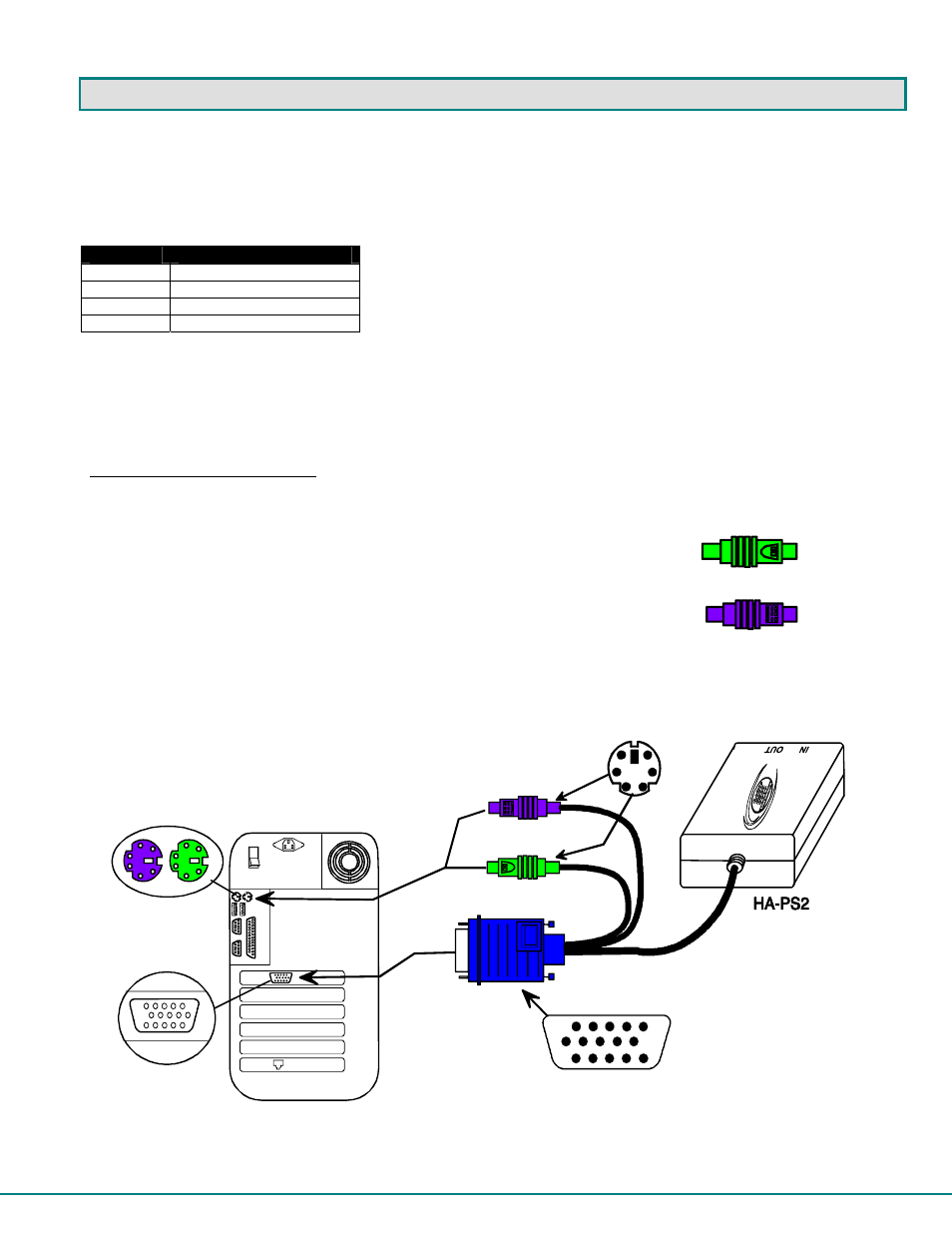

Figure 2- Connect an HA-PS2 Host Adapter to a PS/2 CPU
PS/2 Mouse
PS/2 Keyboard
(Front View)
Rear View of PS/2 CPU
15HD male
video connector
15HD female
video connector
6 pin miniDIN
female connectors
6 miniDIN
male connectors
purple-keyboard
green-mouse
