Page 48

Programmable Keys

A list of <

> keys that when used in conjunction with the <

Alt

> key can be programmed to be used as macro keys to send

commands to the connected serial device. When applicable commands are associated with an <

> key, pressing <

Alt

> will send that command automatically to the serial device. In the example below, pressing <

Alt

>-<

> will automatically

send the “logout” command.

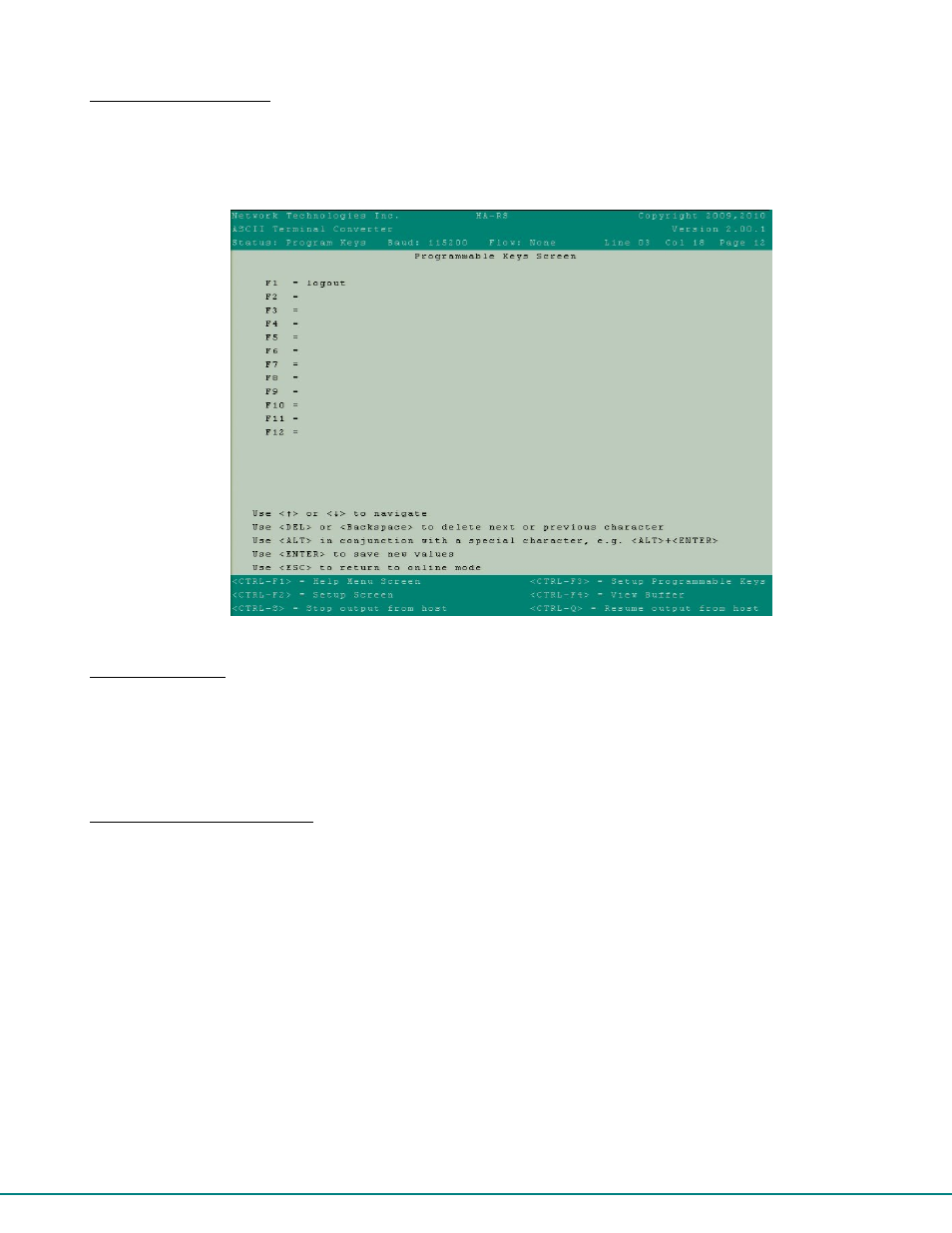

Figure 44- HA-RS Programmable Keys Screen

View the Buffer

Press <

Ctrl

>-<

> to view the last 10 pages of data that was received from the serial adapter. Once the buffer is full, the oldest

data in history will automatically be deleted to make room for new. The lines of text can be cleared from the history in their
entirety by pressing <

Ctrl

>-<

F12

> .

Stop and Resume Output

Press <

Ctrl

>-<

> to stop viewing the data received by the serial device. This will not stop the device from sending data, it will

simply stop you from seeing it.

Press <

Ctrl

>-<

> to resume viewing the data received by the serial device.
