HA-RS Configuration
The HA-RS Serial Host Adapter enables a user to remotely connect to a serial device and control the device using the PRIMUX
User Station as a terminal. The HA-RS is compatible with most serial devices with an RS232 port. The HA-RS emulates a
VT100 terminal
–
converting serial data from an ASCII device into VGA video (800x600 @ 60Hz signal).
Note: The HA-RS Host Adapter will only work with User Stations programmed with firmware version 2.0 and later.
Note: All Host Adapters must be programmed with firmware version 2.0 in order to work with a User Station programmed
with firmware version 2.0 and later. See “Please Note...” on page i.
When connecting to an HA-RS through Command Mode (page 19) a terminal screen will be presented with a connection to the
serial device. The terminal screen will include available functions for the user interface listed at the bottom.

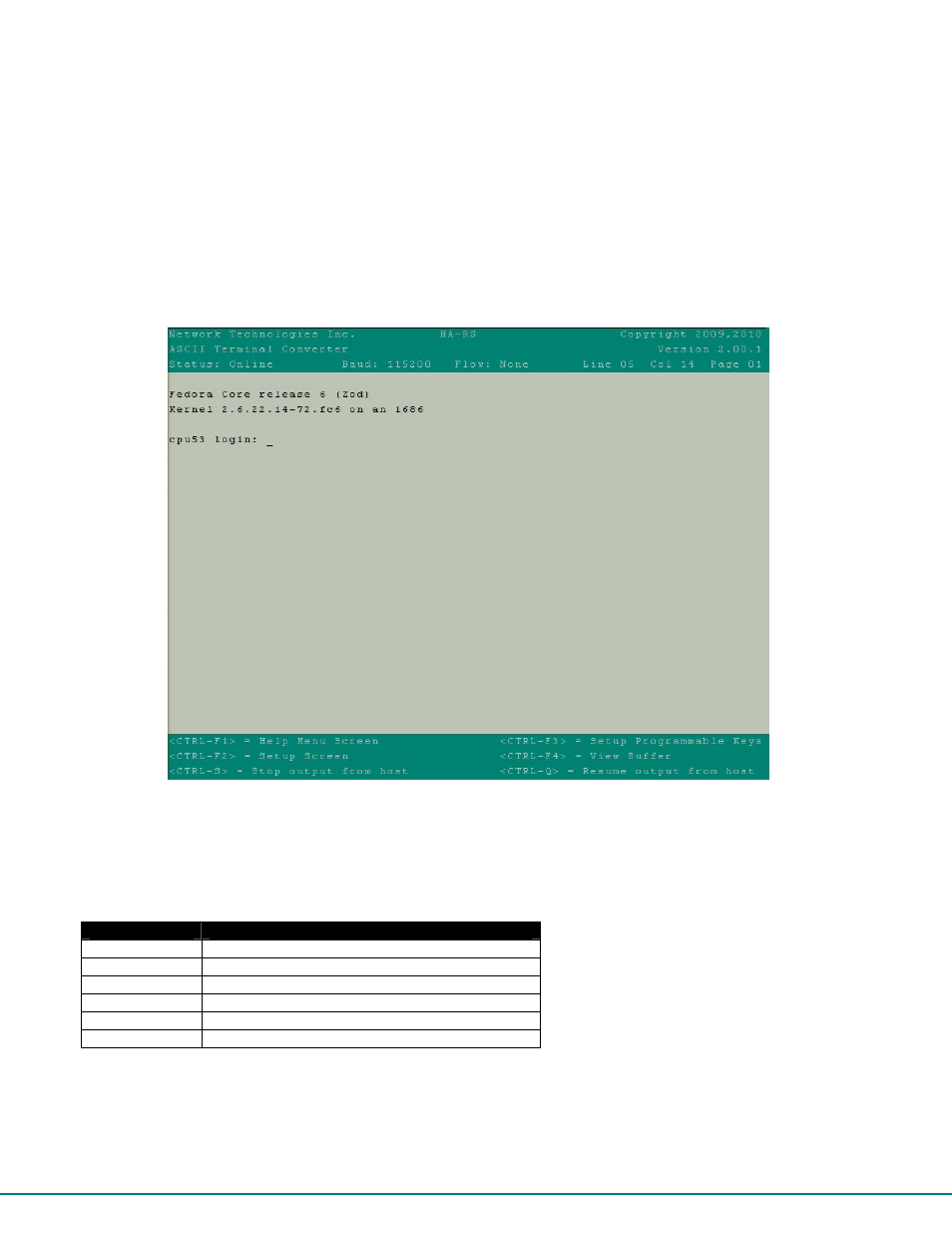

Figure 41- HA-RS User Interface
The user can either communicate to the serial device or use the <
Ctrl
> key in conjunction with <
Fx
> keys to control the colors of
the interface, the connection parameters of the HA-RS, or view up to 10 pages of data that has been viewed through the HA-RS
from the serial device. Control options are as follows:
Key Strokes
Function
<
Ctrl
>-<
F1
> Help
Menu
<
Ctrl
>-<
F2
>
Setup Screen to setup connection parameters
<
Ctrl>
-<
F3
>
Setup Programmable keys
<
Ctrl>
-<
F4
>
View the stored data in the buffer
<
Ctrl>
-<
S
>
Stop displaying output from host (serial device)
<
Ctrl
>-<
Q
>
Resume displaying output from host (serial device)
