NETGEAR 54 Mbps Wireless ADSL Firewall DG834G - Manual (Page 168)

Wireless ADSL2+ Modem Router DG834G User Manual
B-18 NETGEAR VPN Configuration
v1.0, May 2008

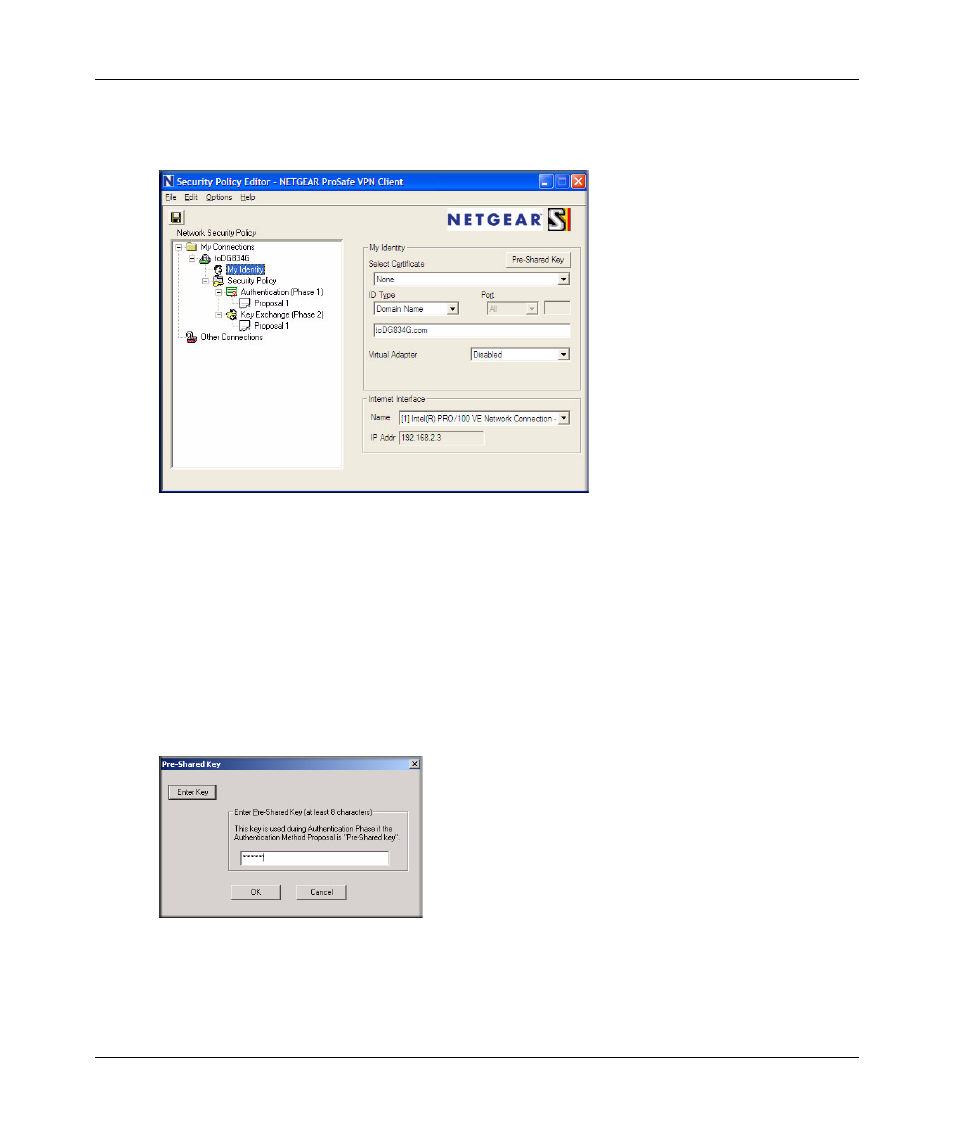

a. In the Network Security Policy list on the left side of the Security Policy Editor window,
click My Identity.
b. Select None in the Select Certificate drop-down list.
c. Select Domain Name in the ID Type drop down list, and then enter toDG834G.com (in
this example). Select Disabled in the Virtual Adapter drop-down list.
d. In the Internet Interface section, select Intel PRO/100VE Network Connection (in this
example, your Ethernet adapter might be different) in the Name field, and then enter
192.168.2.3 (in this example) in the IP Addr field.
e. Click the Pre-Shared Key button.
f. In the Pre-Shared Key screen, click Enter Key. Enter the DG834G v5’s pre-shared key
and click OK. In this example, 12345678 is entered. This field is case-sensitive.
Figure B-19
Figure B-20
