NETGEAR 54 Mbps Wireless ADSL Firewall DG834G - Manual (Page 107)

Wireless ADSL2+ Modem Router DG834G User Manual
Virtual Private Networking 6-13
v1.0, May 2008
a. In the Network Security Policy list on the left side of the Security Policy Editor window,
click My Identity.
b. In the Select Certificate drop-down list, select None.
c. Select IP Address in the ID Type drop-down list. If you are using a virtual fixed IP
address, enter this address in the Internal Network IP Address field. Otherwise, leave
this field empty.
d. In the Internet Interface section of the screen, select the adapter that you use to access the
Internet. If you have a dial-up Internet account, select PPP Adapter in the Name field. If
you have a dedicated cable or DSL line, select your Ethernet adapter. If you will be
switching between adapters or if you have only one adapter, select Any.
e. In the My Identity section of the screen, click the Pre-Shared Key button. The Pre-Shared
Key screen displays:

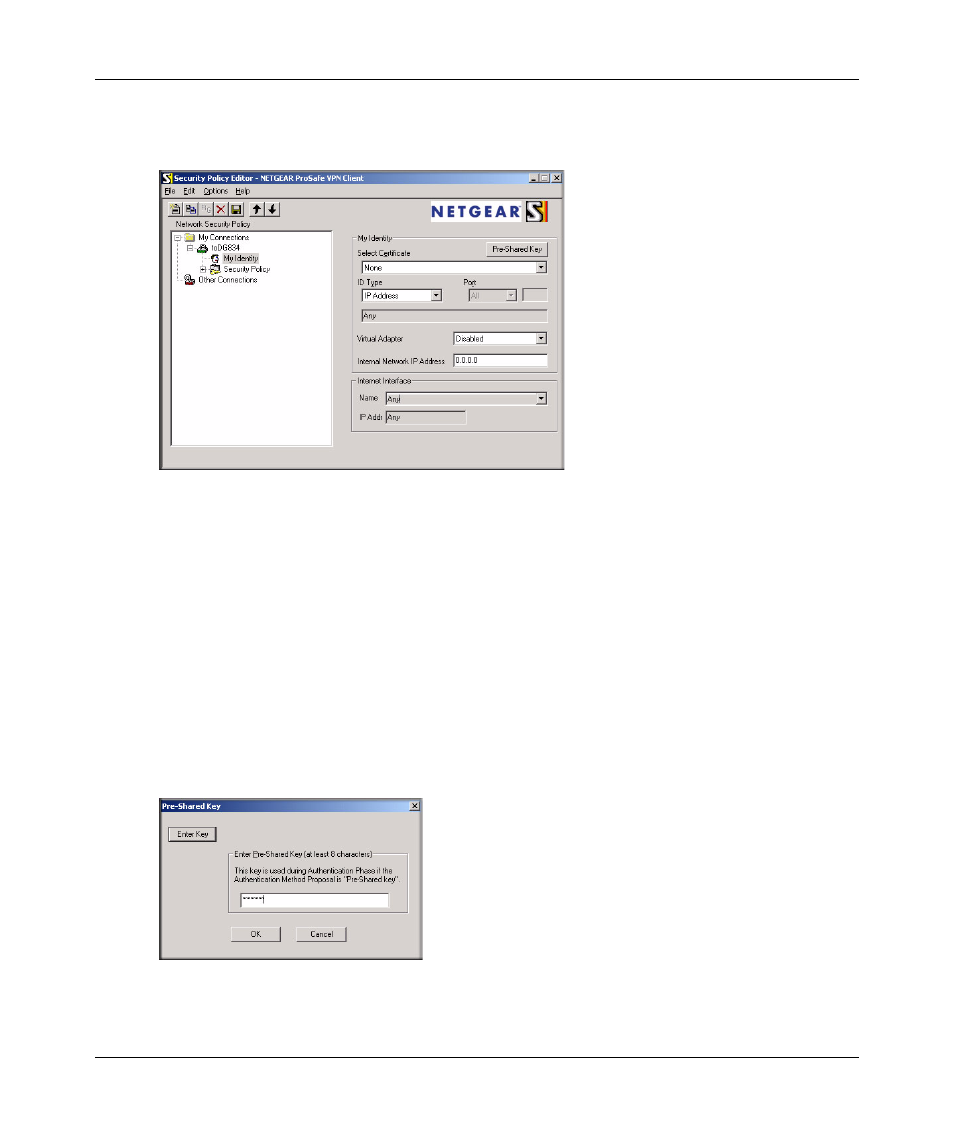

Figure 6-11
Figure 6-12
