10

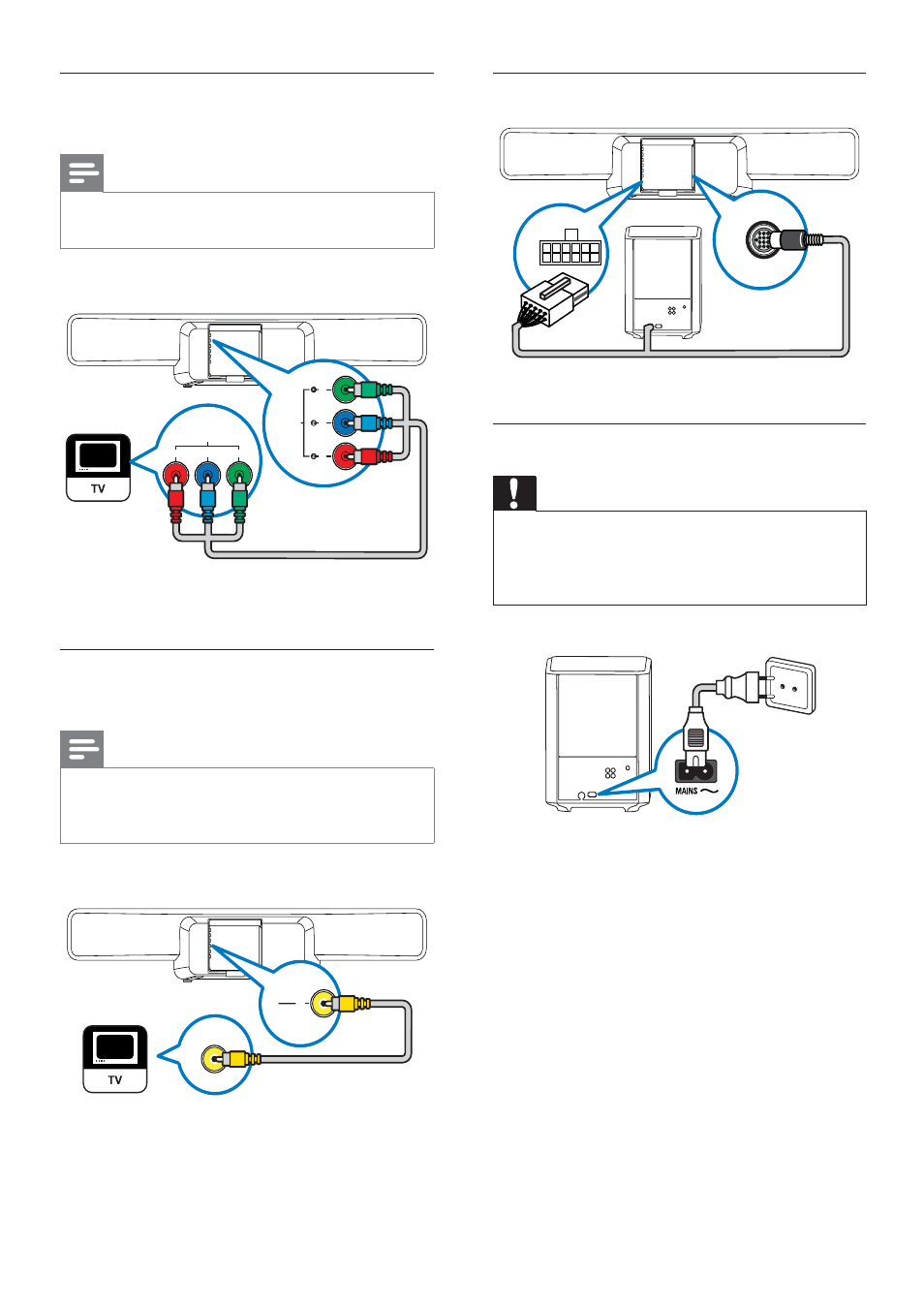

Connect the subwoofer
Connect the power cord
Caution
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the underside or back of
the home theatre.
TO
SUBWOOFER
TO
SUBWOOFER
Option 2: Connect to the TV through
YPbPr (component video)
Note
The component video cable or connector •
might be labelled Y Cb Cr or YUV .
(Cable not supplied)
Option 3: Connect to the TV through
composite video (CVBS)
Note
The composite video cable or connector might •
be labelled AV IN , VIDEO IN , COMPOSITE
or BASEBAND .
(Cable not supplied)
COMPONENT VIDEO OUT
(GREEN)
(BLUE)
(RED)
COMPONENT VIDEO IN
Pr Pb Y
VIDEO OUT (YELLOW)
VIDEO IN
EN
