9
Connect to the TV, subwoofer
and power
Connect to the TV
Connect your home theatre directly to a TV
through one of the following connectors (from
highest quality to basic quality):
a HDMI
b Component video ( Y Pb Pr ) (not
supplied)
c Composite video ( CVBS ) (not supplied)
Option 1: Connect to the TV through
HDMI
Note
If your HDTV has a DVI connector, connect •
using an HDMI/DVI adapter.
If your TV supports EasyLink HDMI CEC,
•
control the home theatre and TV with one
remote control (see ‘Set up EasyLink’ on page
26 ) .
HDMI IN
HDMI OUT

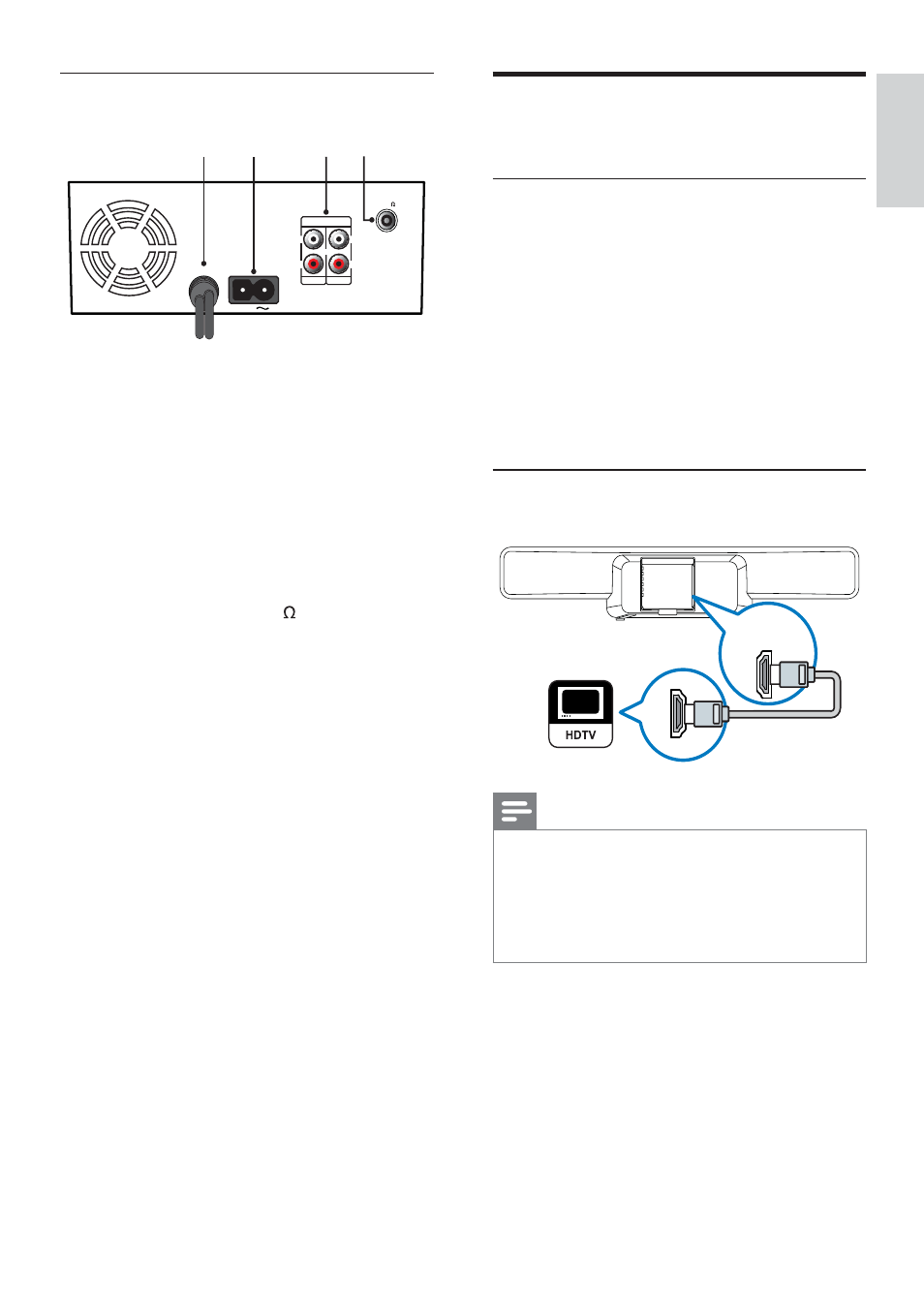

Subwoofer connectors
a TO MAIN UNIT
Connect to the TO SUBWOOFER
connector on the main unit.
b MAINS
Connect to the power supply.
c AUDIO IN AUX 2/AUX3
Connect to analogue audio output on an
analogue device.
d FM ANTENNA FM 75
Connect for FM radio signal.
MAINS
AUDIO IN
AUX 2 AUX 3
L
R
L
R
FM ANTENNA
FM 75
TO MAIN UNIT
a b c d
English
EN
