Introduction 97
T1/E1 DACS Administrators’ Reference Guide 15 • System
Introduction
The System main window (see figure 35) contains general setup information about the DACS. System param-
eters are Patton Enterprise MIB object identifiers, though some are contained in RFC 1213, Management
Information Base for Network Management of TCP/IP-based internets: MIB-II. Click on
System under the Con-
figuration Menu to display the System main window.

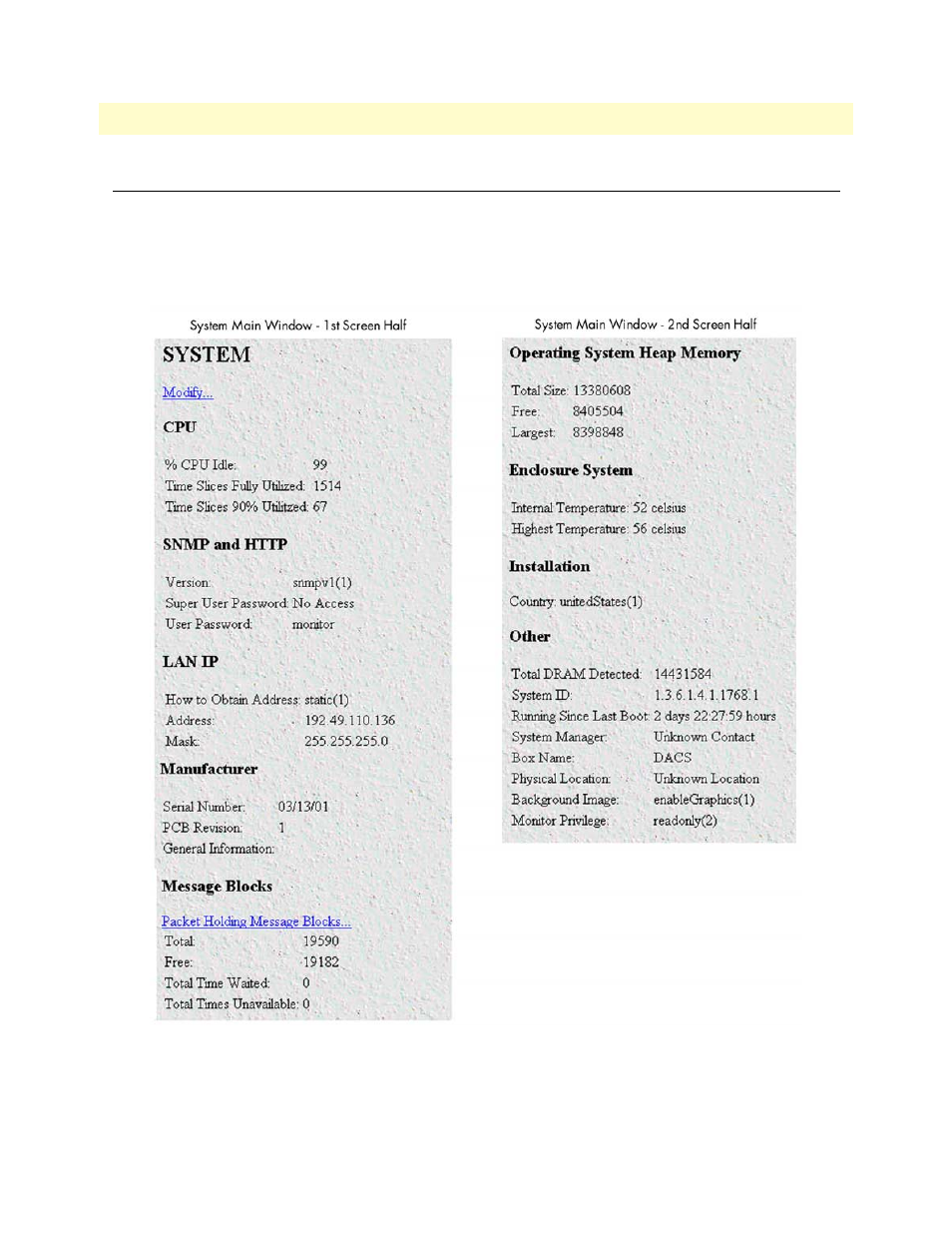

Figure 35. System main window
(CPU, SNMP and HTTP, LAN IP, Manufacturer, and Message Blocks)
