Addressing Information 65
T1/E1 DACS Administrators’ Reference Guide 10 • IP
Addressing Information

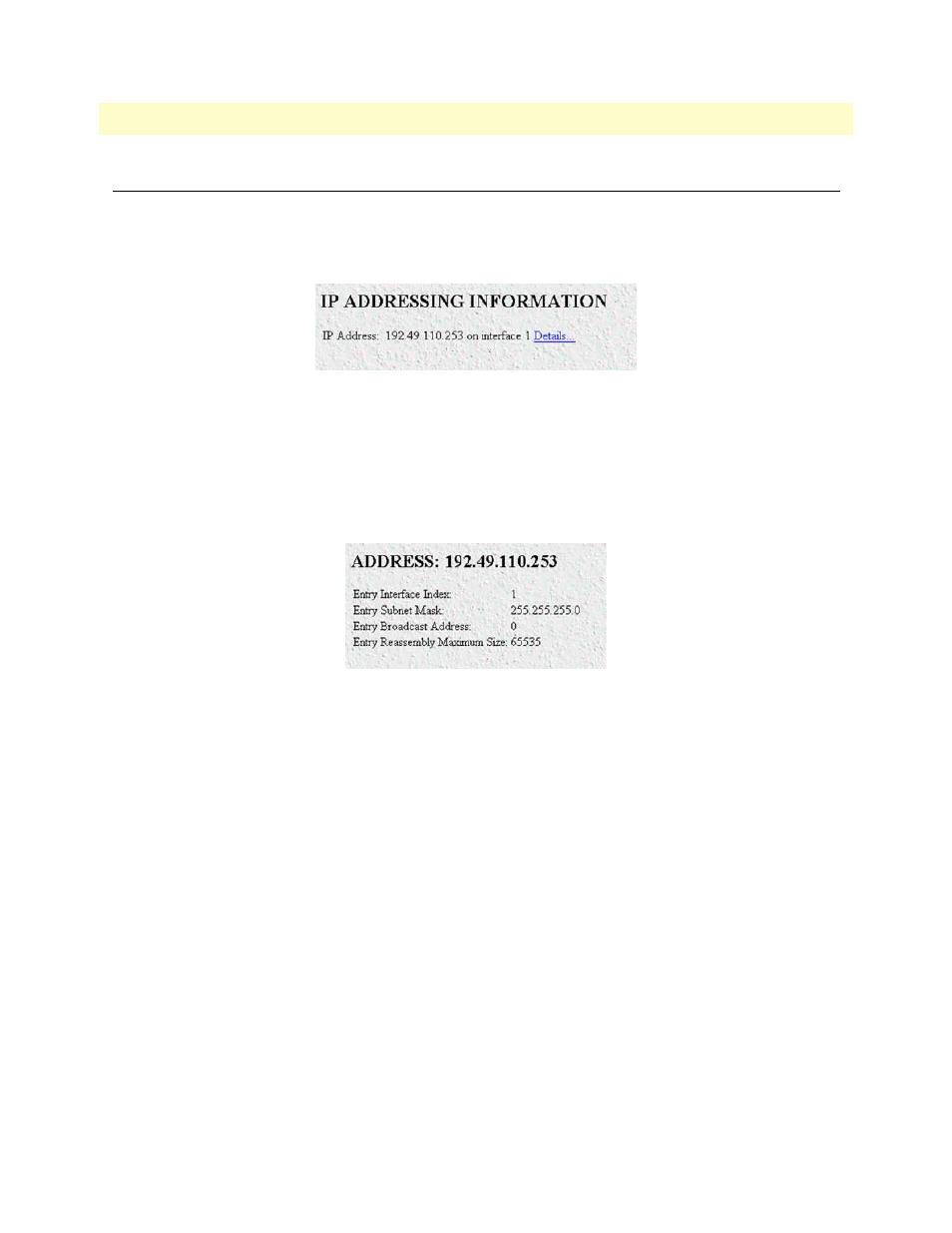

The IP addressing Information window (see figure 22) is where you can view the default address for outgoing
IP datagrams, the local or loopback address of the box, and the IP address of the box as defined in Chapter 15,
“System”.
Figure 22. IP addressing Information window
Click on the Details link to display IP address Table entries for each defined network interface (see “IP address-
ing Information Details”.
IP addressing Information Details
This window (see figure 23) shows IP address Table entries for each defined network interface.
Figure 23. IP addressing Details window
Entry Interface Index (ipAdEntIfIndex)
The index value that identifies the interface to which this entry applies.
Entry Subnet Mask (ipAdEntNetMask)
The subnet mask associated with the IP address of this entry. The value of the mask is an IP address with all the
network bits set to 1 and all the hosts bits set to 0.
Entry Broadcast Address (ipAdEntBcastAddr)
The value of the least-significant bit in the IP broadcast address used for sending datagrams on the interface
associated with the IP address of this entry. For example, when the Internet standard all-ones broadcast address
is used, the value will be 1. This value applies to both the subnet and network broadcast addresses used by the
entity on this interface.
Entry Reassembly Maximum Size (ipAdEntReasmMaxSize)
The size of the largest IP datagram which this entity can re-assemble from incoming IP fragmented datagrams
received on this interface.
