RIP Version 2 (Statistics) 87
T1/E1 DACS Administrators’ Reference Guide 13 • RIP Version 2
Status (rip2IfConfStatus)
Writing invalid has the effect of deleting this interface.
• valid (1)
• invalid (2)
RIP Version 2 (Statistics)
By clicking on Statistics in the RIP Version 2 main window, you enter the RIP Version 2 Status win-
dow (see figure 33)It displays routing and update information for each subnet address.

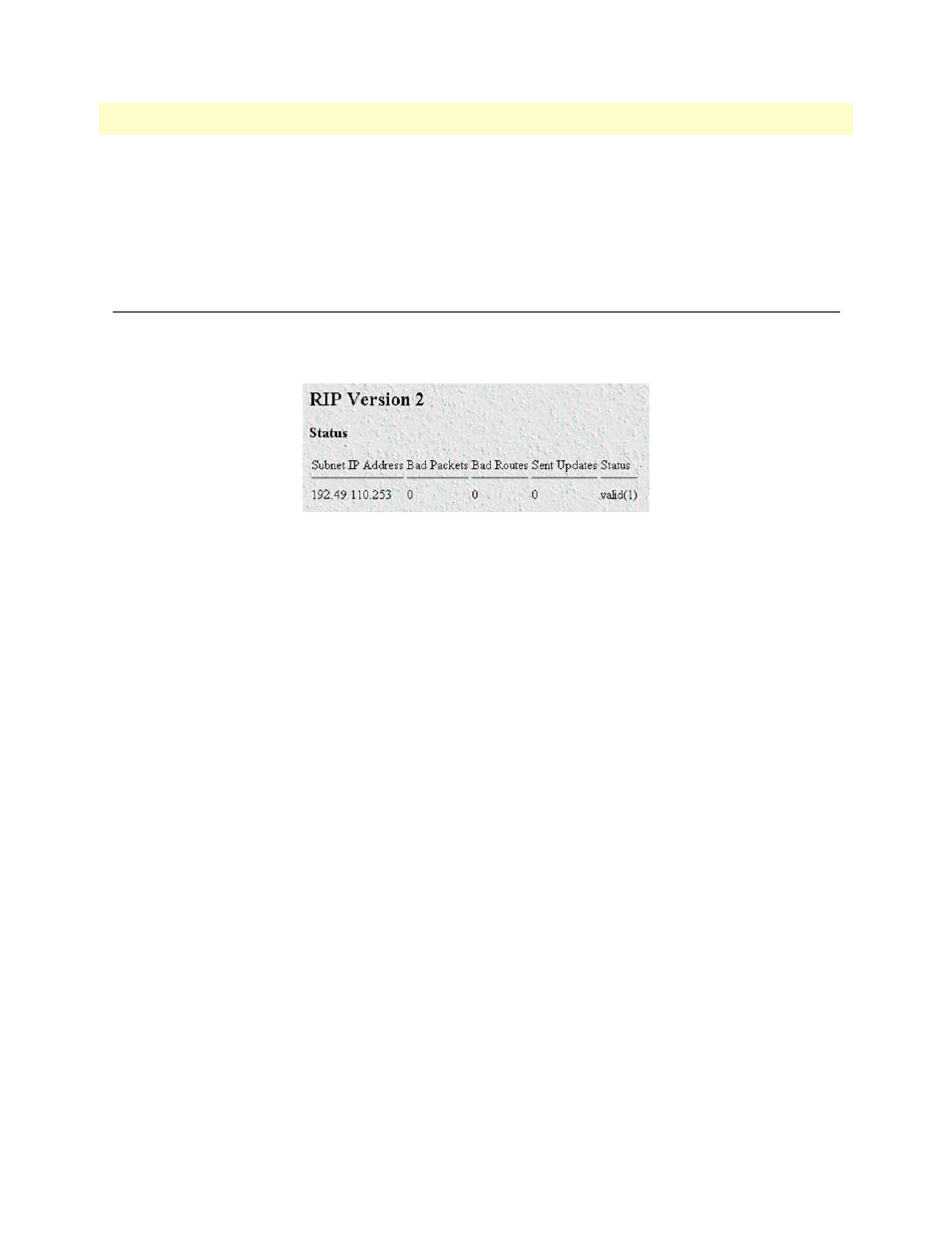

Figure 33. RIP Version 2 details window
Subnet IP Address (rip2IfStatAddress)
The IP Address of this system on the indicated subnet. For unnumbered interfaces, the value 0.0.0.N, where
the least significant 24 bits (N) is the ifIndex for the IP Interface in network byte order.
Bad Packets (rip2IfStatRcvBadPackets)
The number of RIP response packets received by the RIP process which were subsequently discarded for any
reason (e.g. a version 0 packet, or an unknown command type).
Bad Routes (rip2IfStatRcvBadRoutes)
The number of routes, in valid RIP packets, which were ignored for any reason (e.g. unknown address family,
or invalid metric).
Sent Updates (rip2IfStatSentUpdates)
The number of triggered RIP updates actually sent on this interface. This explicitly does NOT include full
updates sent containing new information.
Status (rip2IfStatStatus)
Displays whether the Subnet IP Address is valid or invalid.
