Introduction
Introduction
The
System Log
window (see figure 38) displays the results from the system-wide error reporting subsystem.
The object parameters in the system log are all Patton Enterprise MIB object identifiers.

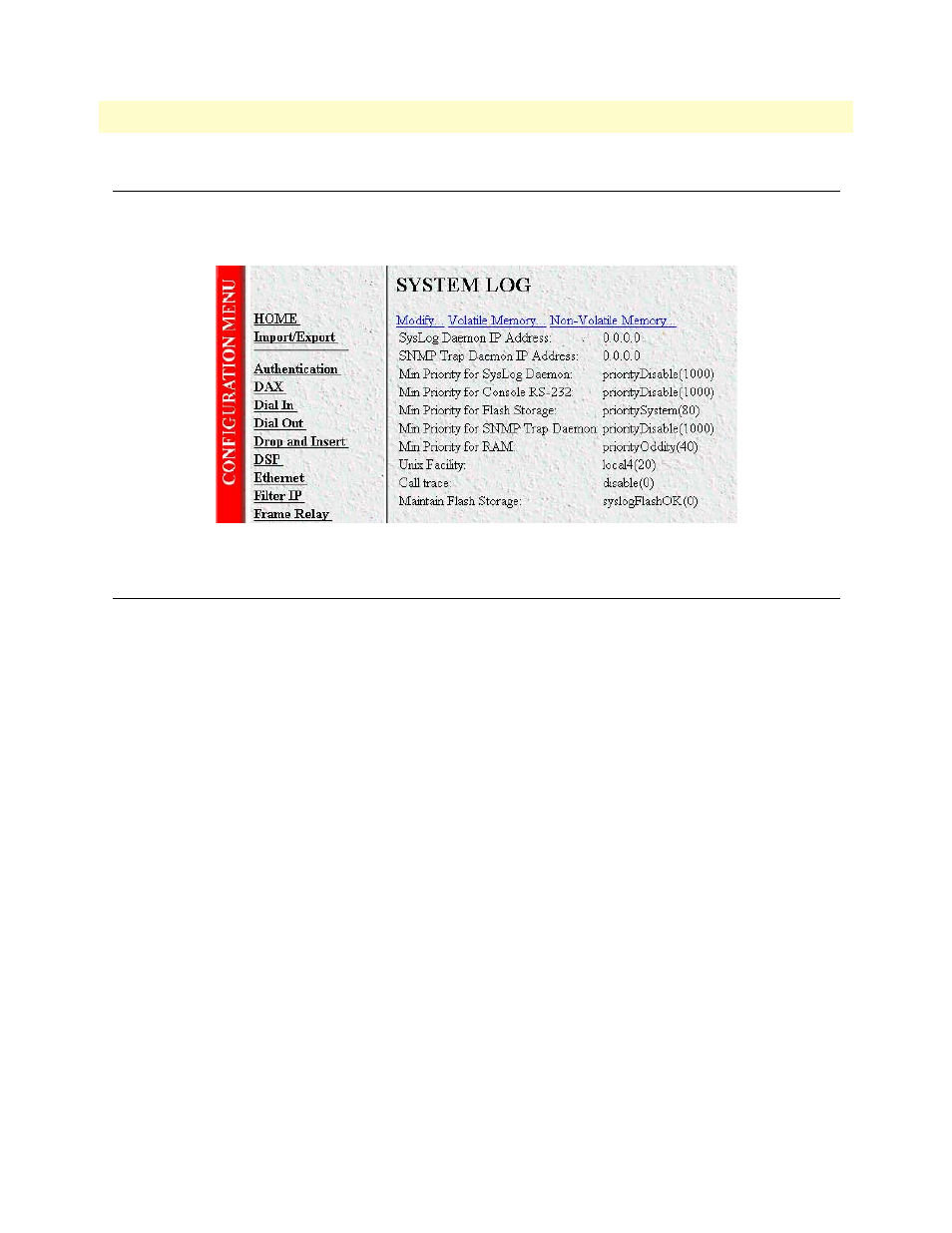

Figure 38. System Log main window
System Log Main Window
Besides displaying the results from the system-wide error reporting utility, the
System Log
main window also
contains links to the following:
•
Modify
—Clicking on this link displays syslog and SNMP trap daemon IP addresses, message priorities, and
maintenance information in the flash memory (see “System Log—Modify” on page 109)
•
Volatile Memory
—Clicking on this link displays timestamp and stored system log message information
(“System Log—Volatile Memory” on page 113)
•
Non-Volatile Memory
—Clicking on this link displays non-volatile RAM messages with the 100-ms time
stamp (see “System Log—Non-Volatile Memory” on page 114)
Click on
System Log
under the
Configuration Menu
to display the System Log main window.
