22 Introduction
Introduction
This chapter describes the HOME window—the first Administration Page that you see after logging into the
DACS (see figure 3). From HOME , you can monitor current systems status, save any system configuration
changes, or reset the system without power-cycling the DACS.
Note Clicking on the HOME link in the Configuration Menu pane will
return you to the HOME page from any other page.
The HOME window is divided into two panes: the Configuration Menu pane on the left-hand side and the con-
figuration/information pane (see figure 3). The Configuration Menu contains the links to the various DACS
subsystems, while the configuration/information pane is where you can view status and other information, or
make changes to the system configuration. Unlike the Configuration Menu pane, which looks the same no
matter which subsystem page you are viewing, the configuration/information pane contents will change as you
move from one subsystem page to another.

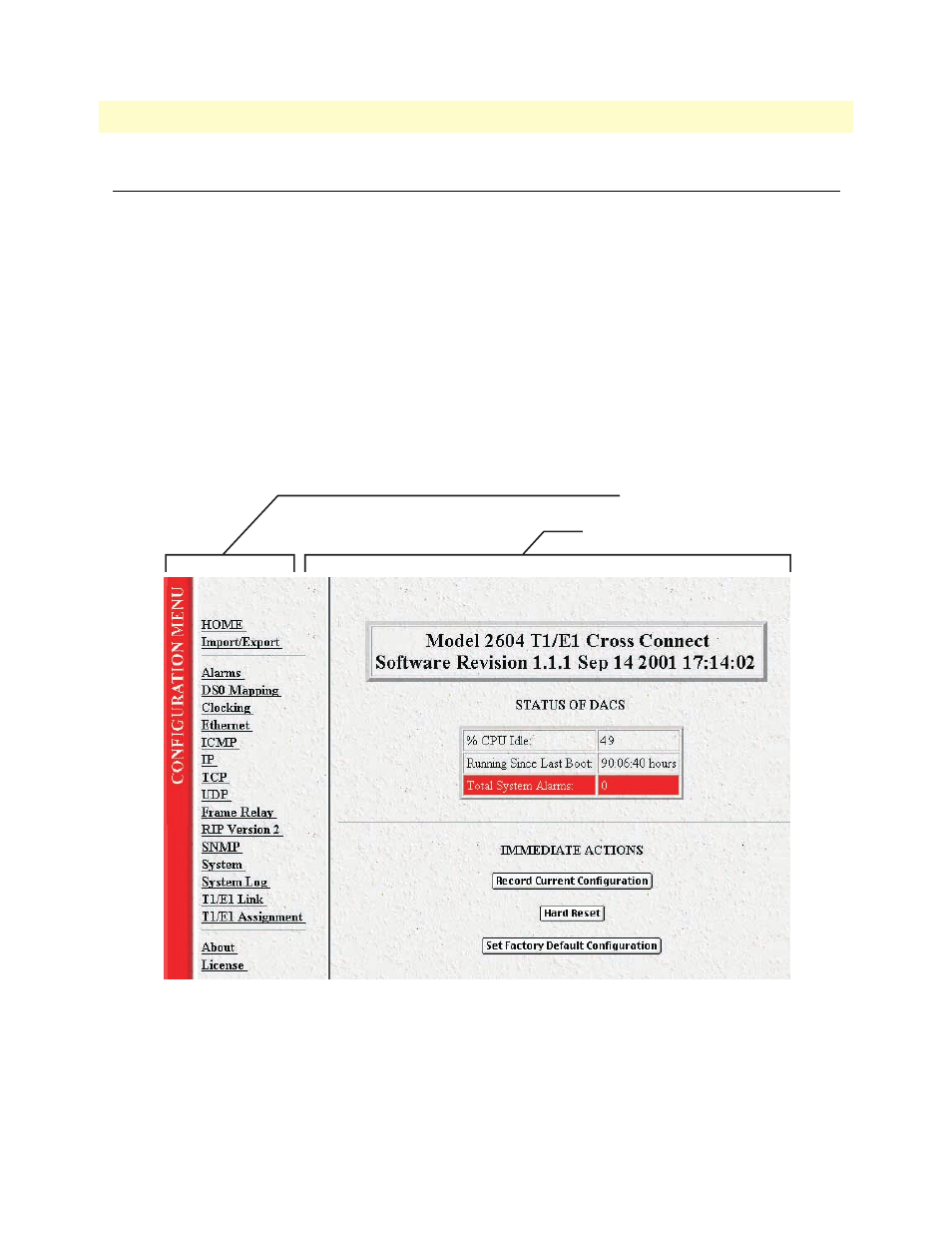

Figure 3. HOME page
Configuration Menu pane
Configuration/information pane
