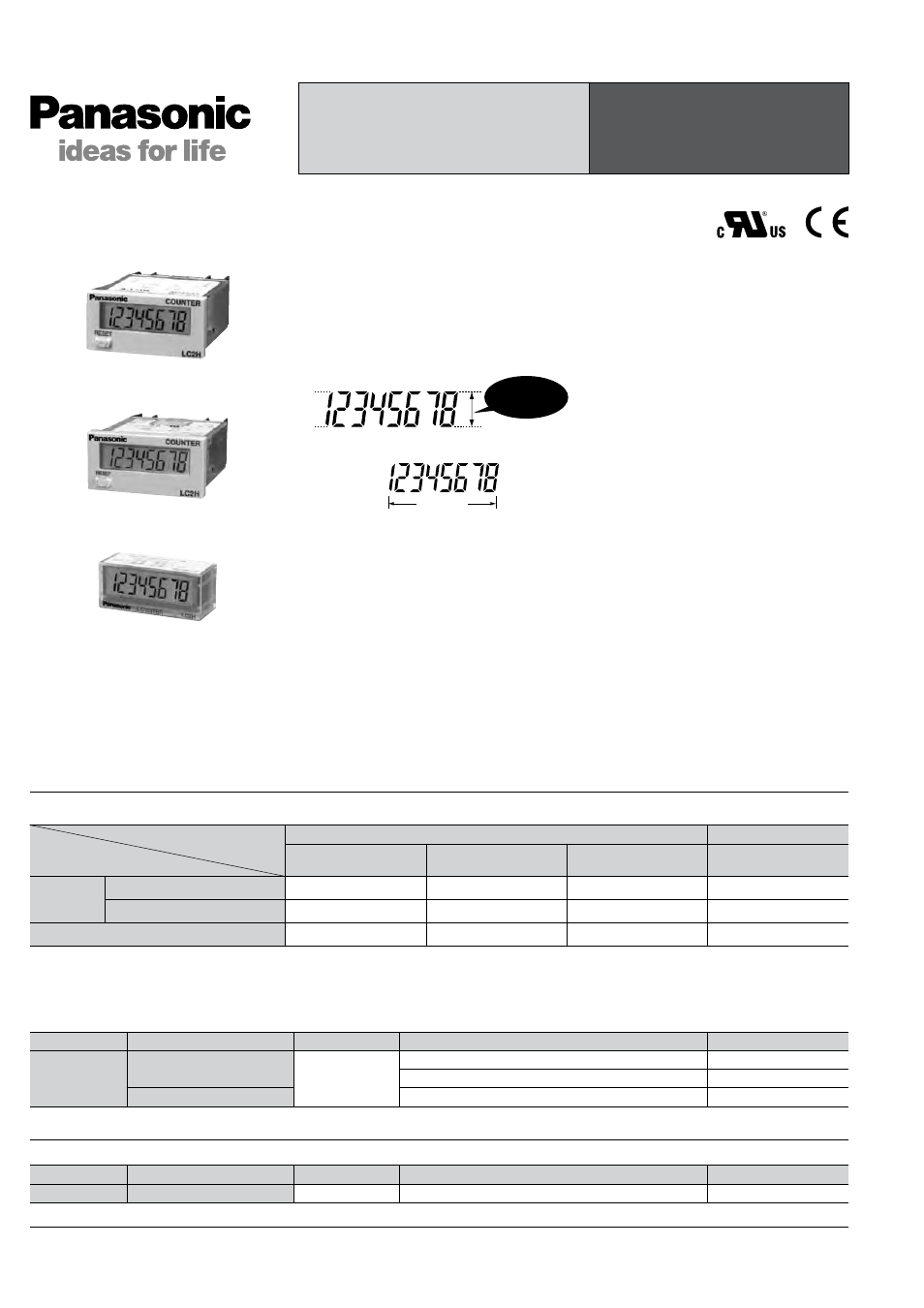

LC2H
Product types
1. Panel mounting type
1) One-touch installation type
1 Standard type
Note) Please ask us about types without front resetting.
2 Backlight type
DIN HALF SIZE
LCD COUNTER
LC2H
Counters
No. digits Counting speed Front reset Input method Part No.
8 digits
2 kHz/30 Hz switchable
Yes
Non-voltage input type LC2H-FE-2KK
Voltage input type (4.5 to 30 V DC) LC2H-FE-DL-2KK
30 Hz Free voltage input type (24 to 240 V AC/DC) LC2H-FE-FV-30
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz/30 Hz switchable Yes Voltage input type (4.5 to 30 V DC) LC2H-FE-DL-2KK-B
Panel mounting type
One-touch installation type
Panel mounting type
Installation frame type
PC board mounting type
Features
1. 8.7 mm .343 inch Character Height
(previously 7 mm)
Easy-to-read character height increased
from 7 mm to 8.7 mm
.276 inch to .343
inch .
2. Plenty of Digits
3. Counting Speed Switchable
between 2 kHz and 30 Hz
4. Panel Mounting Type Features
2 Installation Methods
Comes with very easy one-touch
installation type and also installation
frame type that uses the bracket on the
timer/counter. Choose a method that
suits the application.
5. Battery Replacement Easy on
Environment
To replace battery simply remove body
for the one-touch installation type, and
remove battery lid for the installation
frame type.
6. Screw Terminals Designed for
Safety
Built in finger protection.
7. Panel Covers Replacable
(Standard color is ash gray.)
Change the panel design by replacing
with a black panel cover.
8. Conforms to IP66 Protective
Construction (Only installation frame
type.) (Front panel surface)
9. Input Methods
1) Non-voltage input method
2) Voltage input method
3) Free voltage input method
10. Backlight Type Added to Series
and Now 2-color Switchable (green/
red)
Easy viewing even in dark places and
switchable between green and red
(Voltage input type).
11. Compliant with UL, c-UL and CE.
8.7mm
.343inch
8 digits
Product chart
Type
Installation type
Standard type Backlight type
Non-voltage input type
Voltage input type
(4.5 to 30 V DC)
Free voltage input type
(24 to 240 V AC/DC)
Voltage input type
(4.5 to 30 V DC)
Panel
mounting
type One-touch installation type ⅜ ⅜ ⅜ ⅜
Installation frame type ⅜ ⅜ ⅜ ⅜
PC board mounting type ⅜ — — —
