LC2H
Options
For LC2H total counter
(installation frame type)

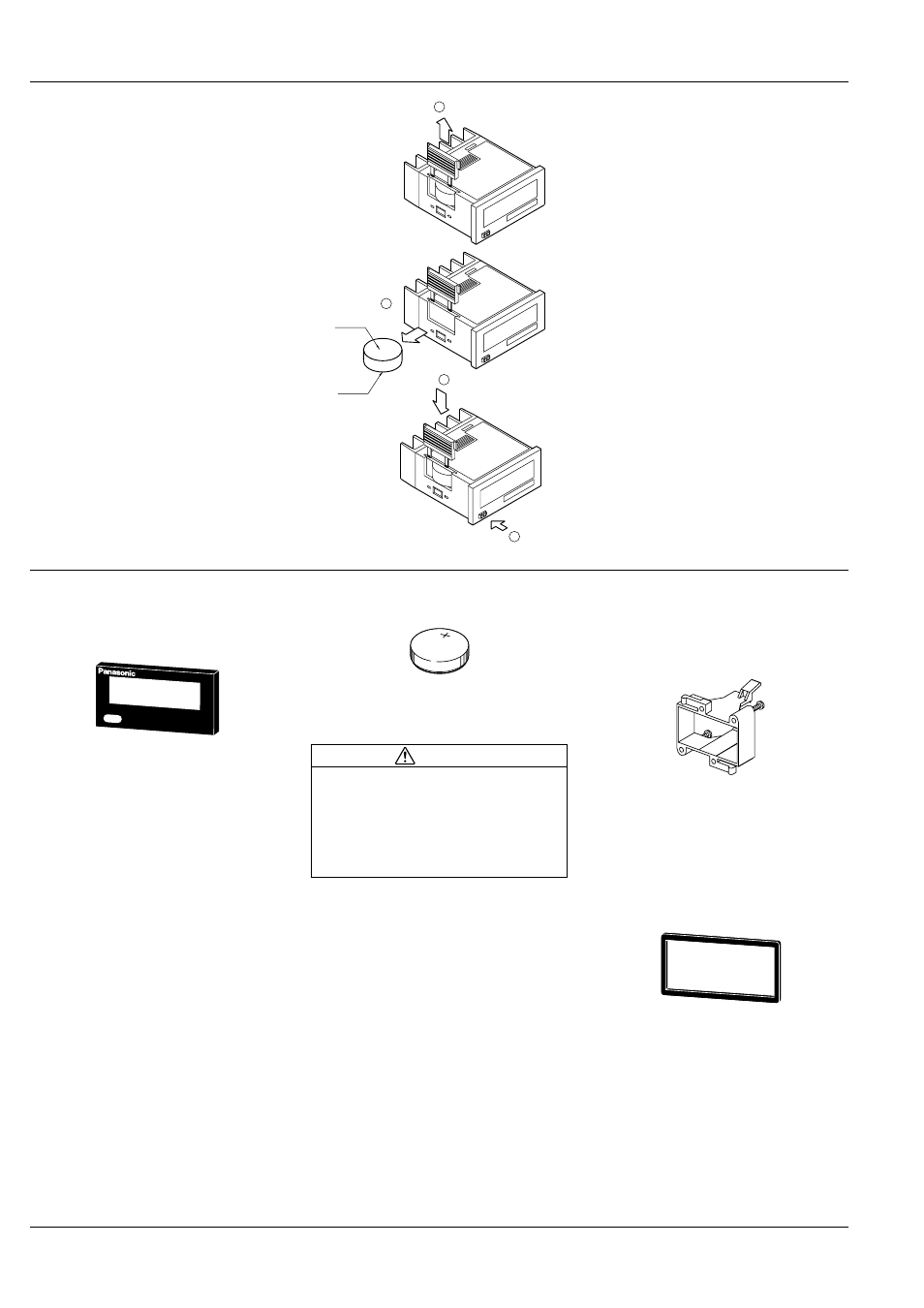

(1) Remove the battery cover from the
case.
(2) Remove the battery from the side of
the case. The battery will come
loose if you put the battery side face
down and lightly shake the unit.
(3) Before inserting wipe clean the
surface of the new battery.
(4) Insert the new battery with the “+”
and “–” sides in the proper position.
(5) After replacing the battery, return
the battery cover to the case. Verify
that the hook of the battery cover is
properly engaged.
(6) Before using press the reset button
on the front.
6. Terminal connection
Tighten the terminal screws with a torque
of 0.8 N·cm or less.
1
“ −” side
“ +” side
2
6
5
1. Accessories (for LC2H total
counter)
Panel cover (black)
Part No.: AEL3801
You can change the design of the front
panel by replacing it with this black panel
cover. The counter comes with an ash
gray panel cover as standard.
Note: No panel cover accessory (black) is available
for the LC2H preset counter.
2. Lithium battery (3 V)
Part No.: ATH3802
Packaged with the LC2H (excluding the
PC board mounting type).
3. Installation parts
Mounting frame
(Suitable for installation frame type LC2H
total counter and LC2H preset counter)
Part No.: ATH3803
Packaged with the mounting bracket type
LC2H total counter
Rubber gasket
(Suitable for installation bracket type
LC2H total counter and LC2H preset
counter)
Part No.: ATH3804
Packaged with the mounting bracket type
LC2H total counter
RESET
COUNTER
LC2H
Panasonic
CR2477
3V
JAPAN
Warning
• Make sure the “ +” and “−” polarities are
positioned correctly.
• Do not throw the old battery into a fire,
short circuit it, take it apart, or allow it to
come into contact with heat.
• The battery is not rechargeable.
