LC2H

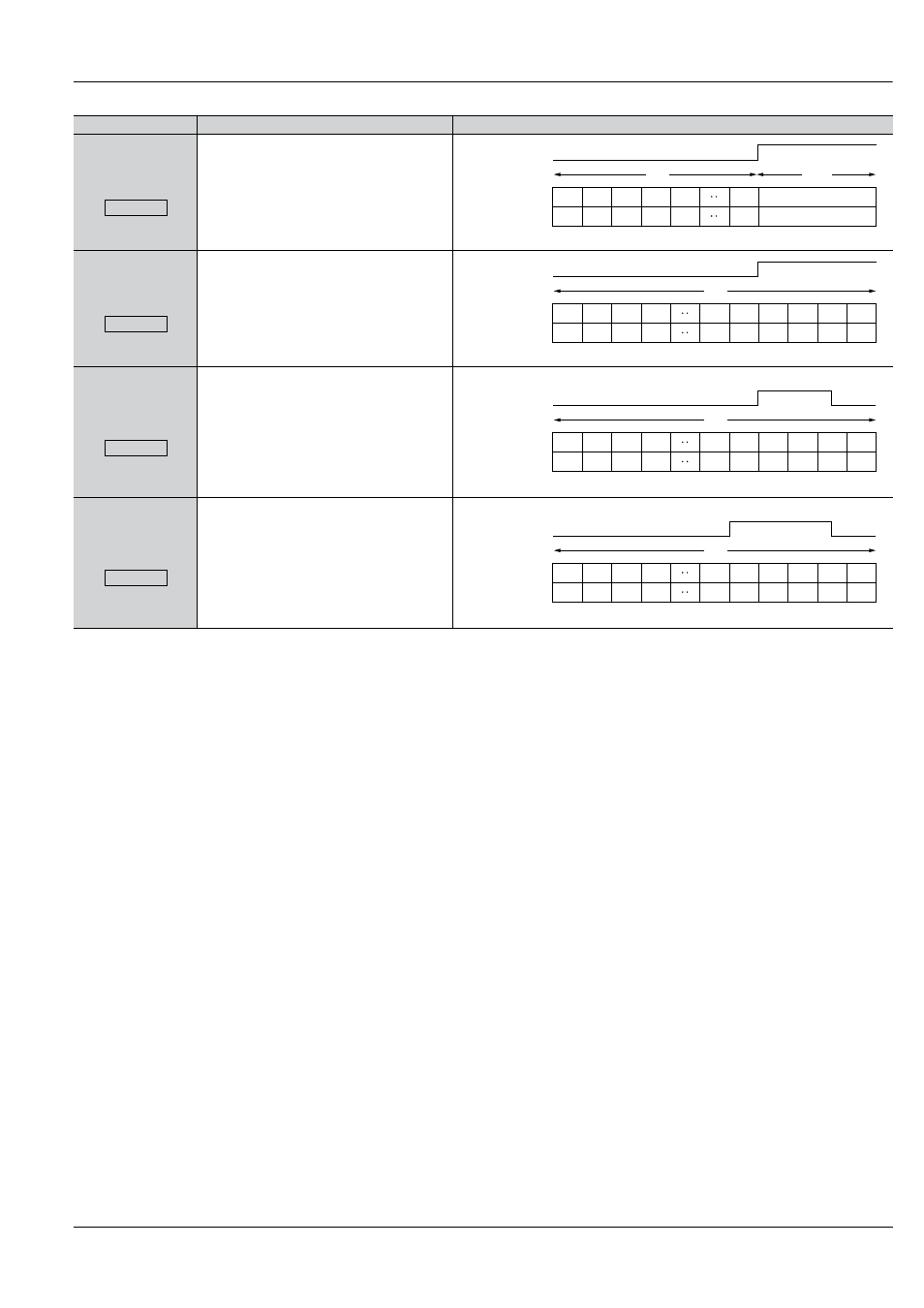

Operation mode
Output mode
Operation
Example when input mode is either addition or Subject:ubtraction
Output maintain/
hold count
Output control is maintained after count-up
completion and until resetting.
During that time, the count display does not
change from that at count-up completion.
Output maintain/
over count I
Output control is maintained after count-up
completion and until resetting. However,
counting is possible despite completion of
count-up.
One shot/
over count
Output control is maintained after count-up
completion for a fixed time (approx. 1 sec.).
Counting is possible despite completion of
count-up.
One shot/
recount I
Output control is maintained after count-up
completion for a fixed time (approx. 1 sec.).
Counting is possible despite completion of
count-up. However, reset occurs
simultaneous with completion of count-up.
While output is being maintained, restarting
of the count is not possible.
HOLD-A
n: Preset value
n
0
1
n–1
3
2
0
n
n–1
1
n–3
4
n–4
n–2
OFF
ON
Subtraction
Addition
Counting able/unable
Able
Output
Unable
HOLD-B
n: Preset value
n
n+1
n+2
n+3
0
1
n–2
n–1
3
2
0
–1
–2
–3
n
n–1
2
1
n–3
n–2
Subtraction
Addition
Counting able/unable
Output
OFF
ON
Able
SHOT-A
n: Preset value
n
n+1
n+2
n+3
0
1
n–2
n–1
3
2
0
–1
–2
–3
n
n–1
2
1
n–3
n–2
Subtraction
Addition
Counting able/unable
Output
OFF
ON
One shot pulse width: approx. 1 sec.
Able
SHOT-B
n: Preset value
n
n–1
n–2
n–3
n–4
0
1
n–1
3
2
0
1
2
3
4
n
n–1
1
n–3
n–2
Subtraction
Addition
Counting able/unable
Output
OFF
ON
Able
One shot pulse width: approx. 1 sec.
