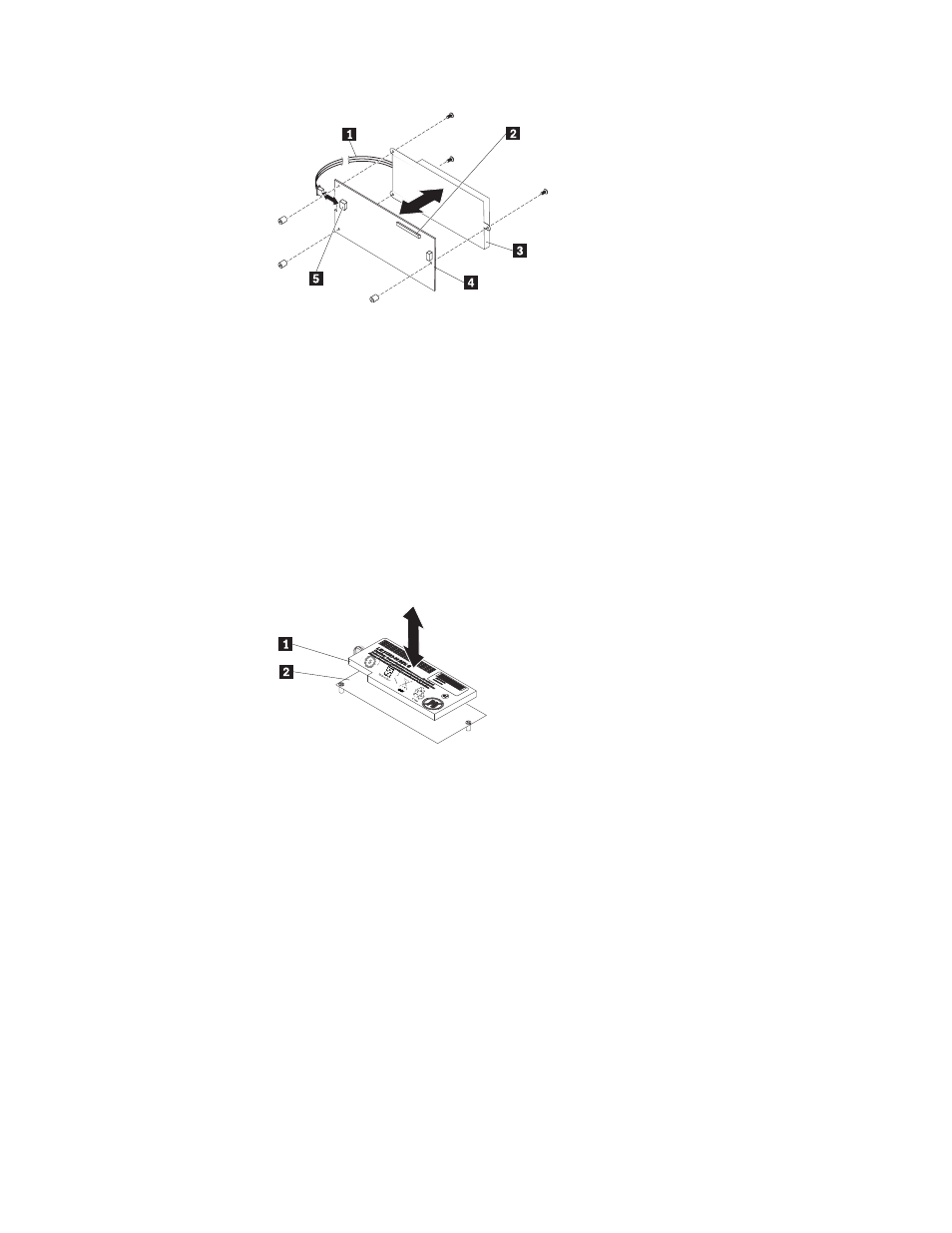

1
Battery
cable
2
Remote
battery
cable
connector
3
Battery
4
Battery
carrier
5
Battery
connector
6.
Disconnect
the
battery
cable
from
the
battery
cable
connector
on
the
battery
carrier.
7.
Remove
the
three
screws
that
attaches
the
battery
carrier
to
the
battery
and
remove
the
battery
from
the
battery
carrier.
Note:
If
your
battery
1
and
battery
carrier
2
are
attached
with
a
clip,
squeeze
the
clip
on
the
side
of
the
battery
carrier
to
remove
the
battery
from
the
battery
carrier.
If
you
are
instructed
to
return
the
RAID
adapter
battery,
follow
all
packaging
instructions,
and
use
any
packaging
materials
for
shipping
that
are
supplied
to
you.
Installing
a
RAID
adapter
remotely
in
the
server
When
you
install
any
RAID
adapter
that
come
with
batteries
in
the
PCI
slot
1
and
PCI
slot
2,
it
is
sometimes
necessary
to
install
the
batteries
in
another
location
in
the
server
to
prevent
the
batteries
from
overheating.
The
batteries
must
be
installed
only
on
top
of
the
microprocessor
2
air
baffle.
To
install
the
RAID
adapter
battery
in
the
server,
complete
the
following
steps:
1.
Read
the
safety
information
in
and
2.
Turn
off
the
server
and
peripheral
devices
and
disconnect
all
power
cords.
3.
Remove
the
cover
(see
4.
Route
the
remote
battery
cable
through
the
notches
on
the
microprocessor
2
air
baffle.
Attention:
Make
sure
that
the
cable
is
not
pinched
and
does
not
cover
any
connectors
or
obstruct
any
components
on
the
system
board.
5.
Install
the
battery
on
the
microprocessor
2
air
baffle:
106
ThinkServer
RD210
Types
3795,
3796,
3818,
and
3819:
Installation
and
User
Guide
