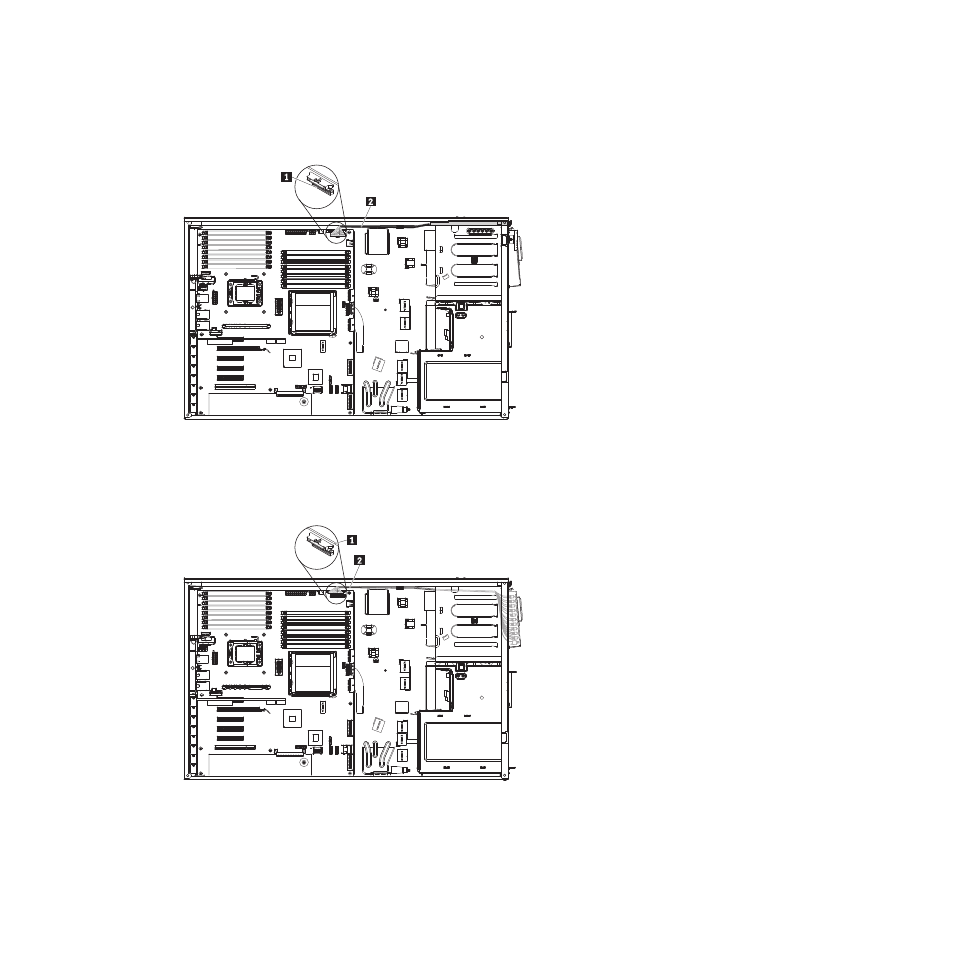

The following illustration shows the internal cable routing and connectors from the
operator information panel to the system board.
1
Operator information panel cable connector
2
Operator information panel cable
The following illustration shows the internal cable routing and connectors from the
EasyLED diagnostics panel to the system board.
1
EasyLED cable connector
2
EasyLED cable
