-55-
Group Settings Description
Groups Specify the VLAN group for member port configuration
Port Specify the port to be added into or deleted from the specified group.
N - unchanged
Add - add the port into member port list of the group
Del - delete the port from member list of the group
Apply Button to confirm the settings

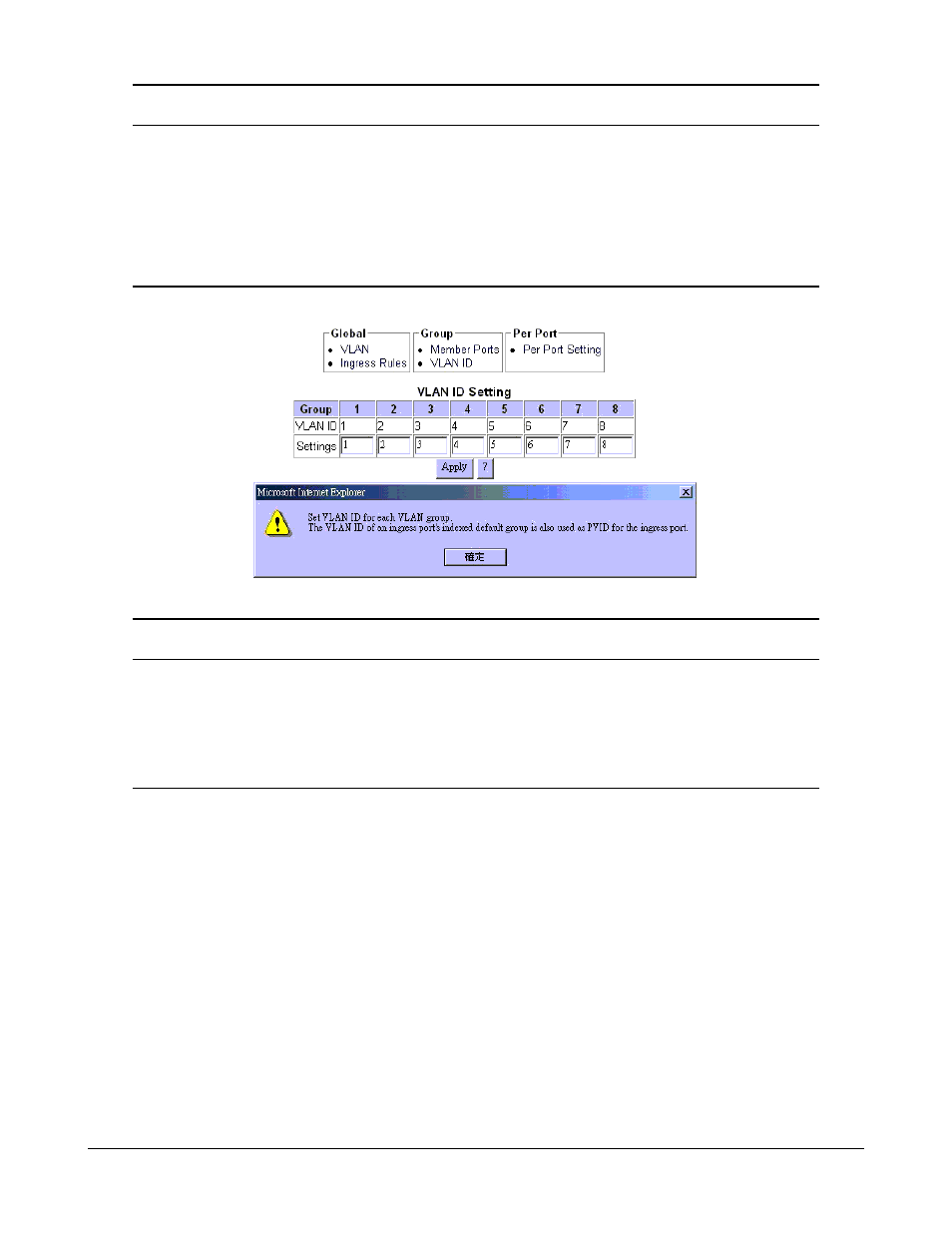

Group Settings Description
VLAN ID Current VLAN ID of each VLAN group
Settings Set new VLAN ID of VLAN group, valid values : 1 ~ 4095
? Button to view information about VLAN ID
Apply Button to confirm the settings
