1.6 Top Panel

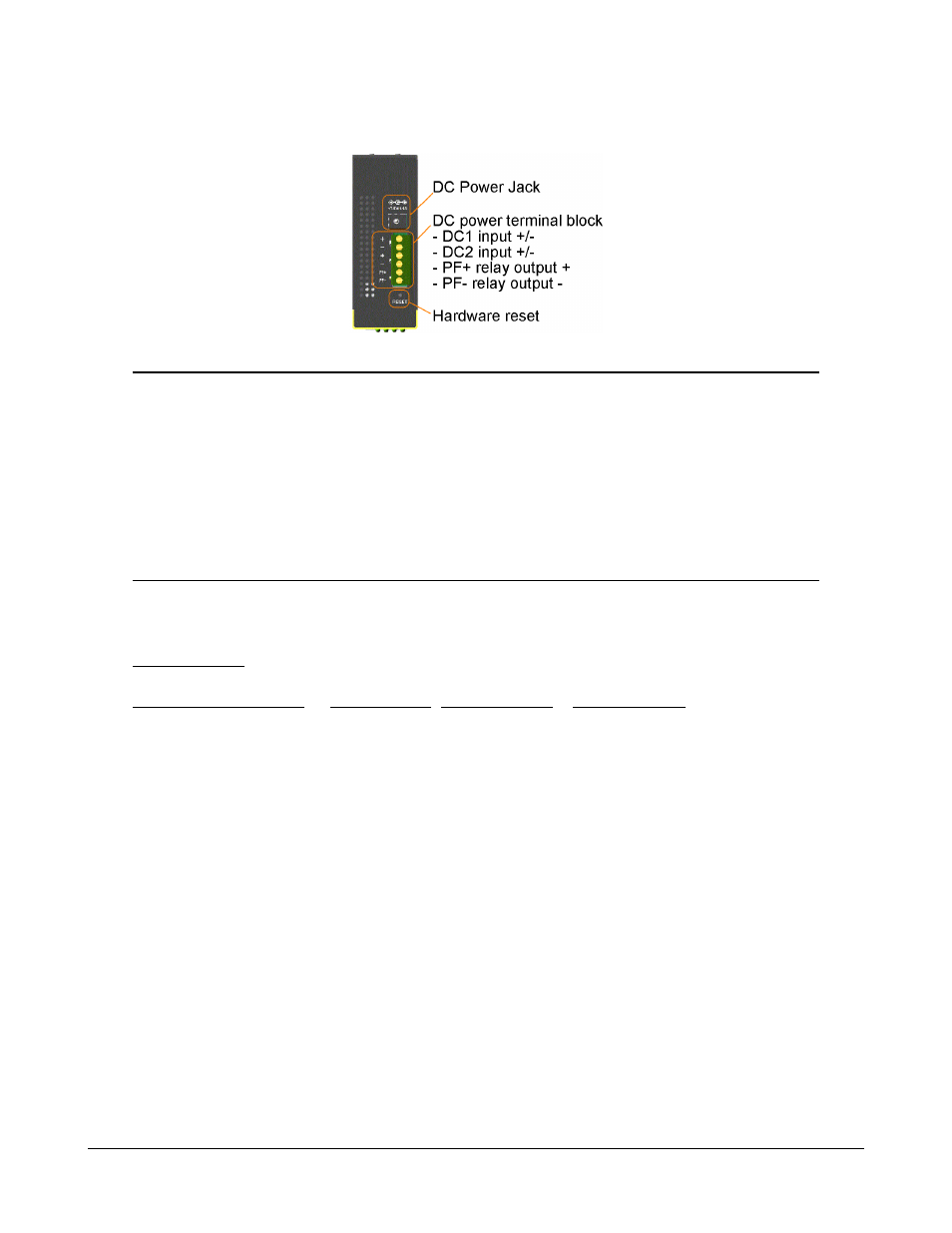

All three model series provide same top panel as figure shown below:
The main functions are:
DC Power Jack This connector is used when a AC-DC power adapter is used as a power
source to the switch.
Terminal Block This connector provides the following interfaces:
DC1 Positive(+) and Negative(-) - VDC power input from power system
DC2 Positive(+) and Negative(-) - VDC power cascaded to next device
PF Positive(+) and Negative(-) - Power failure relay output
Reset Hardware reset push button
1.7 Specifications
Network Ports
Switched Port Number Model 800M 800M-1 series 800M-2 series
Port 1 10/100TX 10/100TX 10/100TX
Port 2 10/100TX 10/100TX 10/100TX
Port 3 10/100TX 10/100TX 10/100TX
Port 4 10/100TX 10/100TX 10/100TX
Port 5 10/100TX 10/100TX 10/100TX
Port 6 10/100TX 10/100TX 10/100TX
Port 7 10/100TX 10/100TX 10/100TX
100FX
Port 8 10/100TX 10/100TX 10/100TX
100FX 100FX
Note: 10/100TX - TP RJ-45, 100FX - Fiber
