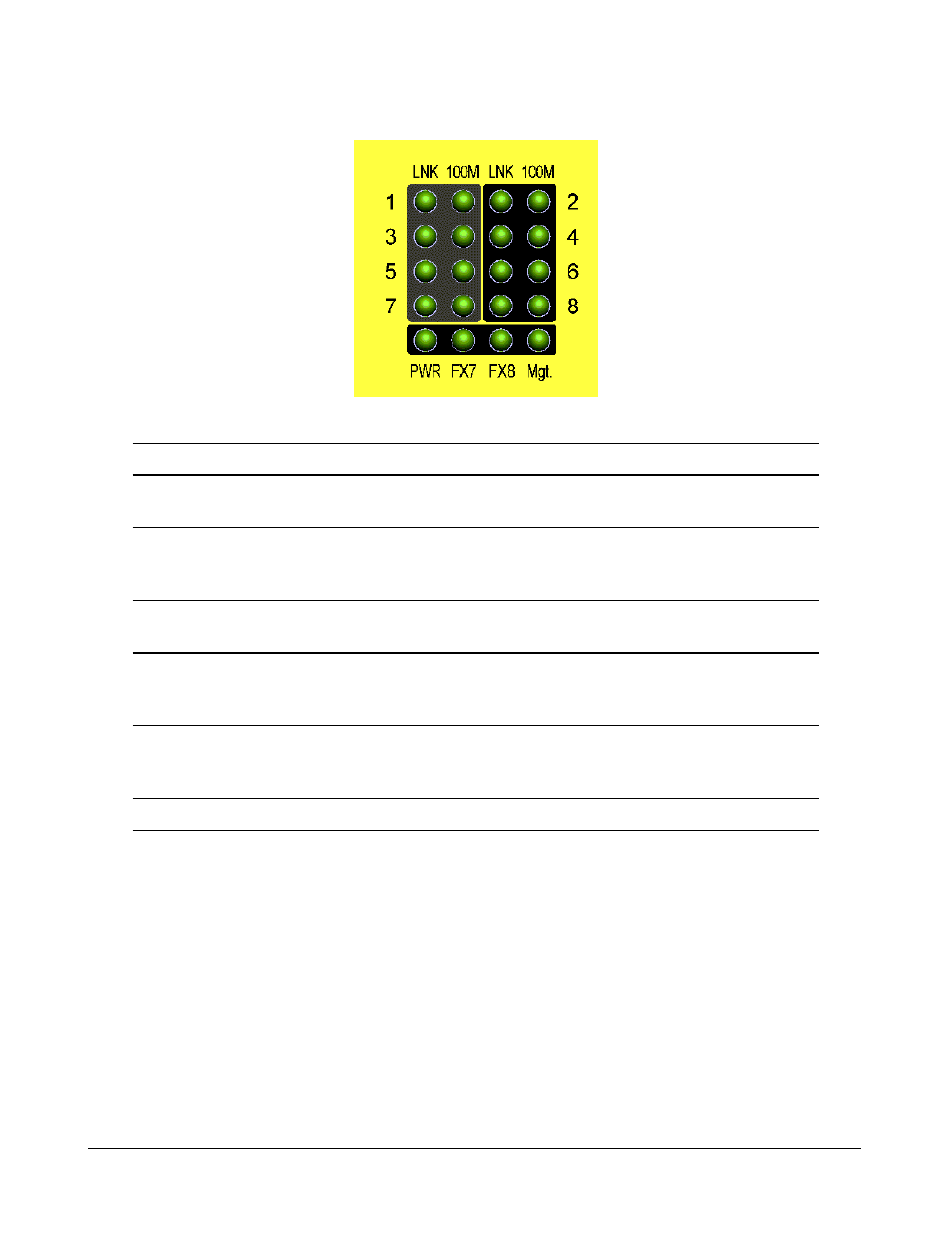

2.10 LED Indication
LED Function State Interpretation
PWR Power status ON The power is supplied to the switch.
OFF The power is not supplied to the switch.
LNK Port link status ON An active link is established on the port. (No traffic)
BLINK Port link is up and there is traffic.
OFF
Port link is down.
100M Port speed status ON 100Mbps
OFF 10Mbps
FX7 FX7 link status ON FX7 port is link up.
BLINK Port link is up and there is traffic.
OFF
Port link is down.
FX8 FX8 link status ON FX8 port is link up.
BLINK Port link is up and there is traffic.
OFF
Port link is down.
Mgt. Factory Reserved Ignore the indication.
