A.16 tracvision mobile receiver user’s guide, Destacker (dual-output), Digital video recorder (dvr) – KVH Industries antenna system User Manual
Page 111: This receiver controls satellite selection, Stacked signal stacked signal, Unstacked signals
C AU T I O N
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device must not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
S -VIDEO
VIDEO AUDIO L AUDIO R
RF
REMOTE
INPUT
DIGITAL
AUDIO
OUT
TO
110W/HD
CONVERTER
TO KVH
ANTENNA
POWER (10-16V DC)
MAINTENANCE PORTS
USB
RS232
FUSE (8A)
Tested to comply
with FCC Standards
SATELLITE IN 1
OUT TO TV
TV ANT/CABLE IN
(NOT SATELLITE)
R
L
AUDIO
VIDEO
S-VIDEO
DIGITAL
AUDIO OUT
PHONE JACK
SATELLITE IN 2
SATELLITE IN
2
1
To Antenna
Mobile Receiver
Splitter
Stacked Signal
Stacked
Signal
Destacker
(Dual-output)
Unstacked
Signals
SECONDARY
PRIMARY
ANTENNA
Digital Video Recorder (DVR)
INPUT
To RECEIVER
2
1
To TV
54-0376
A.16
TracVision Mobile Receiver User’s Guide

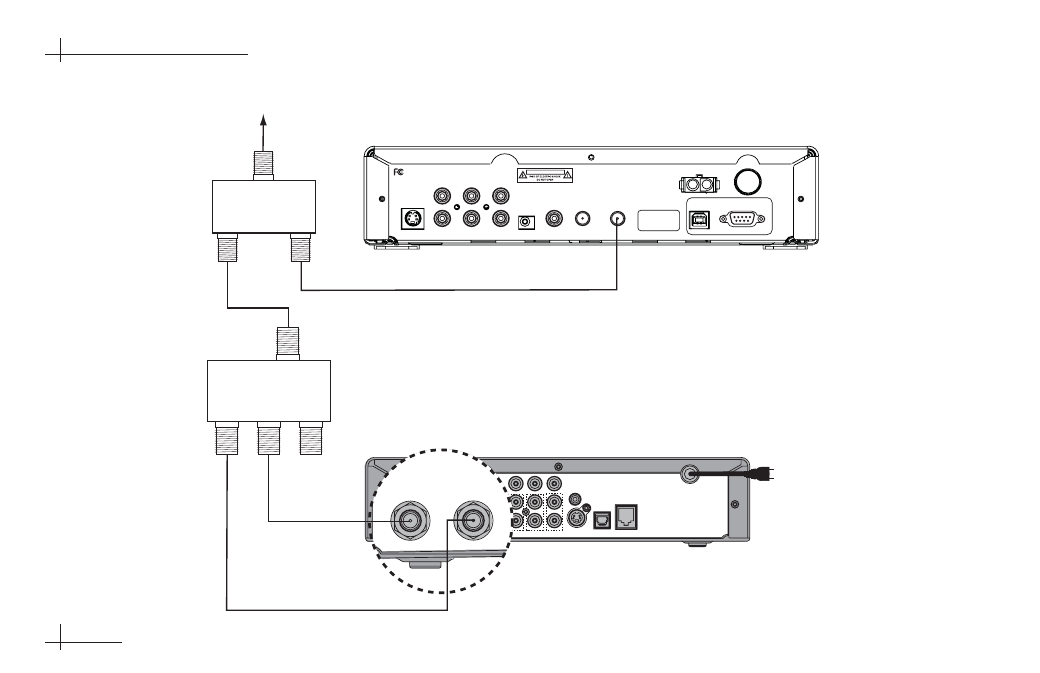

Wiring Diagram for One TracVision Mobile Receiver and One Digital Video Recorder (DVR)
This receiver
controls satellite
selection
