TracVision Mobile Receiver User’s Guide
54-0376
A.6
C AU T I O N
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device must not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
S -VIDEO
VIDEO AUDIO L AUDIO R
RF
REMOTE
INPUT
DIGITAL
AUDIO
OUT
TO
110W/HD
CONVERTER
TO KVH
ANTENNA
POWER (10-16V DC)
MAINTENANCE PORTS
USB
RS232
FUSE (8A)
Tested to comply
with FCC Standards
C AU T I O N
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device must not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
S -VIDEO
VIDEO AUDIO L AUDIO R
RF
REMOTE
INPUT
DIGITAL
AUDIO
OUT
TO
110W/HD
CONVERTER
TO KVH
ANTENNA
POWER (10-16V DC)
MAINTENANCE PORTS
USB
RS232
FUSE (8A)
Tested to comply
with FCC Standards
To Antenna
Primary Mobile Receiver
Splitter
Secondary Mobile Receiver
SECONDARY
PRIMARY
ANTENNA
Stacked
Signals

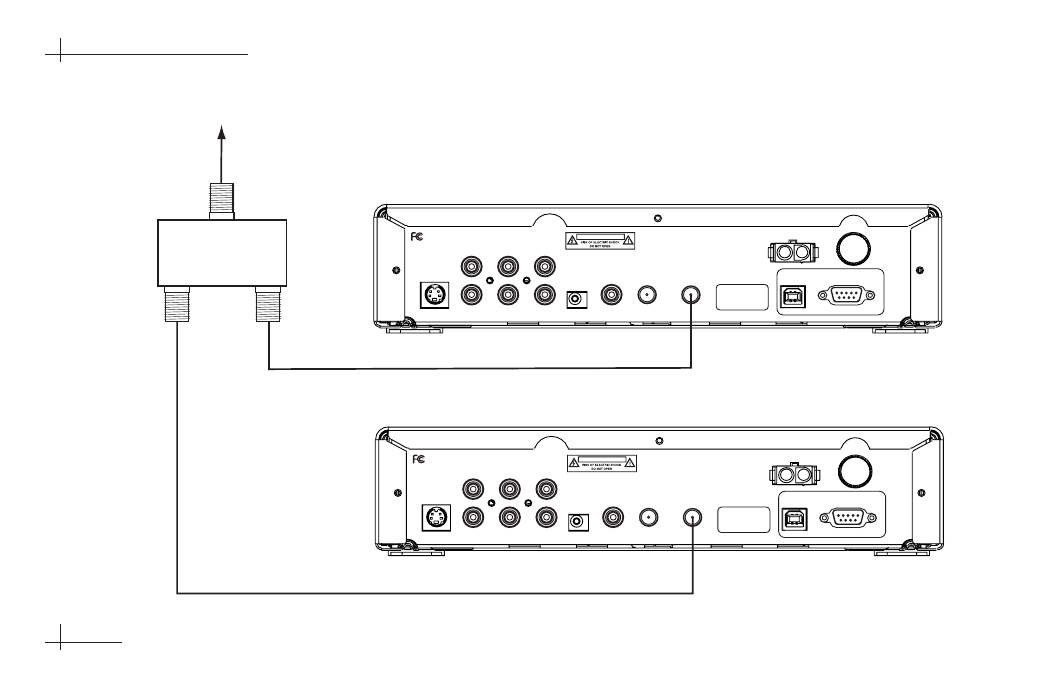

Wiring Diagram for Two TracVision Mobile Receivers
This receiver controls
satellite selection
