KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.5

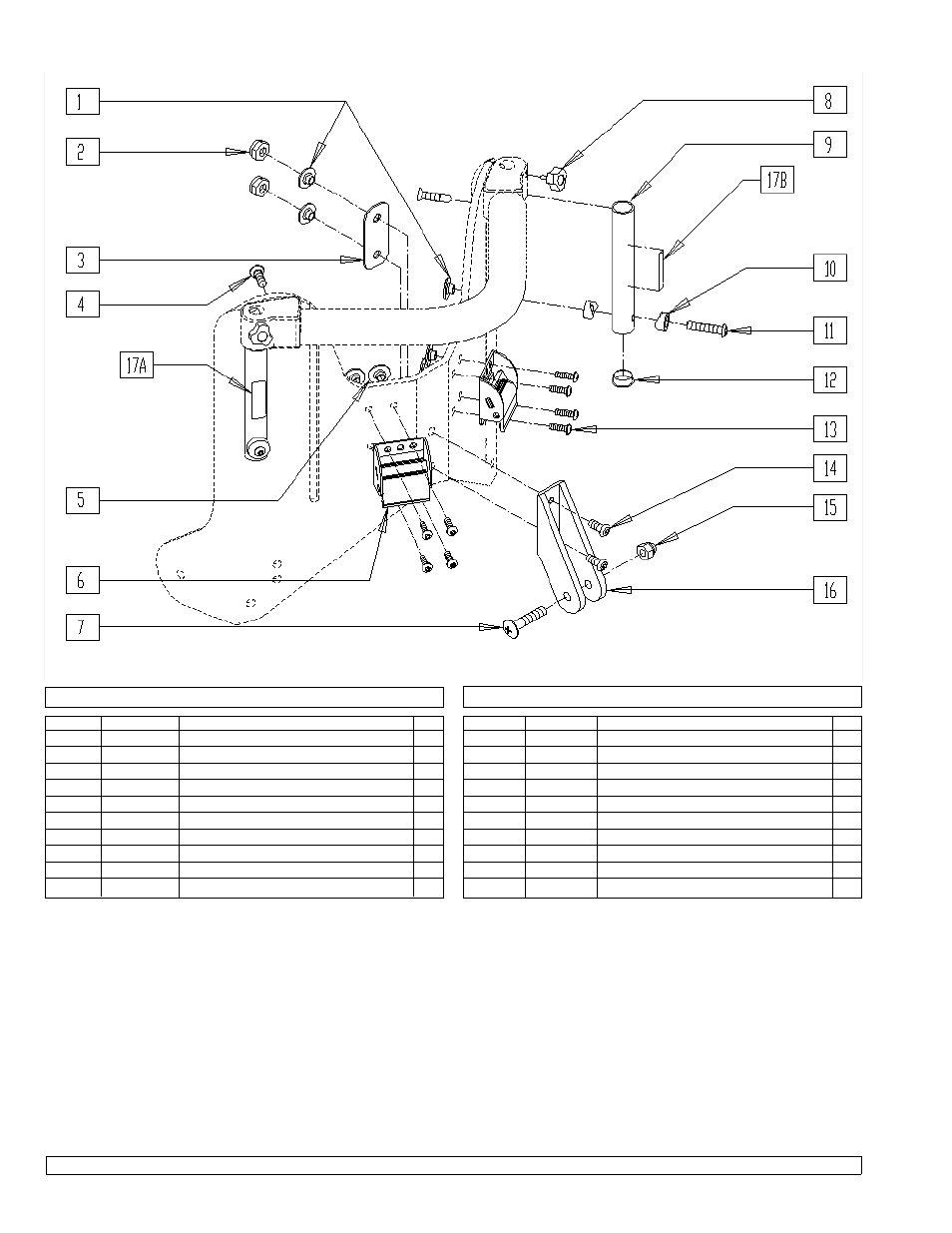

REAR SHELL ATTACHMENTS
ITEM NUMBER DESCRIPTION QTY
12 560741 INSERT PLUG 3/4” - RIBBED 2
13 220116 MACH SCREW #10-24 x 3/8 SBHCS ANS 8
14 9611000912 MACH SCREW 1/4-20 x 3/4 SBHCS ANS 2
15 9651001015 ACORN NUT 5/16-18 ZPS 1
16 9510305002 UPPER RECLINE MOUNT 1
17A 9931020102 LABEL: ‘WARNING: USE SEAT BELT’ 1
17B 9931030101 LABEL: ‘CAUTION: NEVER LEAVE CHILD’ 1
9-12,17A 920673 BACK SHELL TUBE ASSY - ‘BELT’ LABEL
9-12,17B 920694 BACK SHELL TUBE ASSY - ‘CHILD’ LABEL
1-3,7,14-16 920674 UPPER RECLINE MOUNT ASSEMBLY
5, 6, 13 920675 CAM ADJUSTER w/HDWR - TRANSIT
ITEM NUMBER DESCRIPTION QTY
1 9681120104 T-NUT 1/4-20 x 1/4 ROUND ZPS 4
2 9650701012 NYLOCK NUT, LOW 1/4-20 ZPS 2
3 9510301002 RECLINE BACKING PLATE 1
4 226347 SMS #10-16 x 1-1/4 FHP, SELF-TAP ZPS 2
5 102688 T-NUT #10-24 LOW 3-PRONG 8
6 9341150001 CAM ADJUSTER 1-1/2"- TRANSIT 2
7 9619101124 MACH SCREW 5/16-18 x 1-1/2 THP ZPS 1
8 9761100002 KNOB #10-24 x 1/2 - MALE, BLACK 2
9 9451118801 SHELL BACK TUBE - XP 2
10 561003 SADDLE OFFSET 3/4” - THIN 4
11 9611000920 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANS 2
