KID KART PARTS MANUAL PAGE 1.28 MAY 2007 A.R.T. GROUP

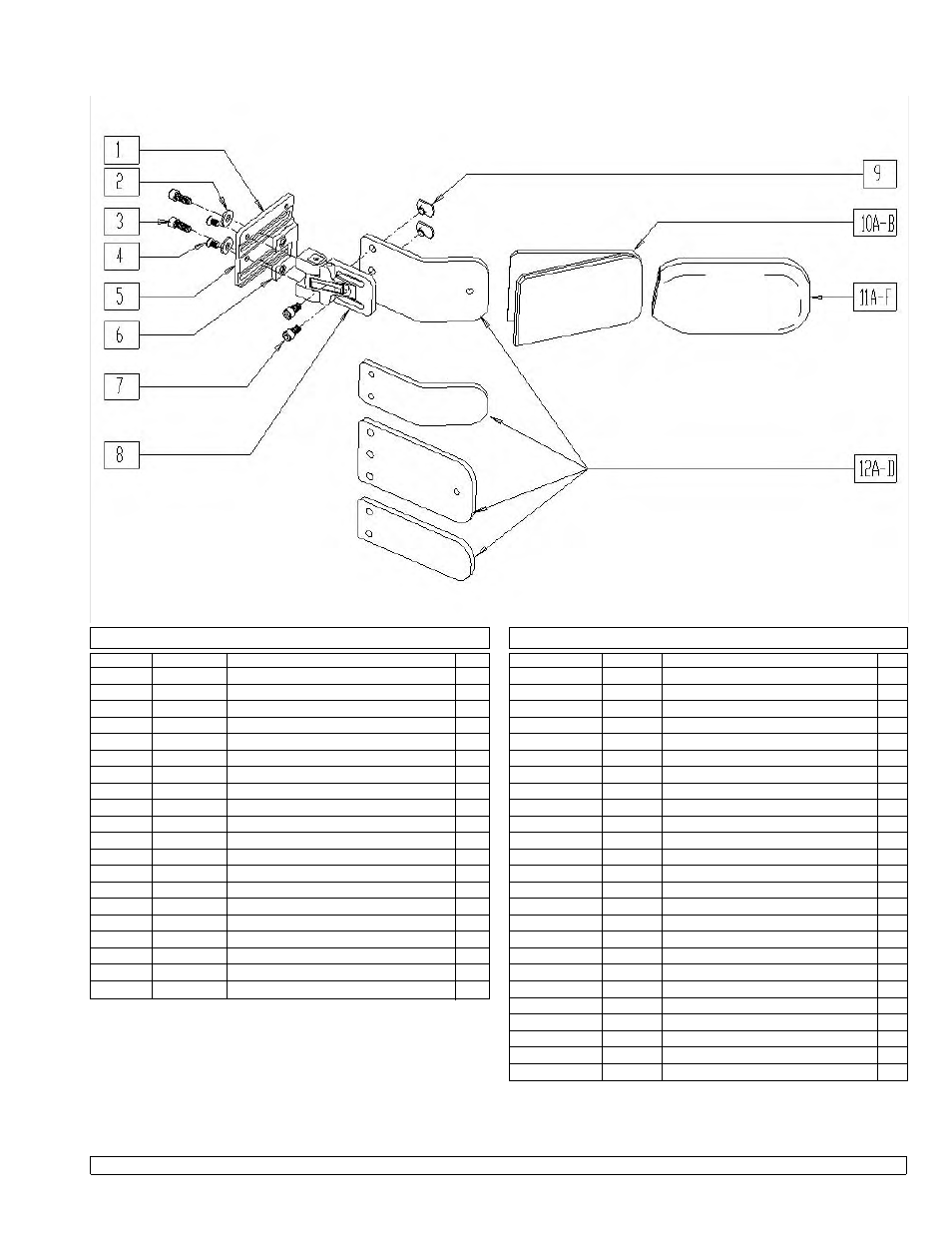

SWING-AWAY LATERAL
TRUNK SUPPORT
XPRS0X29
ITEM NUMBER DESCRIPTION QTY
LEFT-HAND ASSEMBLIES
1-9,10A,11A,12A 103591 S-A LAT CONTOUR - L, 2-3/4” - NAVY 1
1-9,10A,11A,12C 103589 S-A LAT PLANAR - L, 2-3/4” - NAVY 1
1-9,10A,11B,12A 103600 S-A LAT CONTOUR - L, 2-3/4” - GRAY 1
1-9,10A,11B,12C 103598 S-A LAT PLANAR - L, 2-3/4” - GRAY 1
1-9,10A,11C,12A 102697 S-A LAT CONTOUR - L, 2-3/4” - BLACK 1
1-9,10A,11C,12C 102693 S-A LAT PLANAR - L, 2-3/4” - BLACK 1
1-9,10B,11D,12B 103590 S-A LAT CONTOUR - L, 1-3/4” - NAVY 1
1-9,10B,11D,12D 103588 S-A LAT PLANAR - L, 1-3/4” - NAVY 1
1-9,10B,11E,12B 103599 S-A LAT CONTOUR - L, 1-3/4” - GRAY 1
1-9,10B,11E,12D 103597 S-A LAT PLANAR - L, 1-3/4” - GRAY 1
1-9,10B,11F,12B 102695 S-A LAT CONTOUR - L, 1-3/4” - BLACK 1
1-9,10B,11F,12D 102691 S-A LAT PLANAR - L, 1-3/4” - BLACK 1
RIGHT-HAND ASSEMBLIES
1-9,10A,11A,12A 103596 S-A LAT CONTOUR - R, 2-3/4” - NAVY 1
1-9,10A,11A,12C 103594 S-A LAT PLANAR - R, 2-3/4” - NAVY 1
1-9,10A,11B,12A 103607 S-A LAT CONTOUR - R, 2-3/4” - GRAY 1
1-9,10A,11B,12C 103604 S-A LAT PLANAR - R, 2-3/4” - GRAY 1
1-9,10A,11C,12A 102698 S-A LAT CONTOUR - R, 2-3/4” - BLACK 1
1-9,10A,11C,12C 102694 S-A LAT PLANAR - R, 2-3/4” - BLACK 1
1-9,10B,11D,12B 103595 S-A LAT CONTOUR - R, 1-3/4” - NAVY 1
1-9,10B,11D,12D 103593 S-A LAT PLANAR - R, 1-3/4” - NAVY 1
1-9,10B,11E,12B 103606 S-A LAT CONTOUR - R, 1-3/4” - GRAY 1
1-9,10B,11E,12D 103603 S-A LAT PLANAR - R, 1-3/4” - GRAY 1
1-9,10B,11F,12B 102696 S-A LAT CONTOUR -R, 1-3/4” - BLACK 1
1-9,10B,11F,12D 102692 S-A LAT PLANAR - R, 1-3/4” - BLACK 1
ITEM NUMBER DESCRIPTION QTY
1 102770 LATERAL PLATE - XP 1
2 262110-QU WASHER 1/4” FLAT THIN ANS 2
3 2294 MACH SCREW 1/4-20 x 5/16 SHCS ANS 2
4 9612120606 MACH SCREW #10-32 x 3/8 FHP ANS 2
5 9510104001 LATERAL BASE PLATE 2
6 102771 LATERAL NUTPLATE - XP 1
7 9610000908 MACH SCREW 1/4-20 x 1/2 SHCS ANS 2
8 9591010005 ADJ LATERAL SWING AWAY - XP 2
9 9683120104 T-NUT 1/4-20 x 1/4 SLOT BASE ZPS 2
10A 9490503111 LATERAL FOAM 2-3/4” 2
10B 9490502111 LATERAL FOAM 1-3/4” 2
11A 9170618101 LATERAL COVER 2-3/4” - NAVY 2
11B 9170612102 LATERAL COVER 2-3/4” - GRAY 2
11C 9170601101 LATERAL COVER 2-3/4” - BLACK 2
11D 9170618102 LATERAL COVER 1-3/4” - NAVY 2
11E 9170612103 LATERAL COVER 1-3/4” - GRAY 2
11F 9170601102 LATERAL COVER 1-3/4” - BLACK 2
12A 9553050302 LATERAL PLASTIC - CONTOUR 2-3/4” 2
12B 9553050202 LATERAL PLASTIC - CONTOUR 1-3/4” 2
12C 9553050301 LATERAL PLASTIC - PLANAR 2-3/4” 2
12D 9553050201 LATERAL PLASTIC - PLANAR 1-3/4” 2
Effective for models beginning May 2007, having a serial
number ending with the letter ‘A’... e.g. xxxxxx07122A
