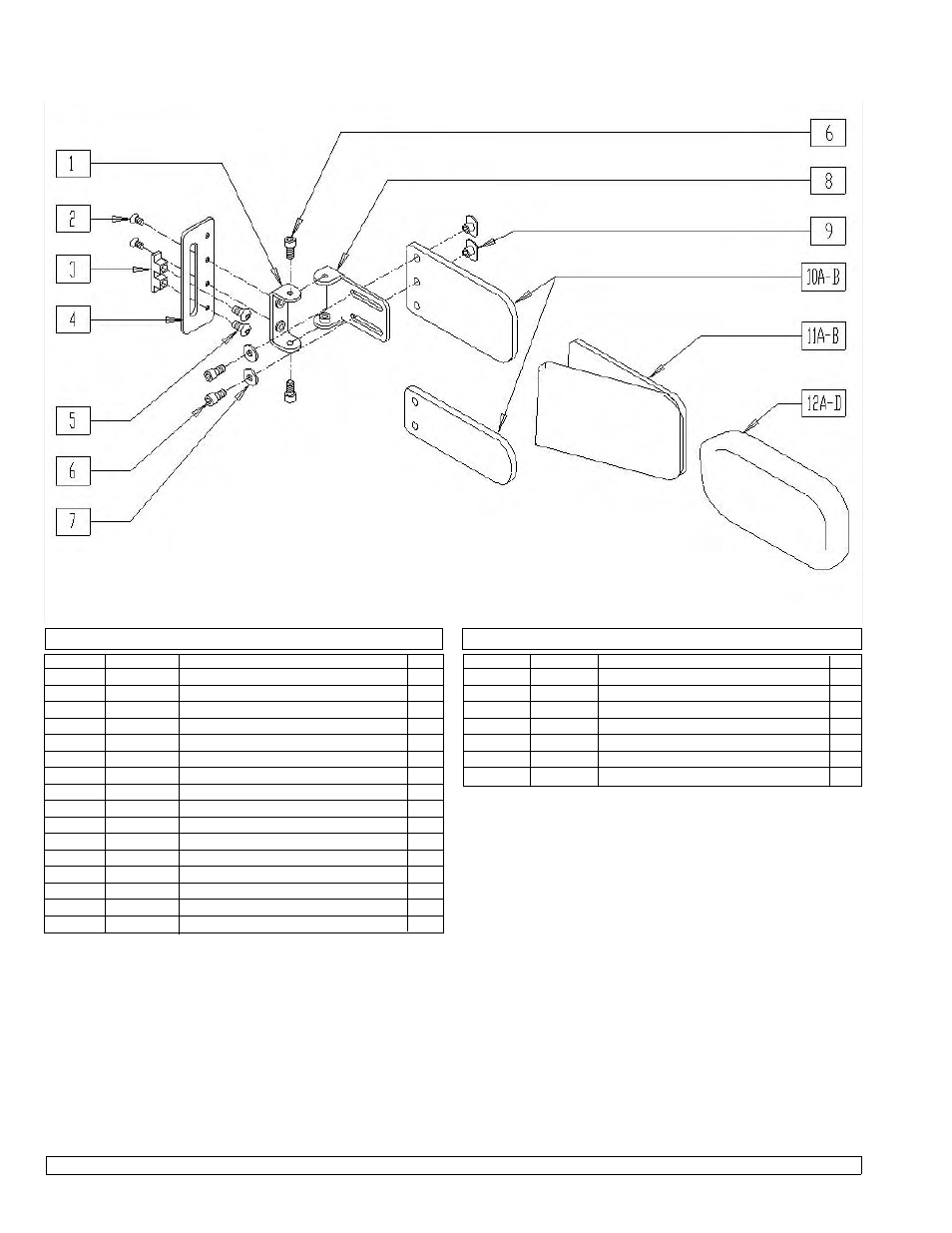

KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.25
NON-SWING-AWAY (FIXED)
LATERAL TRUNK SUPPORT
XPRS0X48
ITEM NUMBER DESCRIPTION QTY
1-11(A),12A 900033 FIXED LATERAL PLANAR 2-3/4” - NAVY SGL
1-11(A),12B 900034 FIXED LATERAL PLANAR 2-3/4” - GRAY SGL
1-11(B),12C 900035 FIXED LATERAL PLANAR 1-3/4” - NAVY SGL
1-11(B),12D 900036 FIXED LATERAL PLANAR 1-3/4” - GRAY SGL
1-11(A),12A 9161069305 FIXED LAT ASS’Y PLANAR 2-3/4” - NAVY PR
1-11(A),12B 9161069605 FIXED LAT ASS’Y PLANAR 2-3/4” - GRAY PR
1-11(B),12C 9161069306 FIXED LAT ASS’Y PLANAR 1-3/4” - NAVY PR
1-11(B),12D 9161069606 FIXED LAT ASS’Y PLANAR 1-3/4” - GRAY PR
ITEM NUMBER DESCRIPTION QTY
1 9510401004 FIXED LATERAL BASE 1
2 9612120606 MACH SCREW #10-32 x 3/8 FHP ANS 2
3 9530100001 LATERAL RETAINER 1
4 9510104001 LATERAL BASE PLATE 1
5 9611000908 MACH SCREW 1/4-20 x 1/2 SBHCS ANS 2
6 9610000908 MACH SCREW 1/4-20 x 1/2 SHCS ANS 4
7 262110-QU WASHER 1/4” FLAT THIN ANS 4
8 9510304002 FIXED LATERAL BLADE 1
9 9683120104 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPS 2
10A 9553050301 LATERAL PLASTIC PLANAR 2-3/4” 1
10B 9553050201 LATERAL PLASTIC PLANAR 1-3/4” 1
11A 9490503111 LATERAL FOAM 2-3/4” 1
11B 9490502111 LATERAL FOAM 1-3/4” 1
12A 9170618101 LATERAL COVER 2-3/4” - NAVY 1
12B 9170612102 LATERAL COVER 2-3/4” - GRAY 1
12D 9170618102 LATERAL COVER 1-3/4” - NAVY 1
12E 9170612103 LATERAL COVER 1-3/4” - GRAY 1
Effective for models prior to May 2007, having a serial
number without a letter at the end... e.g. xxxxxx07117
