KID KART PARTS MANUAL PAGE 1.26 MAY 2007 A.R.T. GROUP
NON-SWING-AWAY (FIXED)

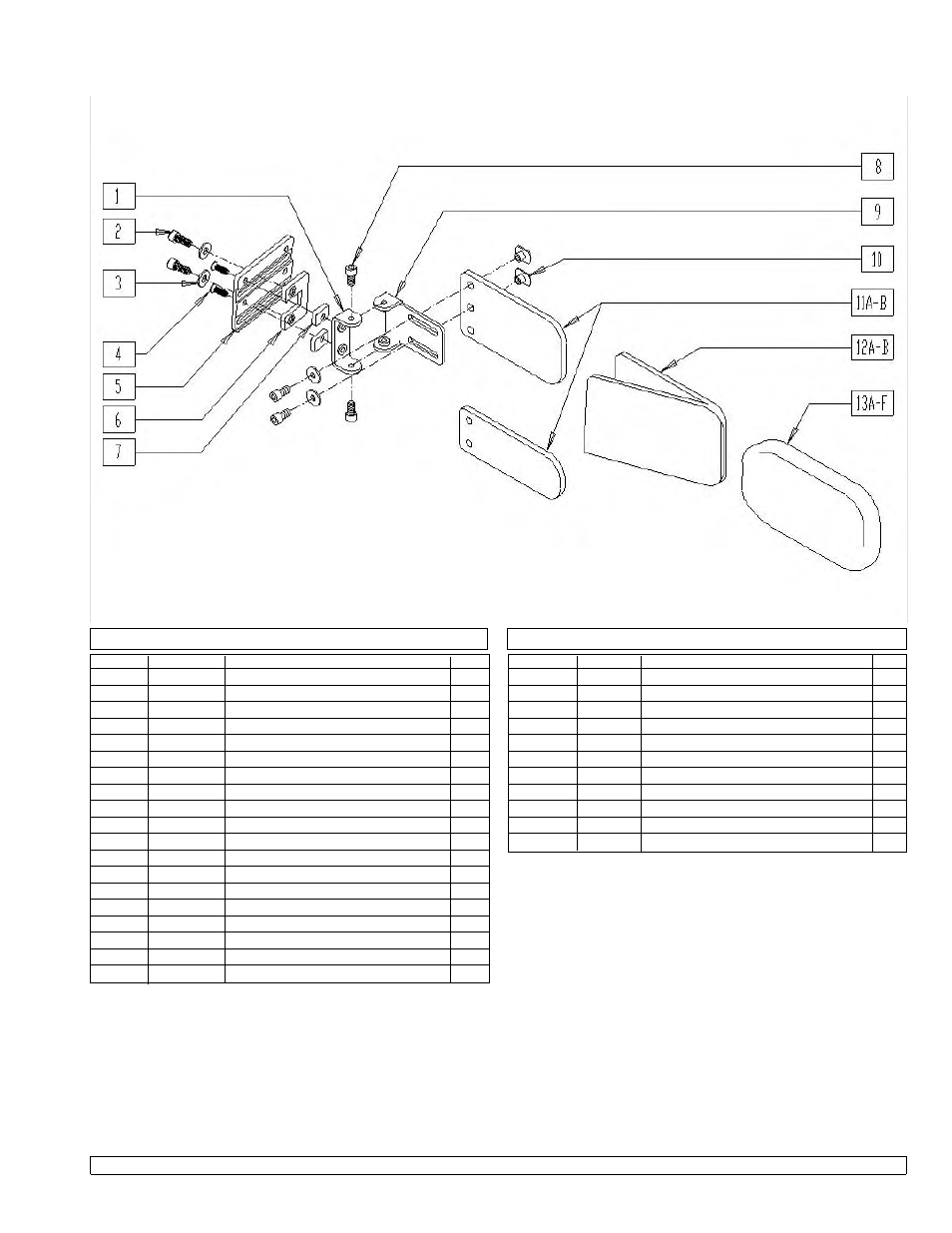

LATERAL TRUNK SUPPORT
XPRS0X53
ITEM NUMBER DESCRIPTION QTY
1-12(A),13A 103574 FIXED LAT - L, 2-3/4” - NAVY 1
1-12(A),13B 103572 FIXED LAT - R, 2-3/4” - NAVY 1
1-12(A),13C 103579 FIXED LAT - L, 2-3/4” - GRAY 1
1-12(A),13D 103576 FIXED LAT - R, 2-3/4” - GRAY 1
1-12(A),13E 102747 FIXED LAT - L, 2-3/4” - BLACK 1
1-12(A),13F 102745 FIXED LAT - R, 2-3/4” - BLACK 1
1-12(B),13A 103573 FIXED LAT - L, 1-3/4” - NAVY 1
1-12(B),13B 103571 FIXED LAT - R, 1-3/4” - NAVY 1
1-12(B),13C 103578 FIXED LAT - L, 1-3/4” - GRAY 1
1-12(B),13D 103575 FIXED LAT - R, 1-3/4” - GRAY 1
1-12(B),13E 102746 FIXED LAT - L, 1-3/4” - BLACK 1
1-12(B),13F 102744 FIXED LAT - R, 1-3/4” - BLACK 1
ITEM NUMBER DESCRIPTION QTY
1 9510401004 FIXED LATERAL BASE 1
2 2294 MACH SCREW 1/4-20 x 5/16 SHCS ANS 2
3 262110-QU WASHER 1/4” FLAT THIN ANS 4
4 9612120606 MACH SCREW #10-32 x 3/8 FHP ANS 2
5 102770 LATERAL PLATE 1
6 102771 LATERAL NUT PLATE 1
7 102772 FIXED LAT SPACER 2
8 9611000908 MACH SCREW 1/4-20 x 1/2 SHCS ANS 4
9 9510304002 FIXED LATERAL BLADE MOUNT 2
10 9683120104 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPS 2
11A 9553050301 LATERAL PLASTIC PLANAR 2-3/4” 1
11B 9553050201 LATERAL PLASTIC PLANAR 1-3/4” 1
12A 9490503111 LATERAL FOAM 2-3/4” 1
12B 9490502111 LATERAL FOAM 1-3/4” 1
13A 9170608101 LATERAL COVER 2-3/4” - NAVY
13B 9170608102 LATERAL COVER 1-3/4” - GRAY
13C 9170602102 LATERAL COVER 2-3/4” - BLACK
13D 9170602103 LATERAL COVER 1-3/4” - NAVY
13E 9170601101 LATERAL COVER 2-3/4” - GRAY 1
13F 9170601102 LATERAL COVER 1-3/4” - BLACK 1
Effective for models beginning May 2007, having a serial
number ending with the letter ‘A’... e.g. xxxxxx07122A
