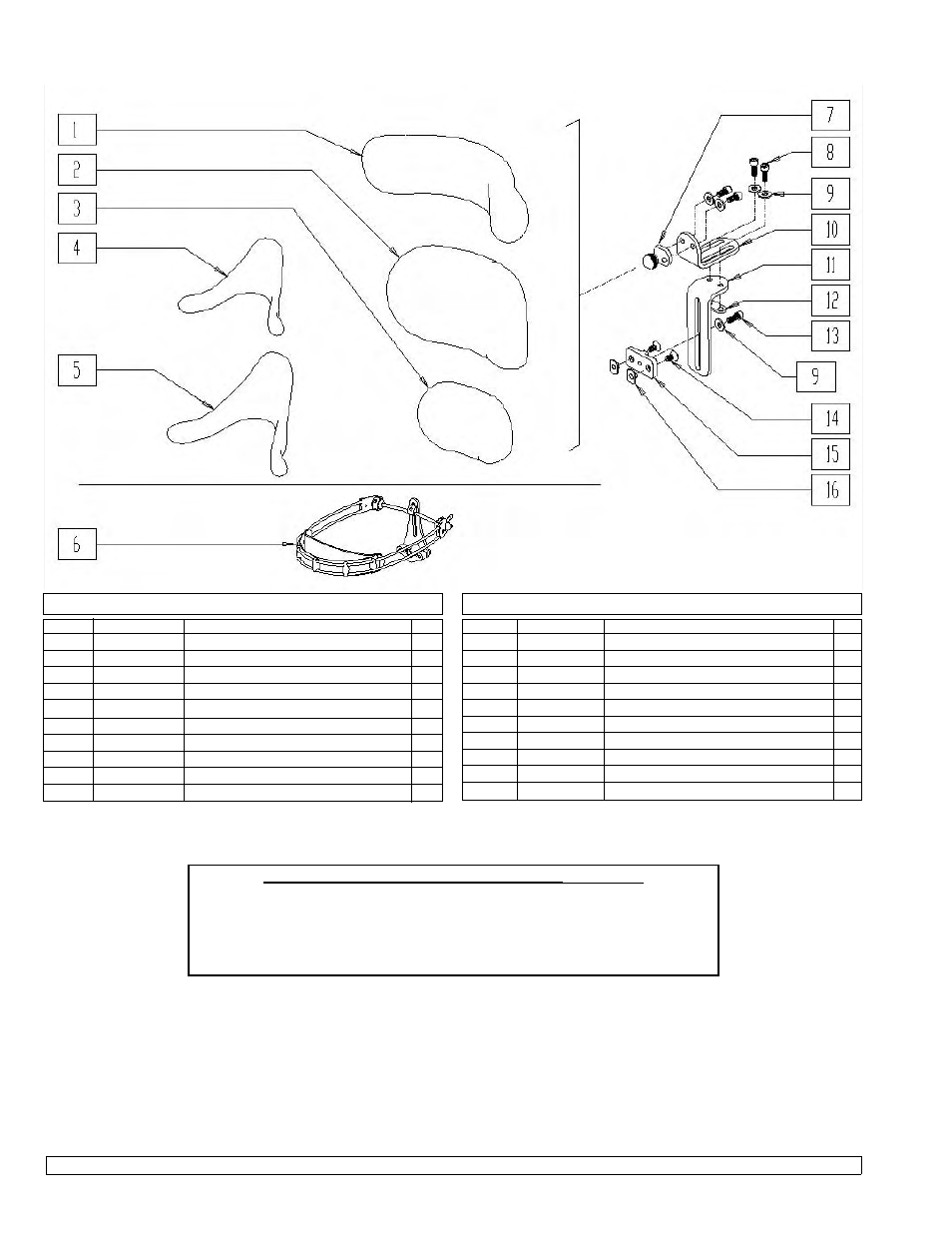

KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.37
WHITMYER HEAD SUPPORT
XPRS0X27
ITEM NUMBER DESCRIPTION QTY
12 WH-MF014754 NUT 1/4-28 SLIDE, DUAL - 3/4” CENTERS 1
13 2294 MACH SCREW 1/4-20 x 5/8 SHCS ANS 1
14 226072 MACH SCREW 1/4-20 x 1/2 FHCSS ANS 2
15 102753 HEAD SUPPORT MOUNT 1
16 9683120104 T-NUT 1/4-20 x 1/4 SLOT BASE ANS 2
7-16 102751 HEAD SUPPORT BRACKET ASSEMBLY
1, 7-16 102761 WB SML A-A-P PAD & BRACKET
2, 7-16 102758 WB 10” PLUSH PAD & BRACKET
3, 7-16 102754 WB 8” PLUSH PAD & BRACKET
4, 7-16 102759 WB SM C-C PAD & BRACKET
5, 7-16 102760 WB MED C-C PAD & BRACKET
ITEM NUMBER DESCRIPTION QTY
1 WH-P8044L ADJUST-A-PLUSH PAD NARROW LYCRA 1
2 WH-P1000L 10” PLUSH PAD” - LYCRA 1
3 WH-P800L 8” PLUSH PAD - LYCRA 1
4 WH-P200L CONTOUR CRADLE PAD - SM LYCRA 1
5 WH-P300L CONTOUR CRADLE PAD - MED LYCRA 1
6 WH-DFSQ30 DFS2 PED SINGLE PAD w/HARDWARE 1
7 WH-MF022100 1-1/4” SHORT SCREWBALL 2
8 WH-MF014600 MACH SCREW 1/4-28 x 5/8 SHCS 2
9 WH-MF014650 WASHER 1/4” SAE, BLACK 5
10 102757 HEAD SUPPORT - HORIZONTAL 1
11 102756 HEAD SUPPORT - VERTICAL 1
WHITMYER HEAD SUPPORT PAD SIZES (approximate)
1. Adjust-A-Plush: 15” wide x 3-1/4” tall x 0”-to-4” deep (adjustable), 2-1/2” thick
2. 10” Plush: 9-1/4” wide x 5” tall x 1-1/4” deep, 1-3/4” thick
3. 8” Plush: 7-1/2” wide x 5” tall x 1” deep, 1-3/4” thick
4. Contour Cradle - Small: 8-1/2” wide x 5-1/2” tall x 2-1/4” deep, 5/8” thick
5. Contour Cradle - Medium: 10” wide x 6-1/4” tall x 3-1/4” deep, 5/8” thick
Effective for models beginning May 2007, having a serial
number ending with the letter ‘A’... e.g. xxxxxx07122A
