KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.45

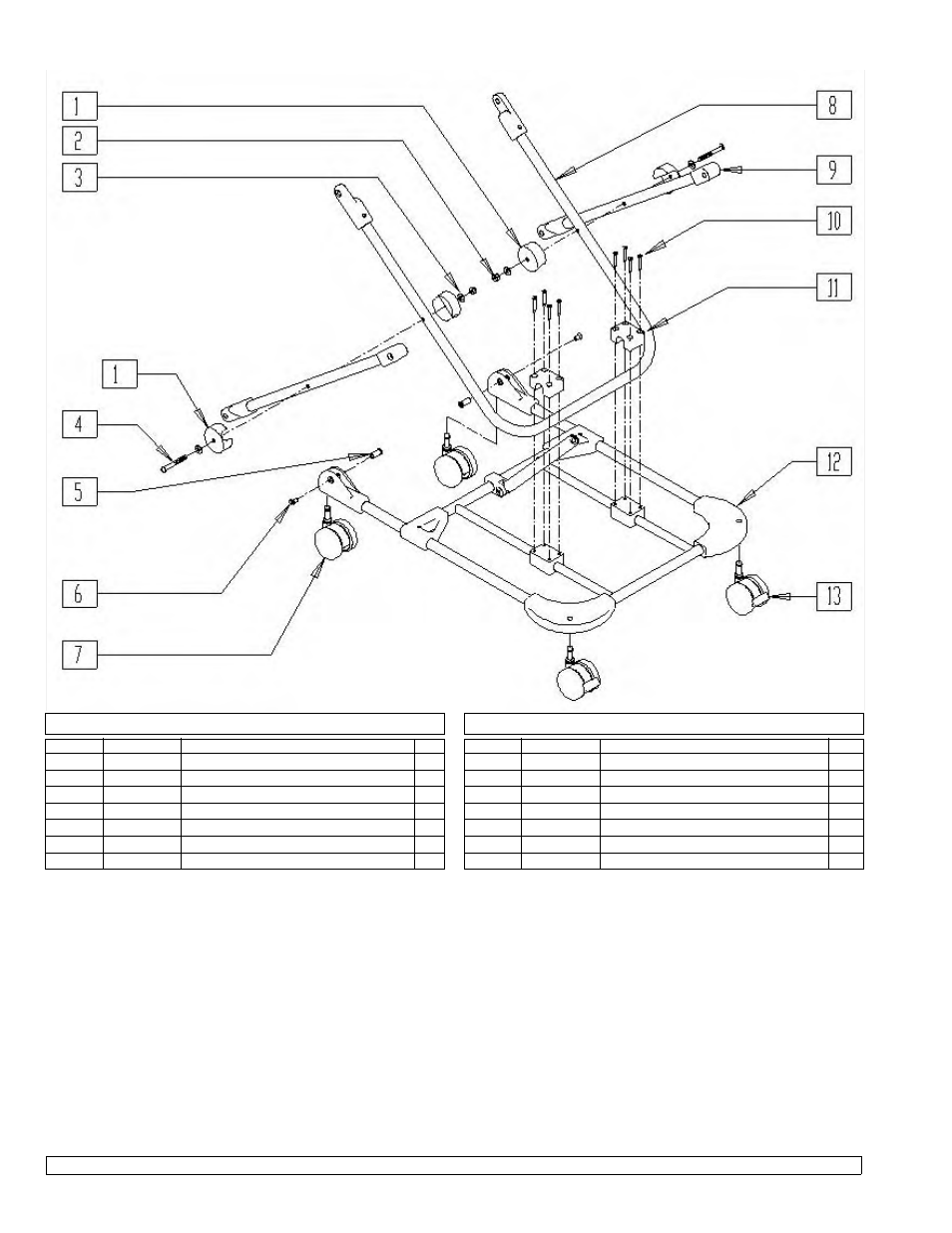

FRAME - BOOSTER BASE - BOTTOM & SIDE
XPRS0X40
ITEM NUMBER DESCRIPTION QTY
9 900074 INSIDE DIAGONAL ASSY BOOSTER 1
10 9625121024 SMS #10 x 1-1/2 FHP 8
11 9530201014 REAR HOOP BRACKET 2
12 900075 BASE FRAME ASSY - XP BOOSTER 1
13 9290212001 CASTER 2-3/8” w/BRAKE 2
1-4 900076 PIVOT BLOCK ASSY - XP BOOSTER
10-12 900077 BOTTOM FRAME ASSY - XP BOOSTER
1-13 900078 COMPLETE BOTTOM FRAME BOOSTER
ITEM NUMBER DESCRIPTION QTY
1 9530201012 SCISSOR PIVOT BLOCK 4
2 9650701012 NYLOCK NUT, LOW 1/4-20 ZPS 2
3 9640120601 WASHER #12 FLAT ZPS 4
4 9611000936 MACH SCREW 1/4-20 x 2-1/4 SBHCS ANS 2
5 9540614002 PIVOT POST 2
6 9612000914 MACH SCREW 1/4-20 x 7/8 FHS ANS 2
7 9290202001 CASTER 2-3/8” - PLASTIC 2
8 900073 OUTSIDE DIAGONAL ASSY BOOSTER 1
