KID KART PARTS MANUAL PAGE 1.14 MAY 2007 A.R.T. GROUP

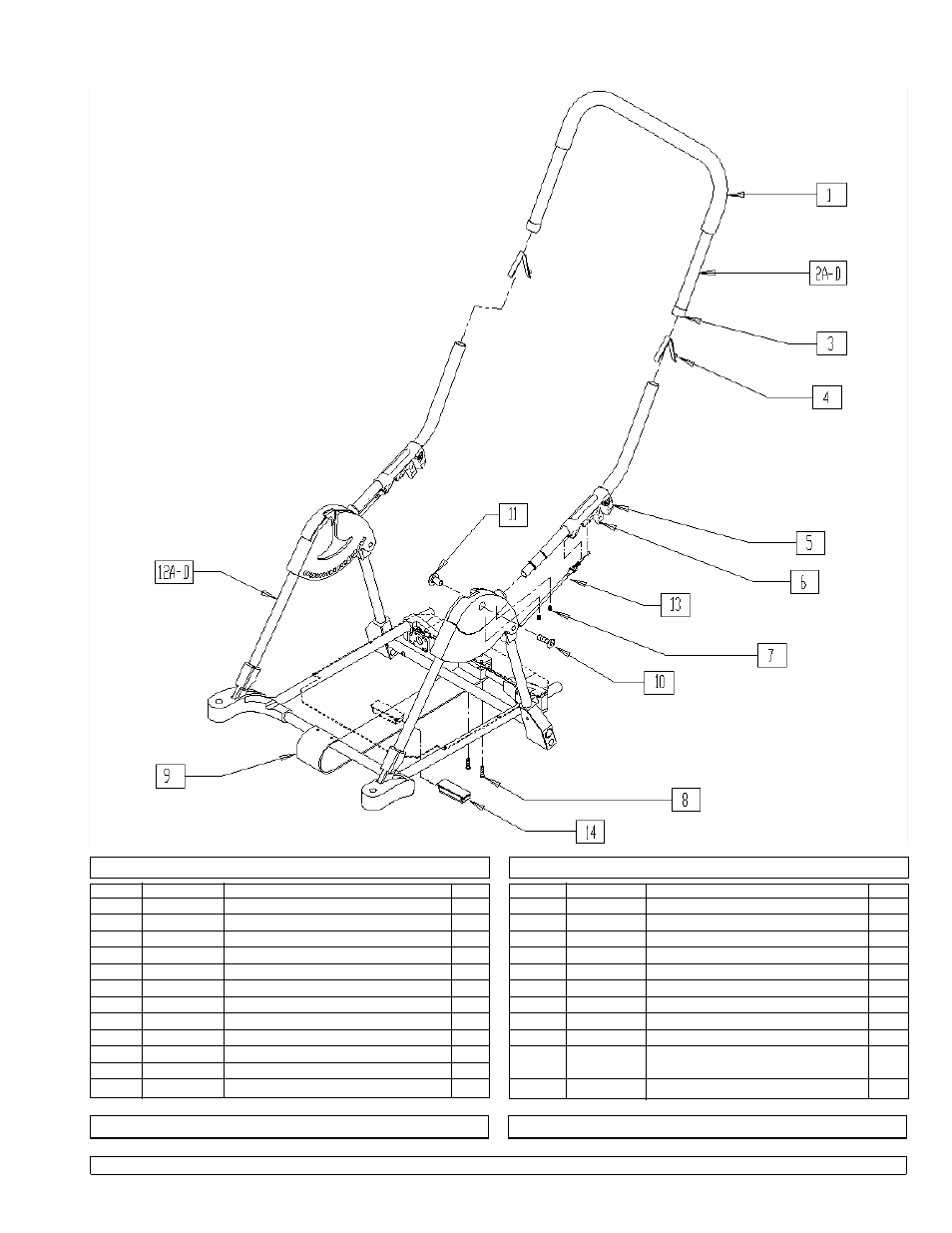

FRAME and PUSH HANDLE
ITEM NUMBER DESCRIPTION QTY
11 9540608001 HANDLEBAR PIVOT NUT 2
1-3(A) 9180110051 UPPER HANDLEBAR KIT - PURPLE
1-3(B) 9180110071 UPPER HANDLEBAR KIT - PINK
1-3(C) 102704 UPPER HANDLEBAR KIT - SILVER
1-3(D) 102699 UPPER HANDLEBAR KIT - BLACK
1-12(A) 9151324101 FRAME ASSY - PURPLE - XP
1-12(B) 9151325101 FRAME ASSY - PINK - XP
1-12(C) 102687 FRAME ASSY - SILVER - XP
1-12(D) 102683 FRAME ASSY - BLACK - XP
13 102717 FRAME CONTROL CABLE - XP 2
102716** FRAME CONTROL CABLE PKG w/HDWR
(CABLES, CLIPS, & SCREWS)
14 103940 TRAY CABLE CLIP - XP 1
ITEM NUMBER DESCRIPTION QTY
1 9394107501 GRIP HANDLE - 3/4” x 21” - BLACK 1
2A* 9451343851 HANDLEBAR TUBE - PURPLE - XP 1
2B* 9451343871 HANDLEBAR TUBE - PINK - XP 1
2C* 102708 HANDLEBAR TUBE - SILVER - XP 1
2D* 102707 HANDLEBAR TUBE - BLACK - XP 1
3 563065 INSERT (SLEEVE) 3/4” - PLASTIC 2
4 9691121411 SNAP BUTTON - SINGLE, B-141 2
5 102713 HANDLEBAR RELEASE MOUNT 2
6 102712 HANDLEBAR RELEASE TRIGGER 2
7 9627021604 SETSCREW 1/4-20 x 1/4 CPNT SSS ANS 2
8 9611000608 MACH SCREW #10-24 x 1/2 SBHCS ZPS 2
9 9559210201 FOLD RETAINING GUIDE 1
10 9612000908 MACH SCREW 1/4-20 x 1/2 FHS ZPS 2
XPRS0X15
* Replacement part color may differ slightly from original color
Effective for models beginning May 2007, having a serial
number ending with the letter ‘A’... e.g. xxxxxx07122A
** For more detail on part 102716 see Technical Bulletins
