KID KART PARTS MANUAL
PAGE 1.6
MAY 2007
A.R.T. GROUP

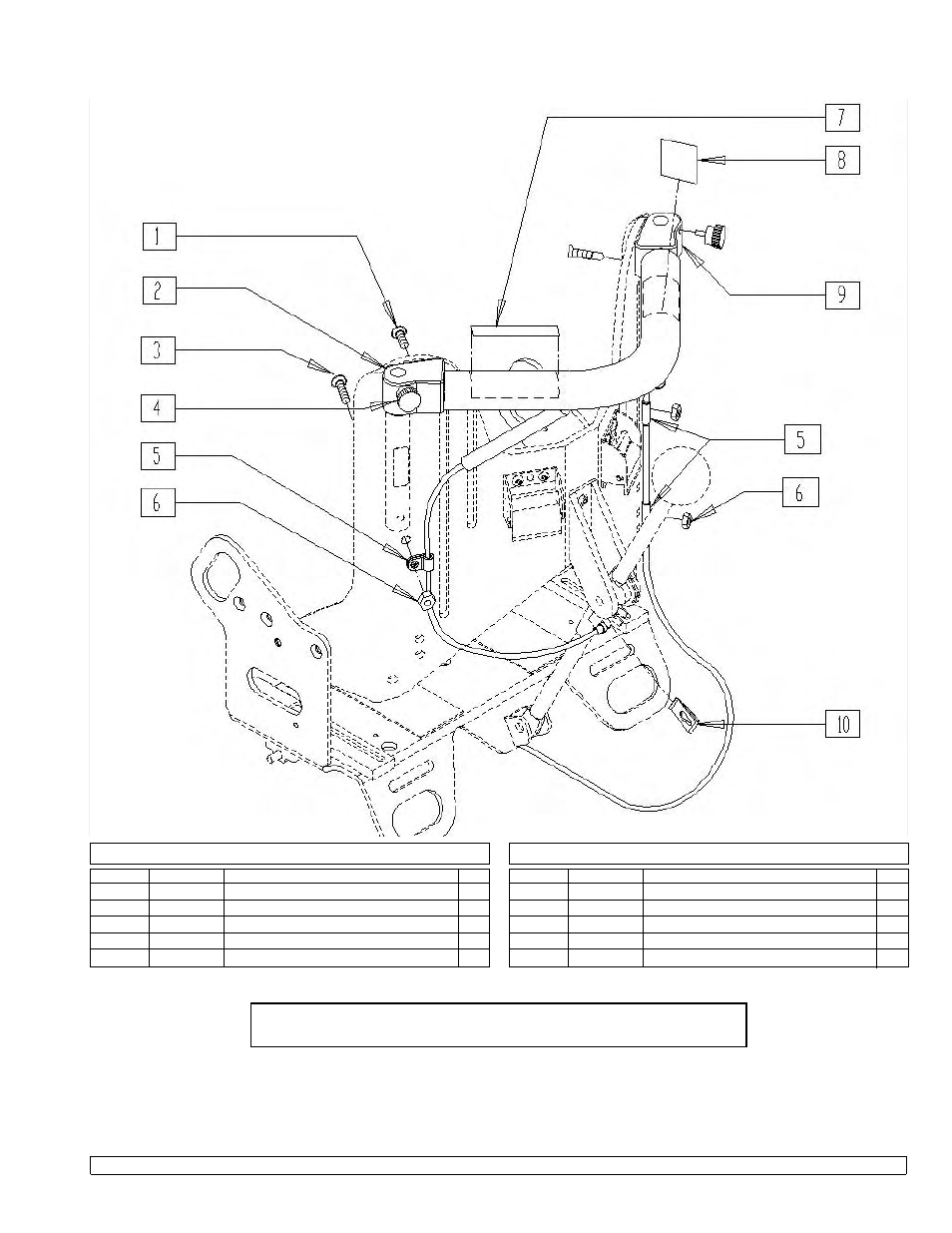

REPLACEMENT HANDLE / CABLE ASSEMBLY
for TILT-ONLY and for TILT / RECLINE OPTION
XPRS0X52
ITEM
NUMBER
DESCRIPTION
QTY
7
102777
RECLINE FUNCTION LABEL
1
8
102776
TILT FUNCTION LABEL
1
9
9320201013
SHELL HANDLE BLOCK - R - XP
1
10
9699110106
RECLINE CABLE RETENTION CLIP
1
ASSY
920688
HANDLE ASSY w/CABLE - TILT-ONLY
ASSY
920689
HANDLE ASSY w/CABLE(S) - TILT/RECLINE
ITEM
NUMBER
DESCRIPTION
QTY
1
226347
SCREW #10-16 x 1-1/4 FHP, SELF-TAP ZPS 2
2
9320201012
SHELL HANDLE BLOCK - L - XP
1
3
9612120610
MACH SCREW #10-24 x 5/8 FHP ANS
4
4
9761100002
KNOB #10-24 x 1/2 MALE - BLACK
2
5
9696918001
CABLE MOUNT 3/16”
4
6
9650501010
NYLOCK NUT #10-24 ZPS
4
NOTE: replacement Recline option Handle Assy cannot be ordered separately;
must include Tilt option Handle Assy.
