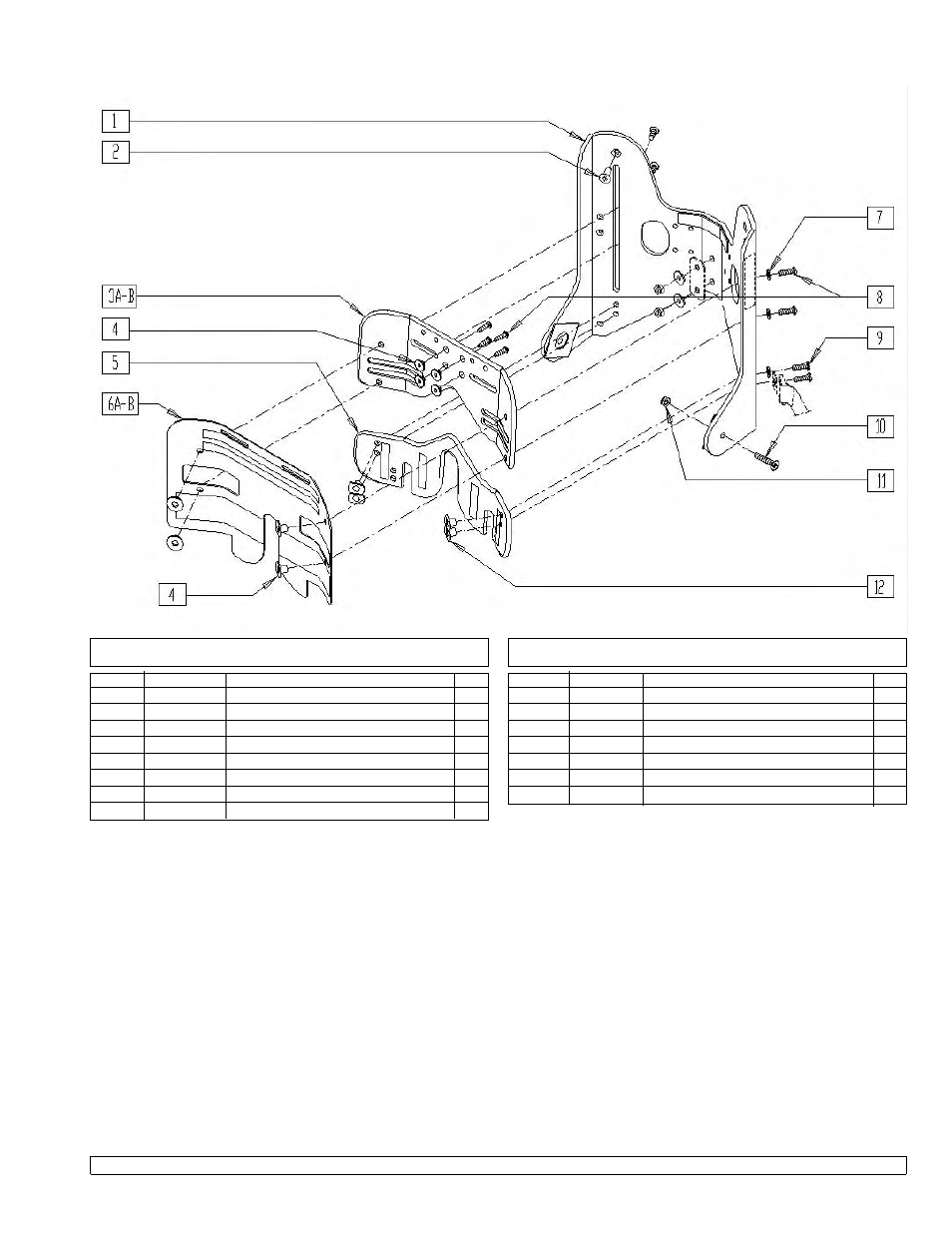

KID KART PARTS MANUAL PAGE 1.2 MAY 2007 A.R.T. GROUP
INSIDE BACK / SHELL
XPRS0X03
ITEM NUMBER DESCRIPTION QTY
8 9611000912 MACH SCREW 1/4-20 x 3/4 SBHCS ANS 8
9 9611000910 MACH SCREW 1/4-20 x 5/8 SBHCS ANS 4
10 9612000920 MACH SCREW 1/4-20 x 1-1/4 PFHS ANS 2
11 9650701012 NYLOCK NUT, LOW 1/4-20 ZPS 2
12 9683120104 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPS 4
1-12(A) 920671 BACK SHELL - STANDARD
1-12(B) 920672 BACK SHELL - EXTENDED
920670 VELCRO ® KIT 1
ITEM NUMBER DESCRIPTION QTY
1 9555201301 OUTER SEAT BACK 1
2 226347 SMS #10-16 x 1-1/4 FHP, SELF-TAP ZPS 2
3A 9554130501 INNER BACK - UPPER - STANDARD 1
3B 9554130802 INNER BACK - UPPER - EXTENDED 1
4 9681120106 T-NUT 1/4-20 x 3/8 ROUND ZPS 2
5 9554130502 INNER BACK - LOWER 1
6A 9554130801 INNER BACK OVERLAY - STANDARD 1
6B 9554131102 INNER BACK OVERLAY - EXTENDED 1
7 262110-QU WASHER 1/4” FLAT THIN ANS 6
Effective for models prior to May 2007, having a serial
number without a letter at the end... e.g. xxxxxx07177
