KID KART PARTS MANUAL
PAGE 1.10
MAY 2007
A.R.T. GROUP

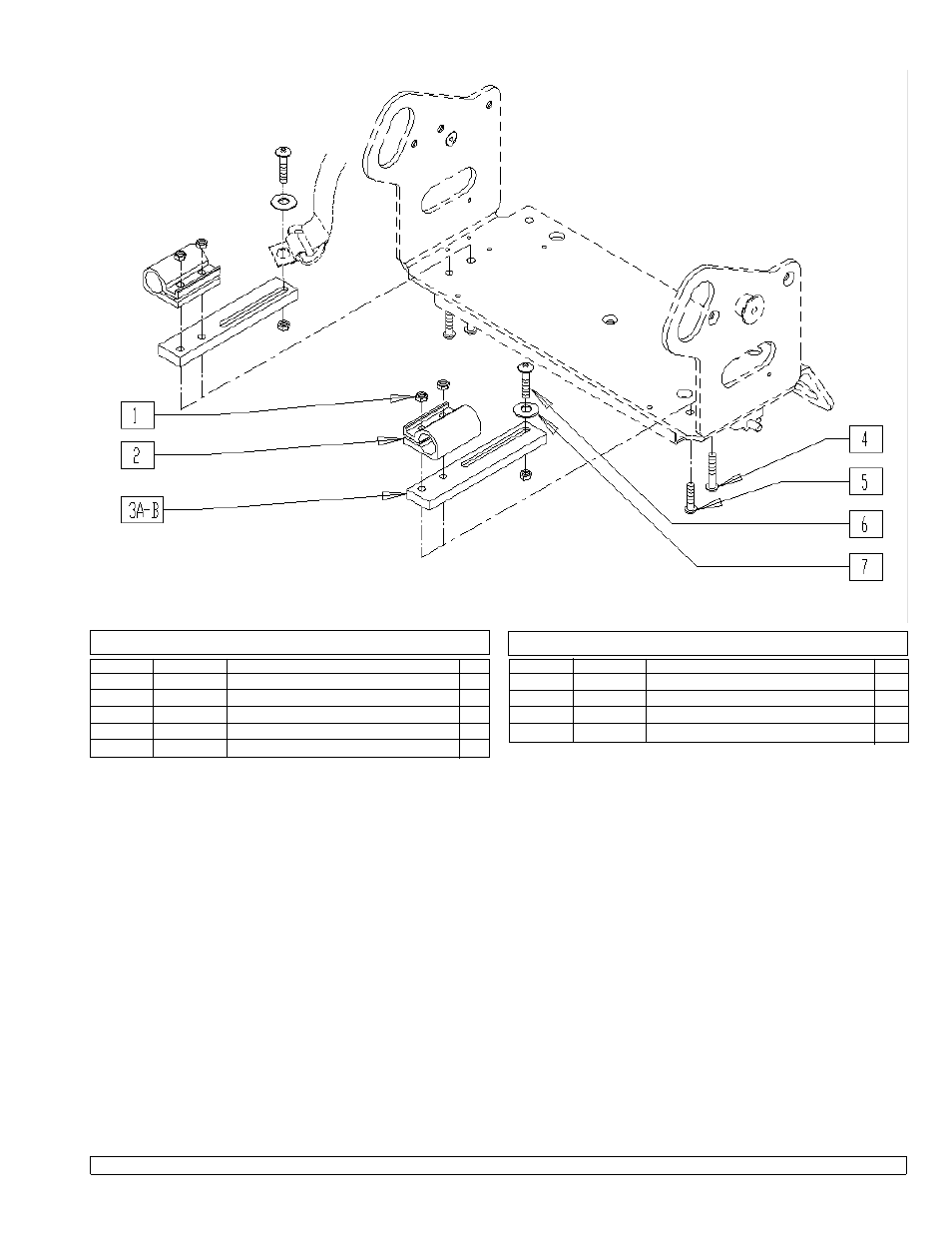

RADIAL CLAMP ASSEMBLY FOR FOOTBED
XPRS0X16
ITEM
NUMBER
DESCRIPTION
QTY
6
9611000906 MACH SCREW 1/4-20 x 3/8 SBHCS ZPS
2
7
262110-QU
WASHER 1/4” FLAT THIN ZPS
2
1-3A, 5
920683
RADIAL CLAMP ASSEMBLY - L
1-3B, 5
920684
RADIAL CLAMP ASSEMBLY - R
1-3A/B, 5
920685
RADIAL CLAMP ASSEMBLY (L / R)
ITEM
NUMBER
DESCRIPTION
QTY
1
9650701012
NYLOCK NUT, LOW 1/4-20 ZPS
6
2
550350
RADIAL CLAMP - ADJ FOOT PLATE- 3/4”
2
3A
9530201006
SEAT TUBE SPACER - L - XP
1
3B
9530201007
SEAT TUBE SPACER - R - XP
1
4
9611000924 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANS 2
5
9611000920 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANS 2
