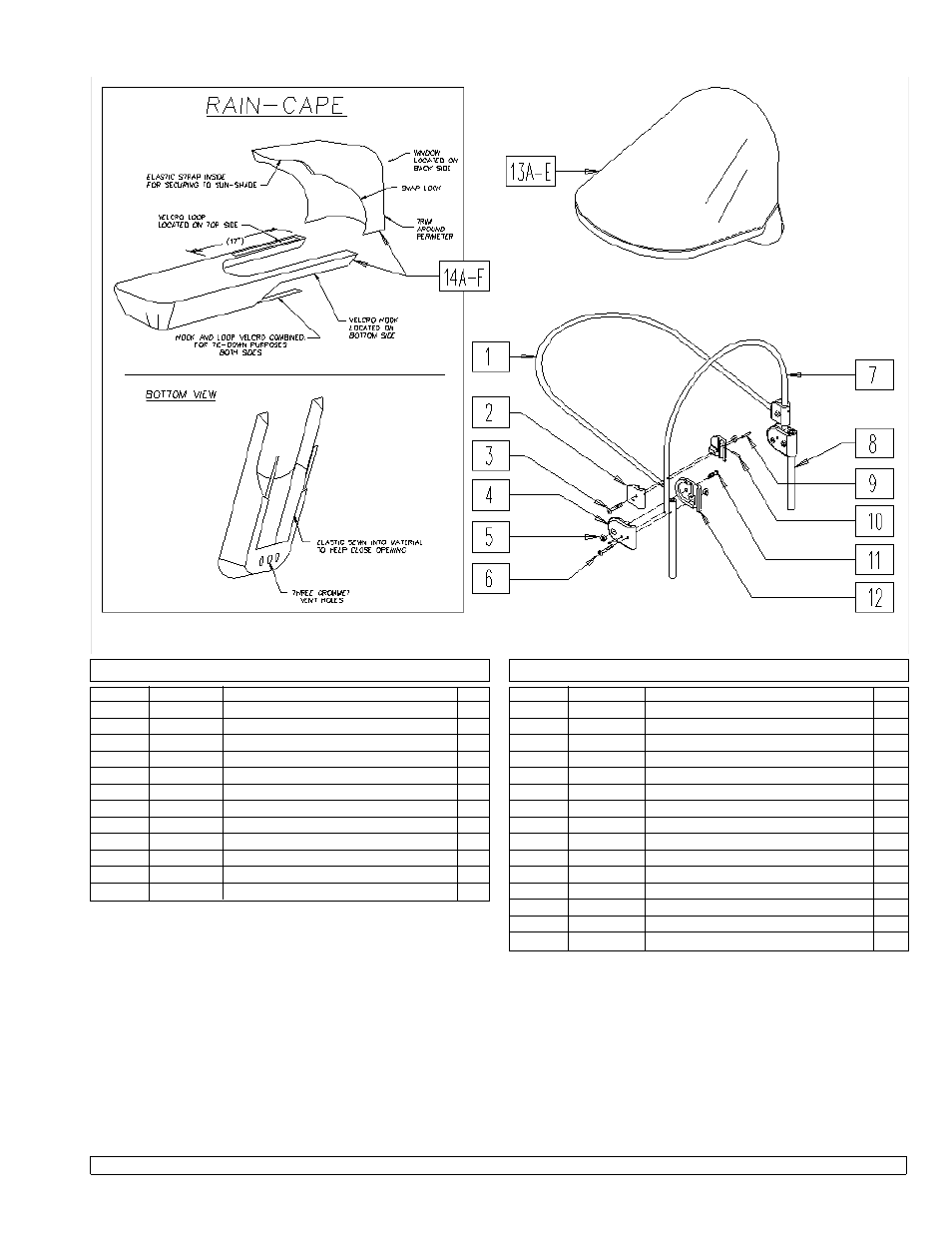

KID KART PARTS MANUAL
PAGE 1.24
MAY 2007
A.R.T. GROUP
SUNSHADE and RAINCAPE
XPRS0X11
ITEM
NUMBER
DESCRIPTION
QTY
13A
9170317001 SUNSHADE COVER - JAZZ (PATTERN)
1
13B
9170318001 SUNSHADE COVER - CLASSIC (NAVY)
1
13C
9170306003 SUNSHADE COVER - ORIGINAL (TEAL)
1
13D
102764
SUNSHADE COVER - RED/BLACK
1
13E
102768
SUNSHADE COVER - KHAKI/SMOKE
1
1-13A
9180112001
SUNSHADE ASSY - JAZZ (PATTERN)
1-13B
9180112002
SUNSHADE ASSY - CLASSIC (NAVY)
1-13C
9180112003
SUNSHADE ASSY - ORIGINAL (TEAL)
1-13D
103804
SUNSHADE ASSY - RED/BLACK
1-13E
103805
SUNSHADE ASSY - KHAKI/SMOKE
14A
751004
RAIN CAPE, XP - JAZZ (PATTERN)
1
14B
751005
RAIN CAPE, XP - CLASSIC (NAVY)
1
14C
751006
RAIN CAPE, XP - ORIGINAL (TEAL)
1
14D
102901
RAIN CAPE, XP - RED/BLACK
1
14E
102902
RAIN CAPE, XP - KHAKI/SMOKE
1
14F
9170319001
RAIN CAPE, XP - GENERIC
1
ITEM
NUMBER
DESCRIPTION
QTY
1
9470601701
SUNSHADE ROD - FRONT
1
2
9329532001
SUNSHADE FOLD BLOCK (PR)
1
3
9611000616 MACH SCREW #10-24 x 1 SBHCS ANS
2
4
9320302004
SUNSHADE ANGLE ADJ BLOCK - L
1
5
9650501010
NYLOCK NUT #10-24 ZPS
4
6
9611000616 MACH SCREW #10-24 x 1-1/8 SBHCS ANS 2
7
9470601201
SUNSHADE ROD - REAR
1
8
9454067501
SUNSHADE MOUNTING TUBE
2
9
9697212141
SPRING PIN 1/8” x 3/4”
6
10
9697212101
SPRING PIN 1/8” x 5/8”
2
11
9611000614 MACH SCREW #10-24 x 7/8 SBHCS ANS
2
12
9320302003
SUNSHADE ANGLE ADJ BLOCK - R
1
1-12
9180112004
SUNSHADE HARDWARE ASSEMBLY
